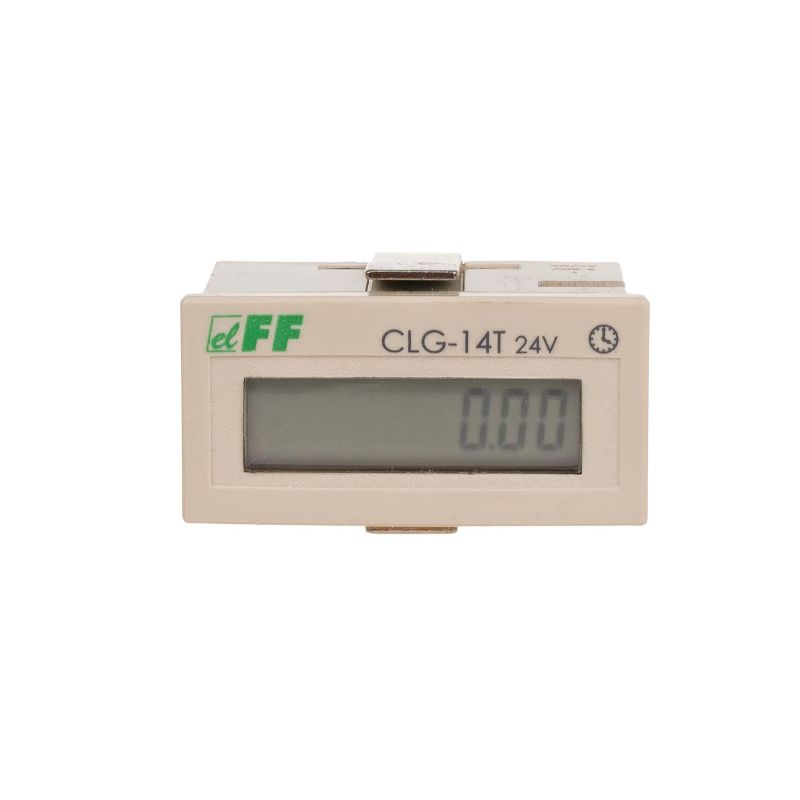

Working time meter CLG-14T 24 V

Working time meter CLG-14T 24 V

CLG-14T-24V, 5908312598084

Product description

Electronic one-way meter. 5 ÷ 60 V AC/DC. Without the RESET button on the front.
Working time meters are intended for counting the number of working hours in automatic production processes or the number of device working hours, which, due to safety requirements and operation efficiency have limited overhaul life, i.e operational capacity that may not be exceeded (e.g. advanced power units, special radioactive lamps, etc.).

CLG-13T and CLG-14T meters are an electronic, one-way meters, enabling the counting of working hours in 0 to 999999,59 range (six digits + one decimal). There are equipped with RESET input for the connection of external button and RESET button in front (with locking), enabling counter state reset for any value.

Type work time counter
Power supply voltage internal battery
Communication interface NONE
Display 8 digits / h: 6,7 mm
Accuracy of indications 1 min.
Battery life 10 years
The voltage of the counting input 5÷60 V AC/DC
The maximum value counted 999999,59
Terminal pluggable terminal blocks 1,5 mm²
Tightening torque 0,4 Nm
Working temperature -10÷40°C
Dimensions 48 mm × 24 mm × 52 mm
Mounting hole 45 mm ×23 mm
Assembly Front of control cabinet
Ingress Protection Marking IP20
