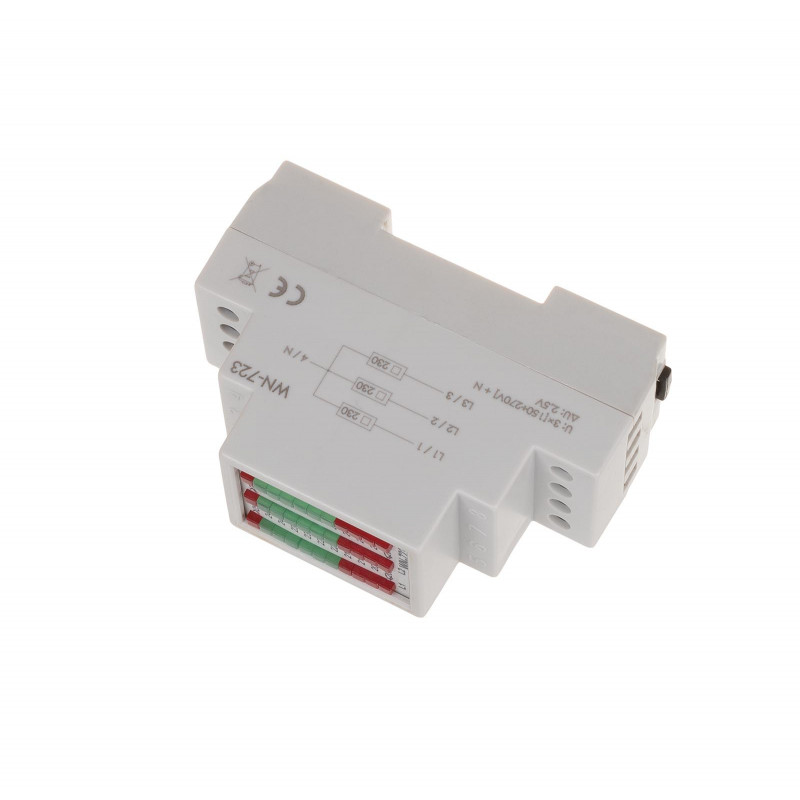

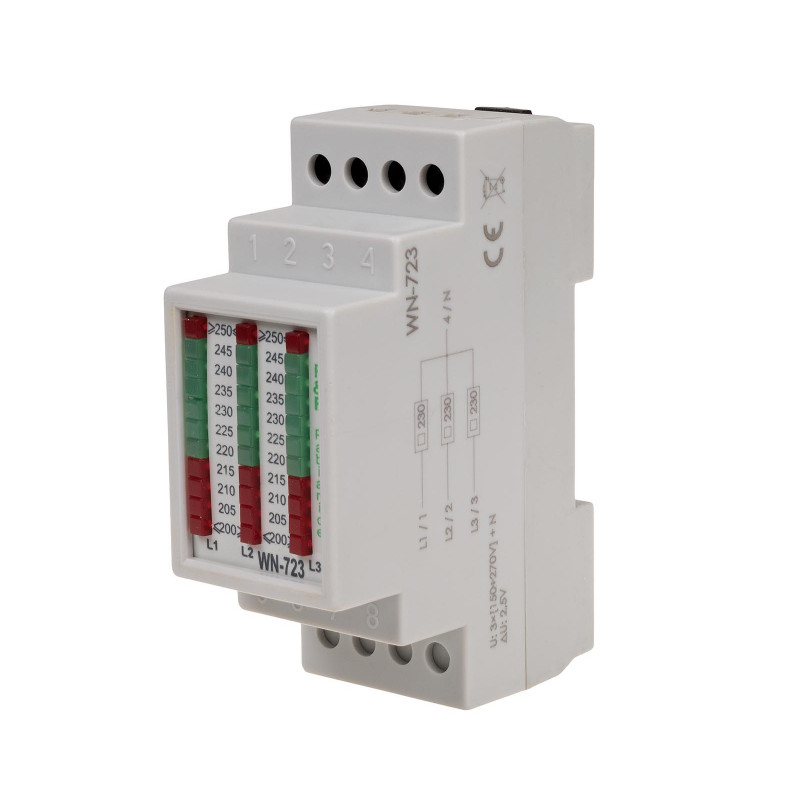

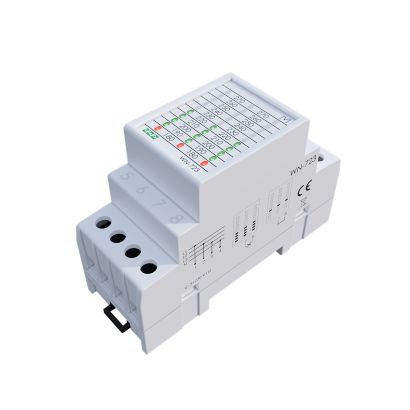

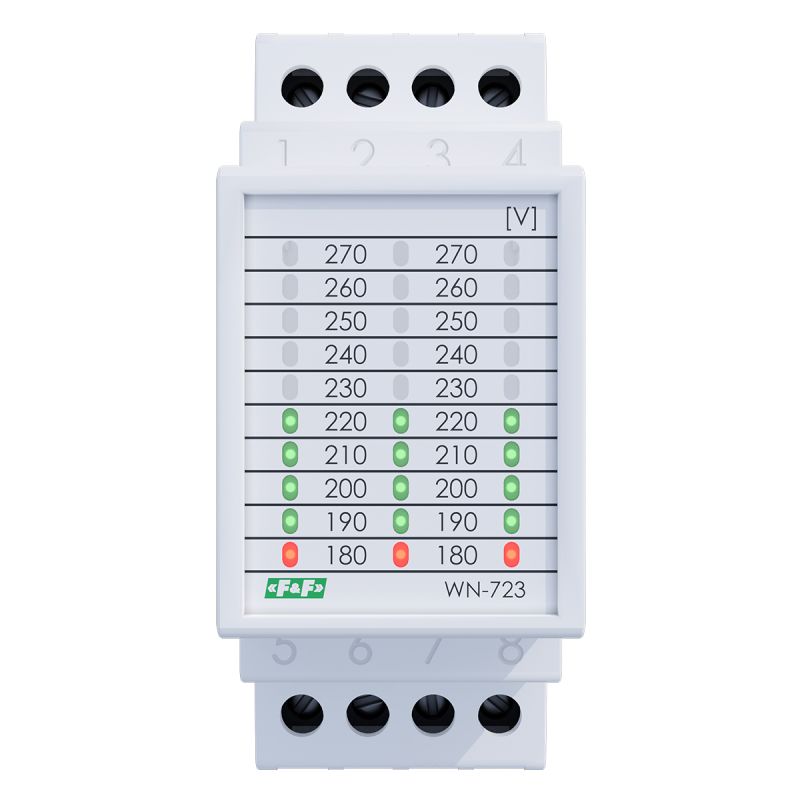

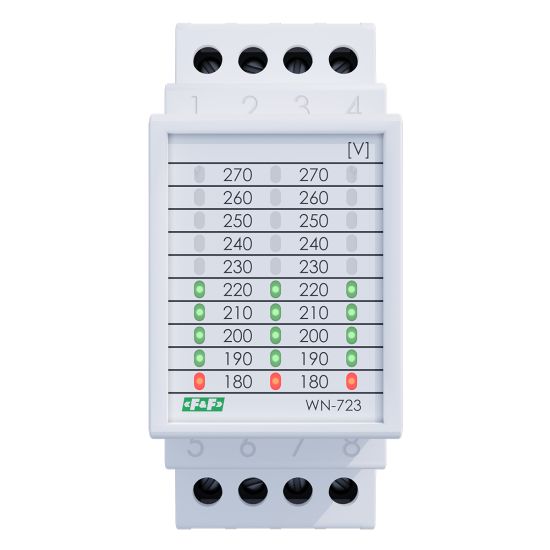

Voltage indicator WN-723

Voltage indicator WN-723

WN-723, 5908312596066

Product description

Led line type. Three-phases indicator.
Voltage indicator WN-723 is used for continuous measurement of three-phase power.

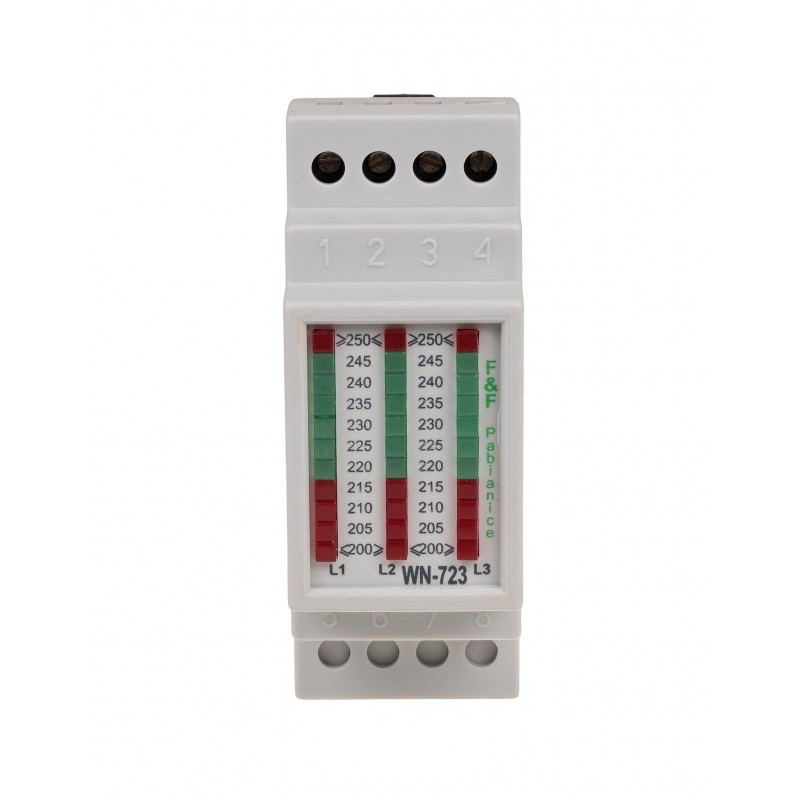

Voltage range indicated for each phase ranged from 205V to 245V with an accuracy 2,5V. The illumination of LED indicates the voltage is described at its height. If two light LED voltage value is the average of the values described in their heights. The value of the voltage tolerance range (215V to 245V) is indicated LED luminous green, the other values are indicated in LED red light. Voltage equal to or higher than 250V is indicated highest luminous LED red ≥. Voltage equal to or less than 200V is indicated lowest luminous LED red ≤.

Typethree-phase voltmeter
Power supply voltage3 x 250 V + N
Voltage indicator3 x (11 x LED)
Range of indications205÷245 V
Scale5 V
Reading accuracy2,5 V
Terminalpluggable terminal blocks 4,0 mm²
Tightening torque0,5 Nm
Power consumption0,8 W
Working temperature-25 ÷ 50 °C
Dimensions2 modules (35 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20
Schemat podłączenia WN-723
