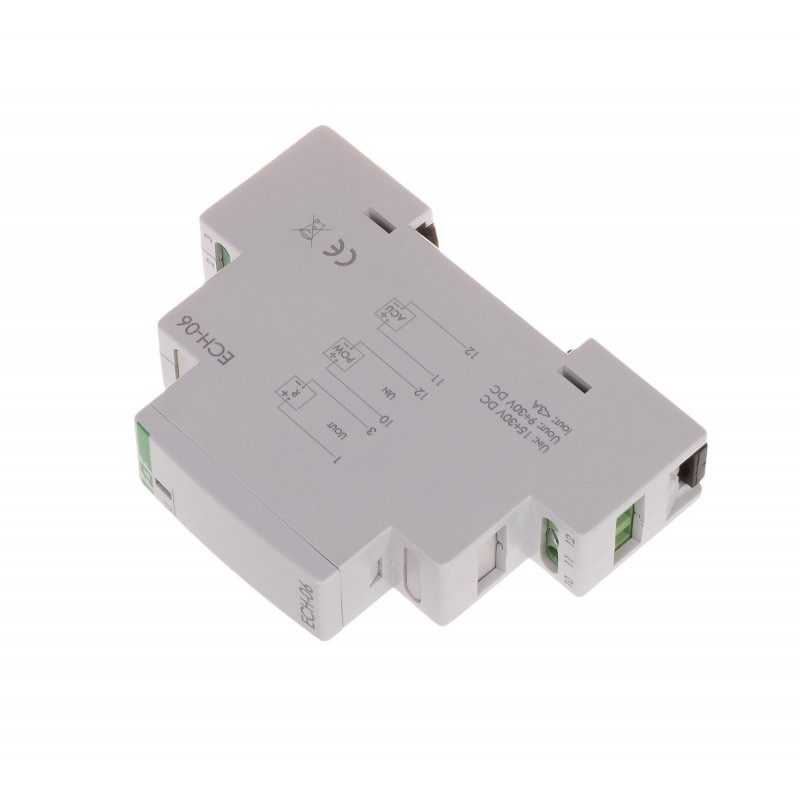

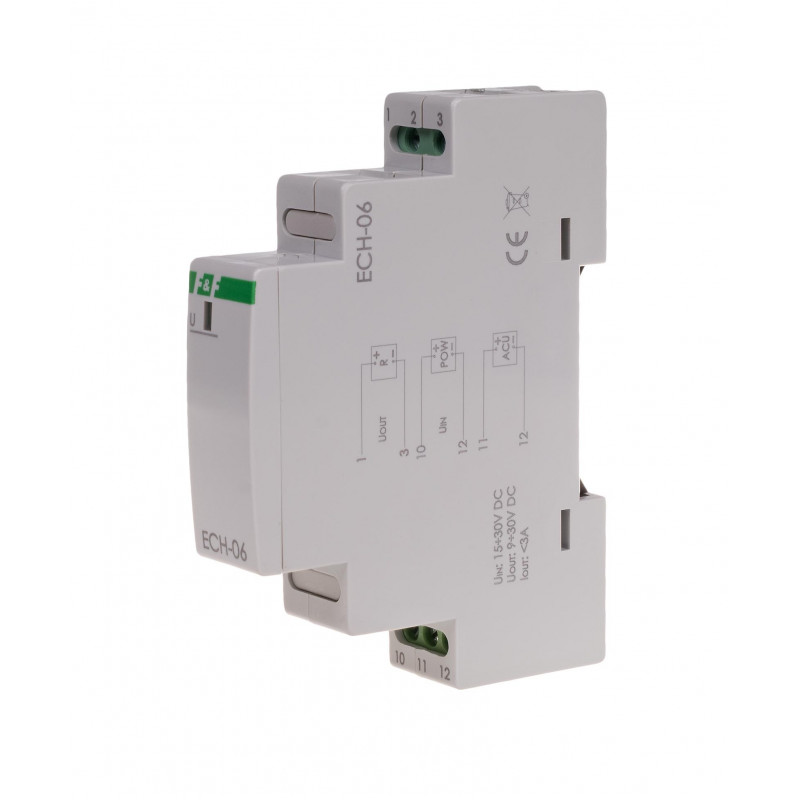

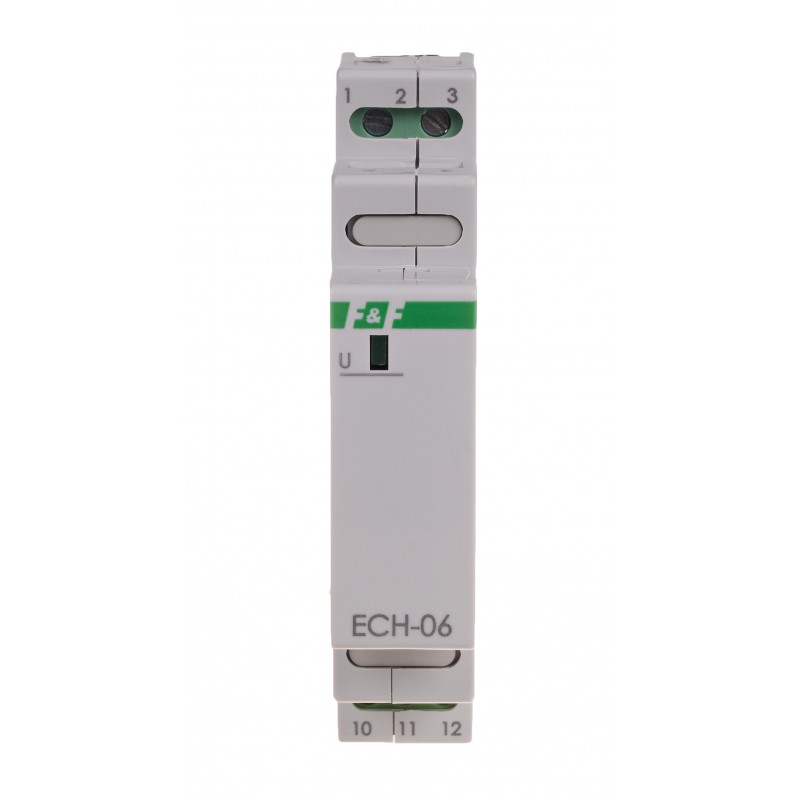

Reserve power module ECH-06

Reserve power module ECH-06

MAX-ECH-06, 5908312595090

Product description

With battery charger 1.3÷7.2Ah.
The ECH-06 module along with a external gel battery with nominal voltage of 12V is backup power system for receivers with a supply voltage in range of  9÷30V DC.

The module performs the continuous surveillance of the battery and re-charges it automatically when the presence of the main supply voltage. In the case of main power failure or a decline in its value below the battery voltage of the receiver is powered from the battery. With the battery voltage of approx. 10.5V, the module automatically cuts off the power supply (pro-tection against damaging the battery).

Typepower reserve module
Supply / charging voltage Uin18÷30 V DC
The output voltage Uout (Uin-0,5 V DC / Uacu-0,5 V DC)
Load current of the Uout output3:00 AM
Battery capacity supported1,3÷7,2 Ah
Maximum battery voltage13,8 V DC
Charging current0,35 A
Power cut-off threshold10,5 V DC
Own power consumption1 W
Terminalpluggable terminal blocks 2,5 mm²
Tightening torque0,4 Nm
Working temperature-10÷40°C
Dimensions1 module (18 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20
Connection scheme

Cooling gap
