Analog outputs module rH-AO3

Analog outputs module rH-AO3


Analog outputs module of the F&Home RADIO system.

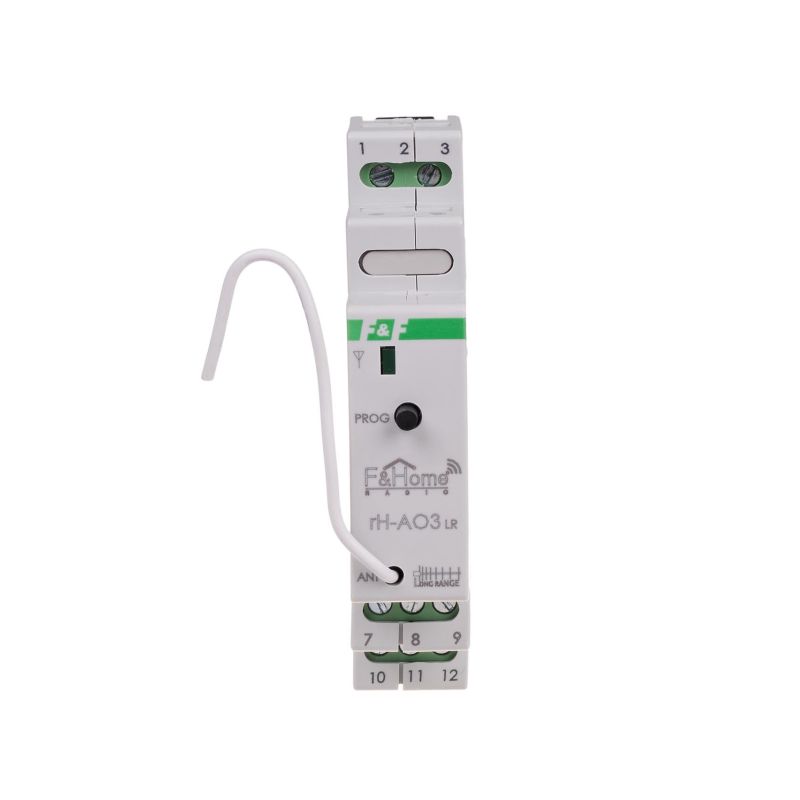

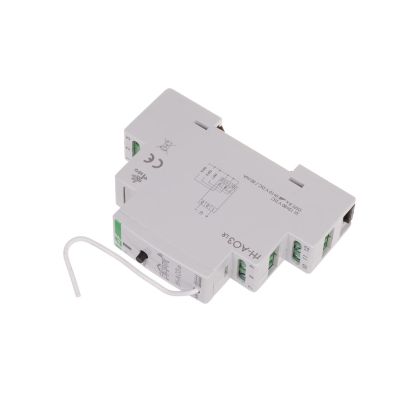

The rH-AO3 LR module is a three-channel transmitter of a 0 - 10 V voltage signal. Communication with the server is done by radio. The regulation is made on the basis of voltage change on the output in the range of 0 to 10 V. The rH-AO3 LR module is particularly suitable for controlling lights, fans and other receivers adapted to voltage control.

The rH-AO3 LR module is represented by an object, which consist of three LIGHT-type channels that read information about power and activation time from four identical inputs. The algorithm determines the maximum power read from all inputs, separately for each channel, and together with switch-on time controls the connected receivers. Feedback about the actual level of load control is applied on the “Confirmed PWM status, channel 1, 2, 3”, separately for each channel.

rH-AO3 manual (119.78k)
