FW-R2P-NN relay for traditional electrical installations

FW-R2P-NN, 5902431672984

Product description

Two-channel relay without "N" wire
Designed for radio control of lighting in traditional, already existing, electrical installations.

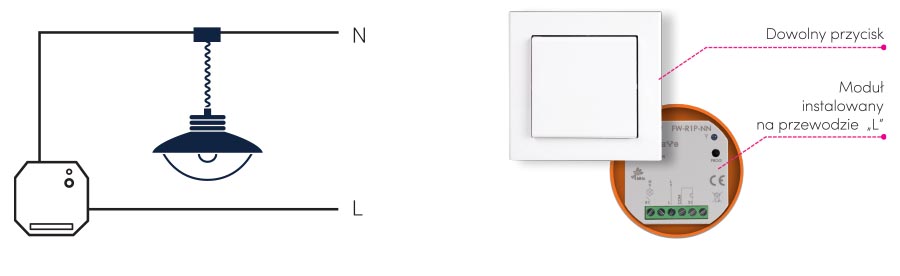

Old and traditionally operated electrical installations do not mean giving up modern solutions. Multifunctional radio relays, one-channel FW-R1P-NN and two-channel FW-R2P-NN, are mounted in a box under the button. The relays are connected in series with the controlled load, which means that their operation does not require leading the neutral wire to the switch box.

Moduł przekaźnikowy do tradycyjnych instalacji bez przewodu N

Relays FW-R1P-NN and FW-R2P-NN cooperate with remote control transmitters and local buttons. They allow you to control receivers with a total power from 5 to 1000W (**)

Performed functions:
• Bistable
• Timed - from 1 second to 48 hours.
• Monostable
• Enable - centralized control
• Turn off - centralized control

The design of the receivers allows each receiver channel to be associated with 32 different transmitters.
Local control - the relay can be controlled with any monostable button (e.g. bell button). Local inputs can be assigned to any relay function.

(**) In case of work with low-power LED lamps, it is recommended to additionally use FW-BYPASS-NN connected in parallel to the controlled lamp.

F&Wave-simple radio control also for "old" installations



The F&Wave radio remote control system is a solution for anyone who is looking for uncomplicated amenities of everyday life. Thanks to the relays without the "N" wire, you can remotely control the lighting without the need to lay additional electrical wires - just install the relay in the box under the "old" installation button. In addition to lighting, the F & Wave radio system enables remote control of roller shutters, awnings, shutters and entrance gates.

Power supply voltage85÷265 V AC/DC
Number of channels2
Control inputs2
Load rating (AC-1)2 x4 A / 230 V
The executive elementrelay
Radio frequency868 MHz
Terminalpluggable terminal blocks 2,5 mm²
Tightening torque0,4 Nm
Power consumption waking / working0,25 W / 0,6 W
Working temperature-25 ÷ 65°C
Dimensions49×49×20 mm
Assemblyin a flush-mounted box Ø60
Ingress Protection MarkingIP20
