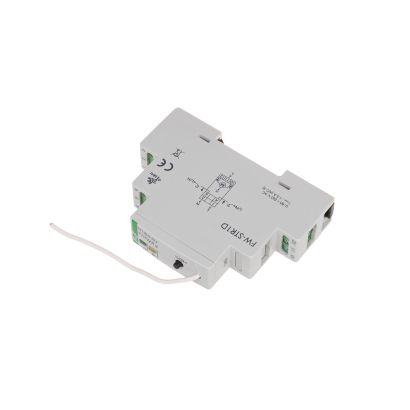

Roller blind controller FW-STR1D

Roller blind controller FW-STR1D

FW-STR1D

Product description

F&Wave is an easy-to-install and easy-to-use wireless control system. It allows remote control of lighting, smooth regulation of brightness, control of blinds, blinds, awnings, entrance gates and garage doors and other devices in the home.
On rail 35mm.


Features of the module
* Controller of the roller-blinds with AC motors;
* Cooperation with remote control transmitters of the F&Wave system;
* The ability to control from up to 8 transmitters;
* Two inputs for local control - the ability to directly control the relay using any
   monostable button (for example: bell button);
* Two output contacts for both directions of the roller-blind movement with a load
   capacity of 1.5 A (AC-3);
* Compact enclosure - takes only one field in the switchboard;
* Retransmission of commands from the transmitter - the ability to increase the range of
   the remote control;
* Low power consumption - low operating cost;
* Built-in electronic thermal protection to prevent damage in case of excessive load of the
   relay;
* Electric lock to prevent power supply switching on on both windings of the motor.


Operating range
In an open space without any interfering factors the range of the devices controlled by radio fluctuates within the limits of 100 m. The range can be improved by direct retransmission of modules located in mutual coverage area.


Devices of the F&Wave system

Transmitters Receivers Box¬†√ė60
DIN rail
  flush-mounted Single relay      FW-R1P      FW-R1D
     FW-RC5 Double relay      FW-R2P      FW-R2D
 remote controls Universal dimmer      FW-D1P      FW-D1D
     FW-RC4 Roller-blind controller      FW-STR1P      FW-STR1D
     FW-RC10 Two-channel LED controller      FW-LED2P      FW-LED2D

Power supply voltage 100√∑265 V AC
Number of channels 1
Function blind controller
Control inputs 1
Control signal L lub N
Load rating (AC-1) 8:00 AM
Output rating (AC-3) 1,5 A
The executive element relay
Radio frequency 868 MHz
Terminal pluggable terminal blocks 2,5 mm²
Tightening torque 0,4 Nm
Power consumption waking / working 0,25 W / 1 W
Working temperature -25 √∑ 65¬įC
Dimensions 1 module (18 mm)
Assembly on rail 35 mm
Ingress Protection Marking IP20
