FW-WS2

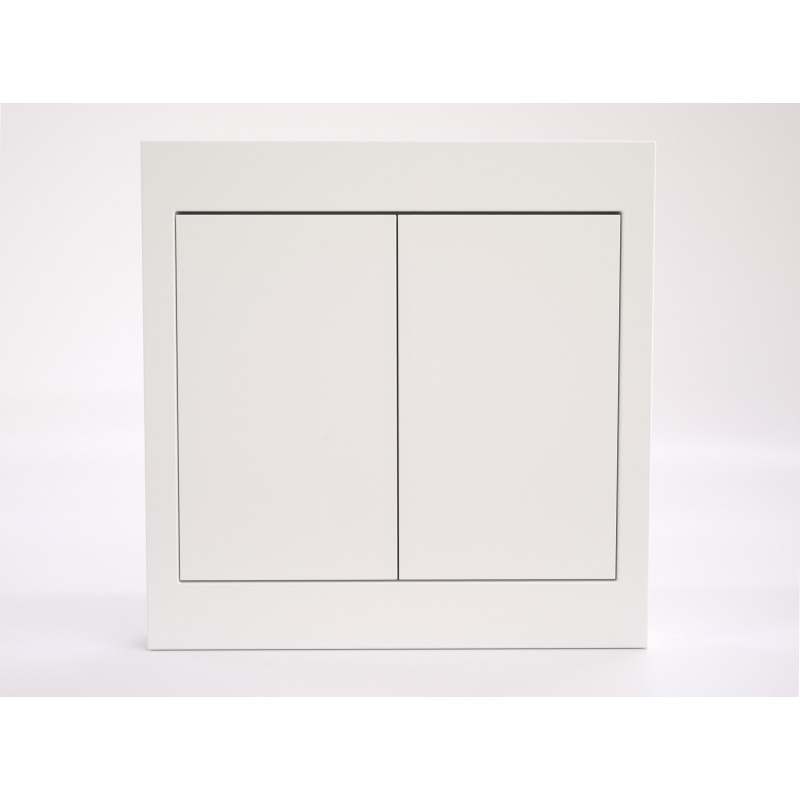

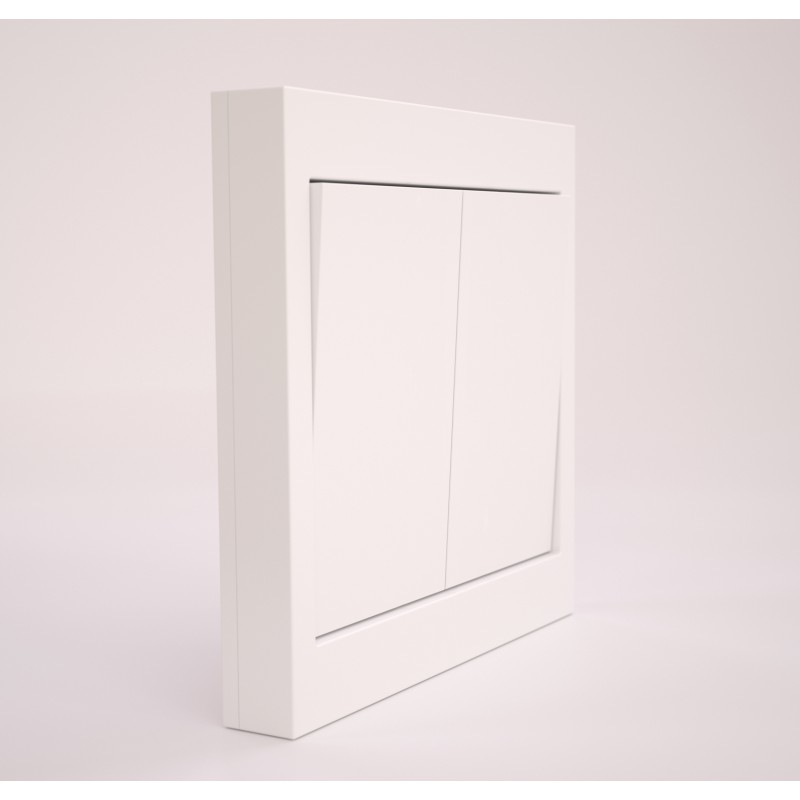

Radio wall switch 2-button.

F&Wave is a family of wireless devices controlled by radio with a range of up to 100 meters*. The receivers are available in either a DIN-rail mounting version (housing 1S) or a ├ś60 flush-mounted version. The transmitters are available as handheld remote controllers or as a flush-mounted version. The receivers relay control signals. The device that receives a control signal from the transmitter will automatically send it forward, which allows to increase the range of the remote control.


Features of the module
* 2-button remote control transmitter;
* works with F&Wave remote control receivers;
* ability to control any number of receivers;
* on/off (bi-stable switch) with receivers: FW-R1P, FW-R1D, FW-R2P, FW-R2D, FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;
* raise/lower the roller blind with receivers FW-STR1P, FW-STR1D;
* dim/brighten the lighting with receivers FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;
* ability to change the configuration of the first button to the ON function - always switch on the paired receivers and/or lift the roller blind;
* ability to change the configuration of the second button to the OFF function - always switch off the paired receivers and/or lower the roller blind;
* installation does not require a flush-mounted box.

Operating range
In an open space without any interfering factors the range of the devices controlled by radio fluctuates within the limits of 100 m. The range can be improved by direct retransmission of modules located in mutual coverage area.

F&Wave system devices

TransmittersReceivers├ś60 box
 DIN rail
flush-mountedSingle relay     FW-R1P     FW-R1D
     FW-RC4-AC, FW-RC5Double relay     FW-R2P     FW-R2D
remote controlsUniwersal dimmer     FW-D1P     FW-D1D
     FW-RC4, FW-RC10Roller blind controller     FW-STR1P     FW-STR1D
wall buttonsDual-channel LED controller     FW-LED2P     FW-LED2D
     FW-WS1, FW-WS2, FW-WS3

Power supply voltage3 V
Functiontransmitter
Radio frequency868 MHz
Battery type2032 (lithium)
Working temperature5├Ě50┬░C
dimensions86 mm x 86 mm x 15 mm
