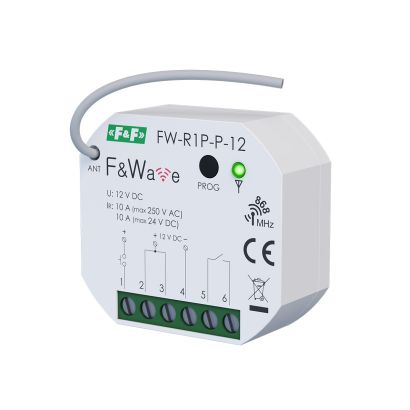

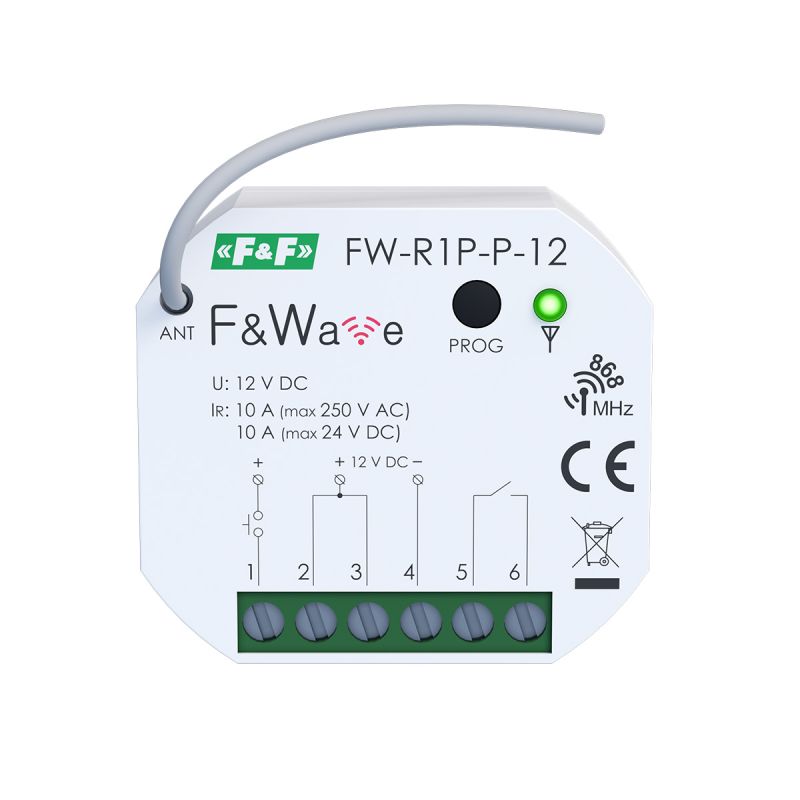

Radio multifunctional relay FW-R1P-P-12

Features of the FW-R1P-P-12 multifunctional radio relay

• Operation with F&Wave radio remote control transmitters.
• Single multifunction relay. Functions performed:

• Bistable - the first press of the button switches the relay on, the second press switches it off.
• Timed - pressing the button activates the relay for a preset time. Time setting possible from 1 second to 48 hours. Pressing the button when the relay is switched on starts the timing from the beginning.
• Monostable - the relay remains on as long as the button on the remote control is pressed.
• On - pressing the button switches the relay on
• Off - pressing the button switches the relay off.

• The function of the relay is linked to the transmitter button. Each button can perform a different function.
• Possibility of control from up to 32 transmitters.
• Local controls - possibility of direct control of the relay using any monostable button (e.g. bell button). The local input can be assigned any relay function.
• Group programming of transmitters. If several buttons have the same function, they can be set in one programming cycle.
• Low voltage 12V DC power supply.
• Separated NO output contact rated at 8 A (AC-1).
• Small housing size.
• Screw terminals for easy installation in a flush-mounted box.
• Retransmission of signals from the transmitter - possibility to extend the range of the remote control.
• Low power consumption - low running costs.
• Built-in electronic thermal protection to prevent damage if the relay is overloaded.

F&Wave radio control system

This is for everyone who wants to increase their living comfort.
F&Wave is an easy to install and extremely simple to use system for wireless radio control of everyday appliances. It allows remote control of lighting, stepless regulation of lighting brightness, control of roller blinds, shutters, awnings, entrance and garage gates and other home appliances.
Thanks to the simplicity of installation and easy configuration of system components, F&Wave fits perfectly into the DIY concept. At the same time, it is inexpensive and efficient.

A unique feature of the F&Wave system is signal retransmission - any receiver that receives a control signal from a transmitter automatically transmits it further. This significantly increases the control range for receivers that are so far from the transmitter that they are out of range of the original signal.

The F&Wave radio system consists of receivers - actuators. They are manufactured in a version for mounting in a Ø60 flush-mounted box or on a TH-35 rail (width of 1 module, i.e. 17.5 mm). In addition to receivers, there are also transmitters in the F&Wave system. These are hand-held remote controls or flush-mounted devices.

Operating range
In an open environment without the presence of interference, the range of radio-controlled devices fluctuates around 100 m. In built-up conditions and in the presence of interference sources (power lines, transmitters, etc.), the actual range may be shorter. The range can be improved by direct retransmission of modules within each other's range.
