Remote control FW-RC4

Remote control FW-RC4

FW-RC4

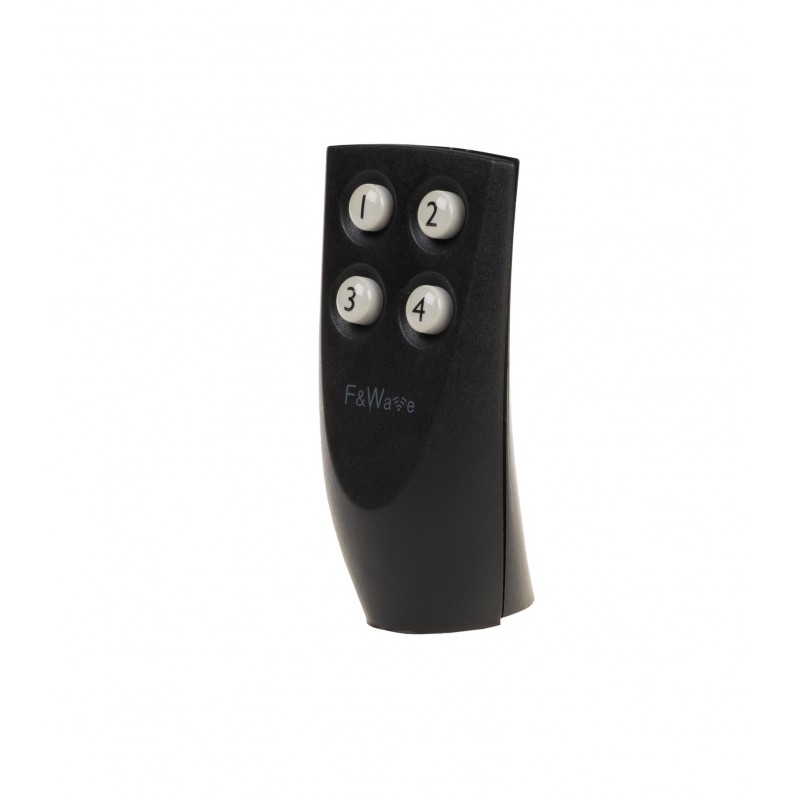

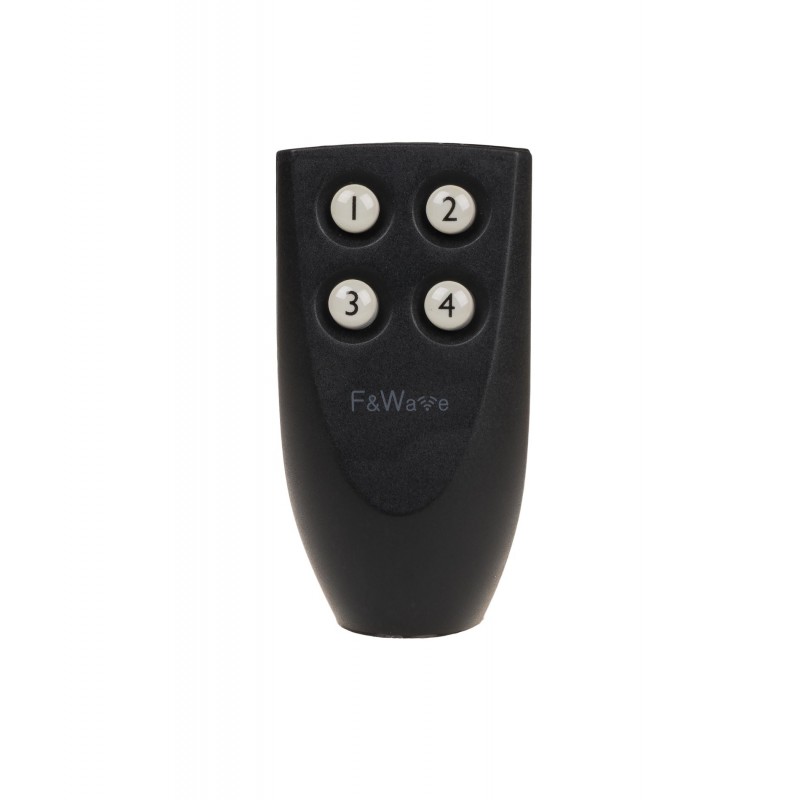

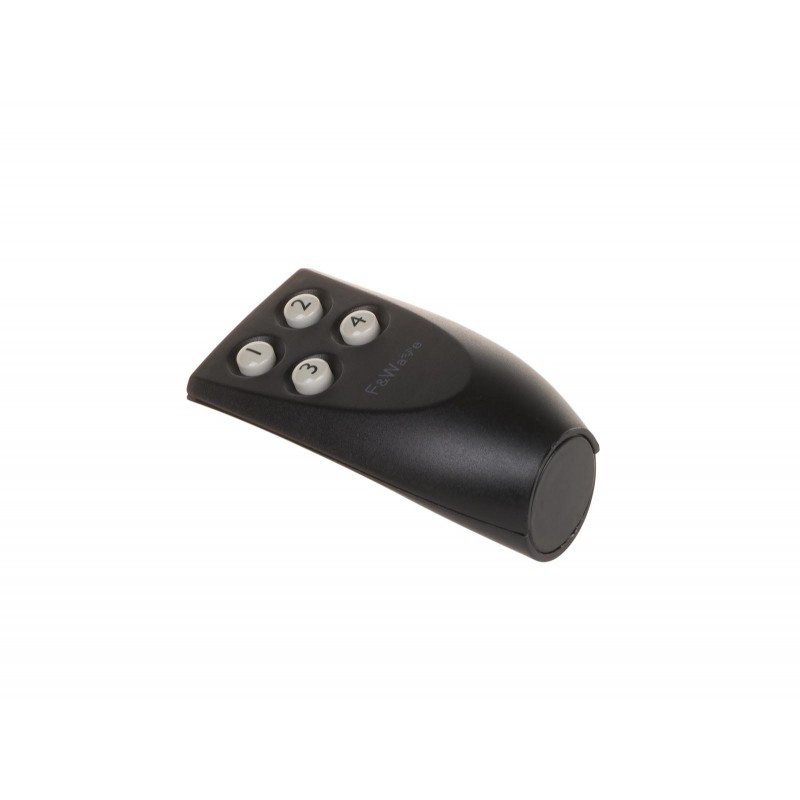

4-button remote control.

F&Wave is a family of wireless devices controlled by radio with a range of up to 100 meters*. The receivers are available in either a DIN-rail mounting version (housing 1S) or a ├ś60 flush-mounted version. The transmitters are available as handheld remote controllers or as a flush-mounted version. The receivers relay control signals. The device that receives a control signal from the transmitter will automatically send it forward, which allows to increase the range of the remote control.


Features of the module
* Four-button remote control transmitter;
* Cooperation with remote control transmitters of the F&Wave system;
* The ability to control any number of receivers;
* On/off functionality (bistable switch) with receivers: FW-R1P, FW-R1D, FW-R2P, FW-R2D, FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;
* Raise/lower the roller-blind functionality with receivers: FW-STR1P, FW-STR1D;
* Dim/lighten the lighting functionality with receivers: FW-D1P, FW-D1D, FW-LED2P, FW-LED2D.

Operating range
In an open space without any interfering factors the range of the devices controlled by radio fluctuates within the limits of 100 m. The range can be improved by direct retransmission of modules located in mutual coverage area.

Devices of the F&Wave system

TransmittersReceiversBox ├ś60
DIN rail
  flush-mountedSingle relay     FW-R1P     FW-R1D
     FW-RC5Double relay     FW-R2P     FW-R2D
 remote controlsUniversal dimmer     FW-D1P     FW-D1D
     FW-RC4Roller-blind controller     FW-STR1P     FW-STR1D
     FW-RC10Two-channel LED controller     FW-LED2P     FW-LED2D



Power supply voltage3 V
Number of channels4
Functiontransmitter
Radio frequency868 MHz
Battery type2032 (lithium)
Working temperature-25 ├Ě 50 ┬░C
dimensions37 mm x 72 mm x 30 mm
