Product description

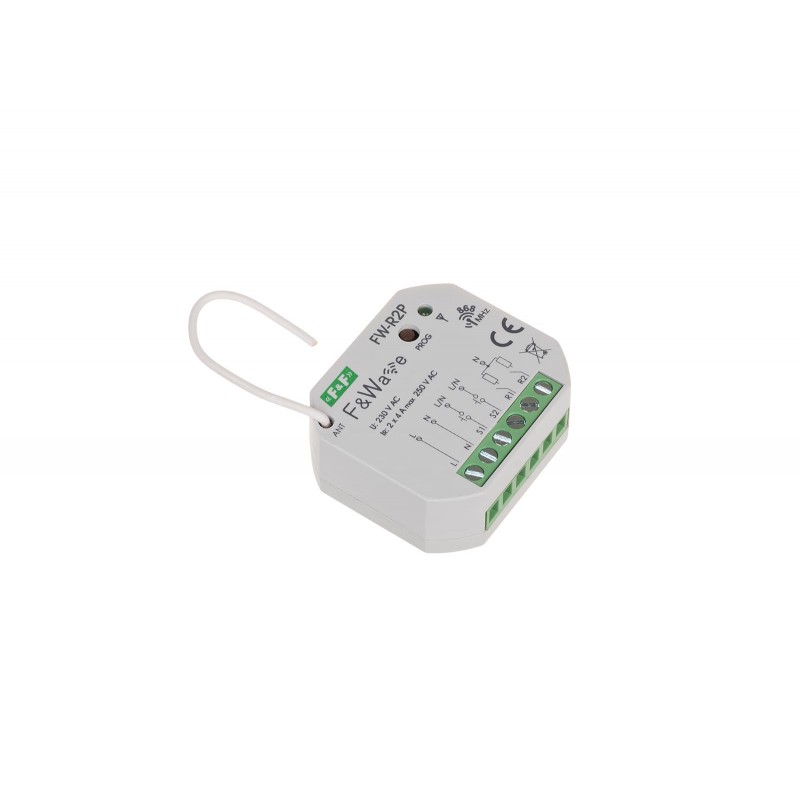

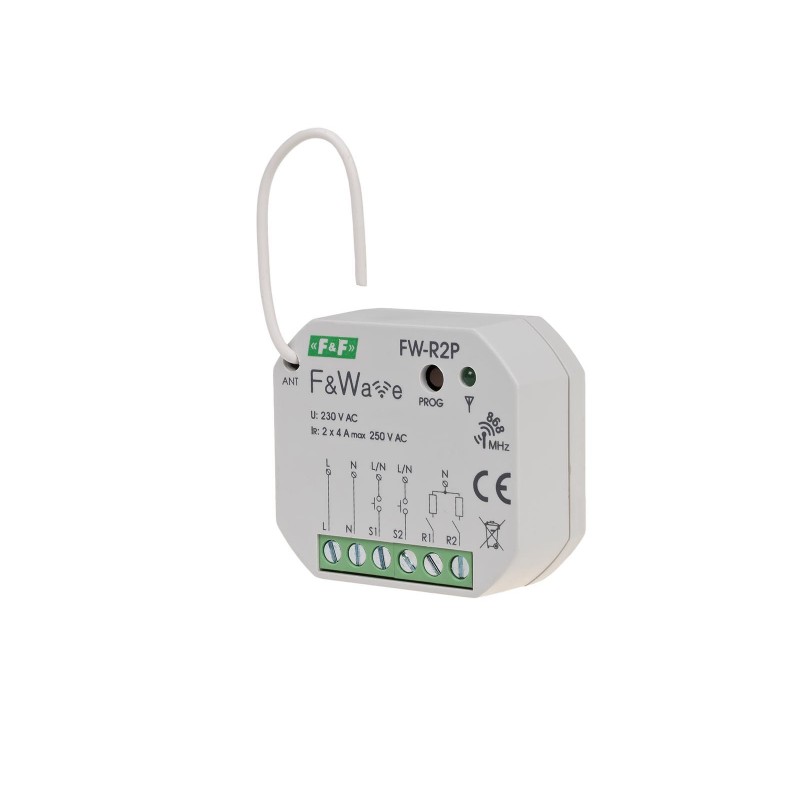

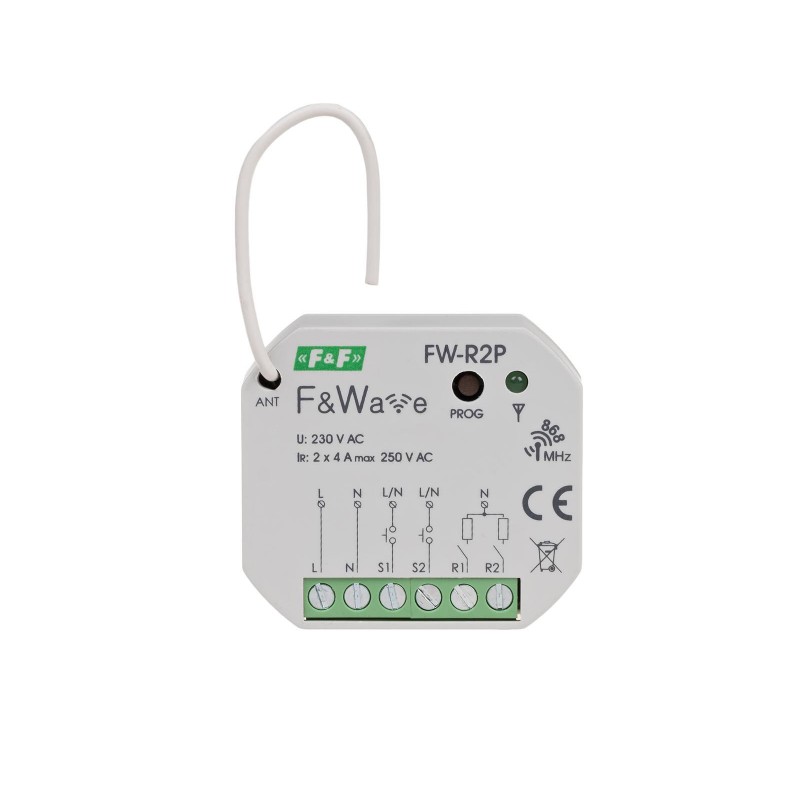

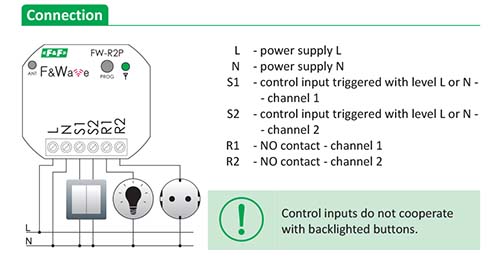

Dual bistable relay.

F&Wave is a family of wireless devices controlled by radio with a range of up to 100 meters*. The receivers are available in either a DIN-rail mounting version (housing 1S) or a √ė60 flush-mounted version. The transmitters are available as handheld remote controllers or as a flush-mounted version. The receivers relay control signals. The device that receives a control signal from the transmitter will automatically send it forward, which allows to increase the range of the remote control.


Features of the module
* Dual bistable relay;
* Cooperation with remote control transmitters of the F&Wave system;
* The ability to control from up to 8 transmitters;
* Two local control inputs - the ability to directly control the relay using any monostable buttons (for example: bell buttons);
* Two independent NO output contacts with load capacity of 4 A (AC-1) each (internally connected to L);
* Small enclosure size;
* Screw terminals for easy installation in a √ė60 flush-mounted box;
* Retransmission of commands from the transmitter - the ability to increase the range of the remote control;
* Low power consumption - low operating cost;
* Built-in electronic thermal protection to prevent damage in case of excessive load of the controller.

Operating range
In an open space without any interfering factors the range of the devices controlled by radio fluctuates within the limits of 100 m. The range can be improved by direct retransmission of modules located in mutual coverage area.

Devices of the F&Wave system

Transmitters Receivers Box¬†√ė60
DIN rail
  flush-mounted Single relay      FW-R1P      FW-R1D
     FW-RC5 Double relay      FW-R2P      FW-R2D
 remote controls Universal dimmer      FW-D1P      FW-D1D
     FW-RC4 Roller-blind controller      FW-STR1P      FW-STR1D
     FW-RC10 Two-channel LED controller      FW-LED2P      FW-LED2D



Power supply voltage 85√∑265 V AC/DC
Number of channels 2
Function relay bistabilny
Control inputs 2
Control signal L lub N
Load rating (AC-1) 2 x 8 A / 250 V
The executive element relay
Radio frequency 868 MHz
Terminal pluggable terminal blocks 2,5 mm²
Tightening torque 0,4 Nm
Power consumption waking / working 0,25 W / 1 W
Working temperature -25 √∑ 65¬įC
Dimensions 43 mm x 48 mm x 20 mm
Assembly in a flush-mounted box √ė60
Ingress Protection Marking IP20
