FW-RC5

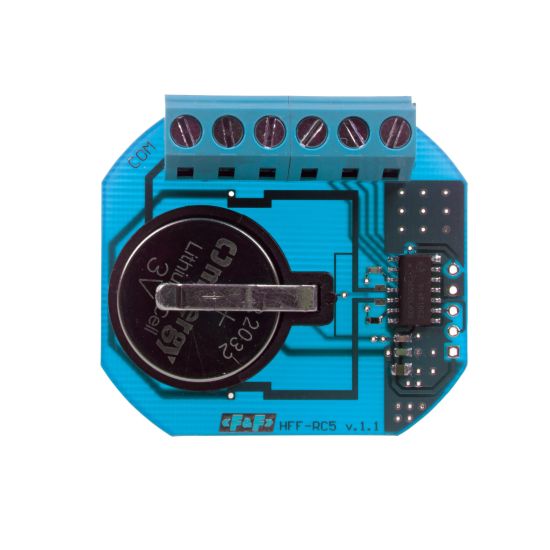

5-button transmitter to a Ø60 flush-mounted box.
F&Wave is a family of wireless devices controlled by radio with a range of up to 100 meters*. The receivers are available in either a DIN-rail mounting version (housing 1S) or a Ø60 flush-mounted version. The transmitters are available as handheld remote controllers or as a flush-mounted version. The receivers relay control signals. The device that receives a control signal from the transmitter will automatically send it forward, which allows to increase the range of the remote control.

Features
* Five-button remote control transmitter;
* Cooperation with remote control transmitters of the F&Wave system;
* The ability to control any number of receivers;
* S1, S2 and S3 inputs functionality:
- on/off (bistable switch) with receivers FW-R1P, FW-R1D, FW-R2P, FW-R2D, AFW-D1P, FW-D1D, FW-LED2P, FW-LED2D;
- raise/lower the roller-blind with receivers FW-STR1P, FW-STR1D;
- dim/lighten the lighting with receivers FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;
* The ON input always activates paired receivers and/or raises the roller-blind;
* The OFF input always deactivates paired receivers and/or lowers the roller-blind;
* Small size of the enclosure;
* Screw terminals for easy installation in the Ø60 flush-mounted box.

Power supply voltage3 V
Number of channels5
Functiontransmitter
Control inputs5
Control signalCOM
Radio frequency868 MHz
Battery type2032 (lithium)
terminalscrew terminals 2,5 mm²
Tightening torque0,4 Nm
Working temperature-25 ÷ 50 °C
dimensions41 mm x 46 mm x 15 mm
Assemblyin a flush-mounted box Ø60
