Radio switch button FW-WS3

Radio switch button FW-WS3

FW-WS3

Product description

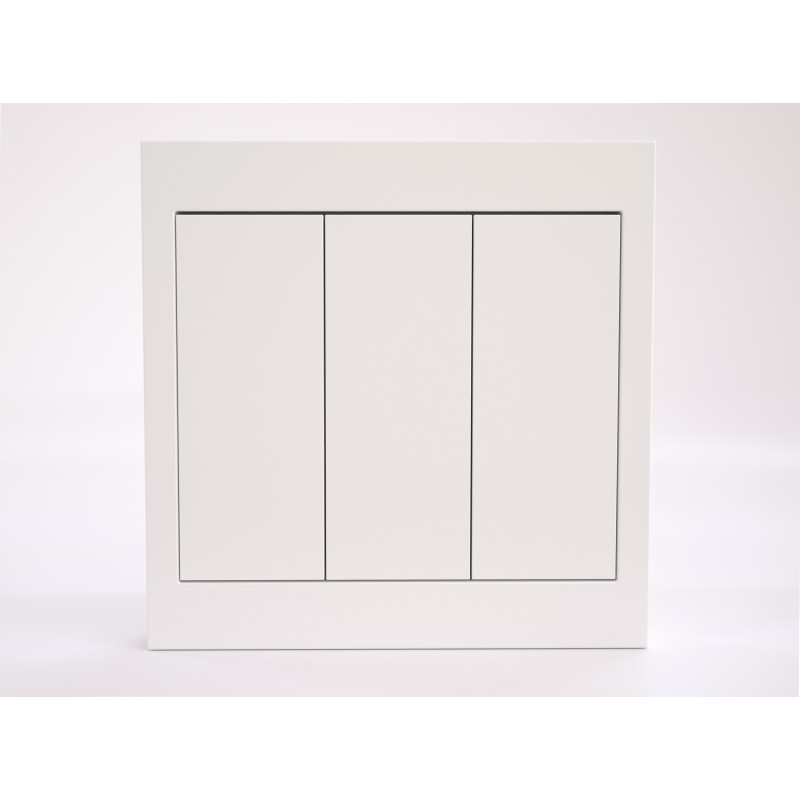

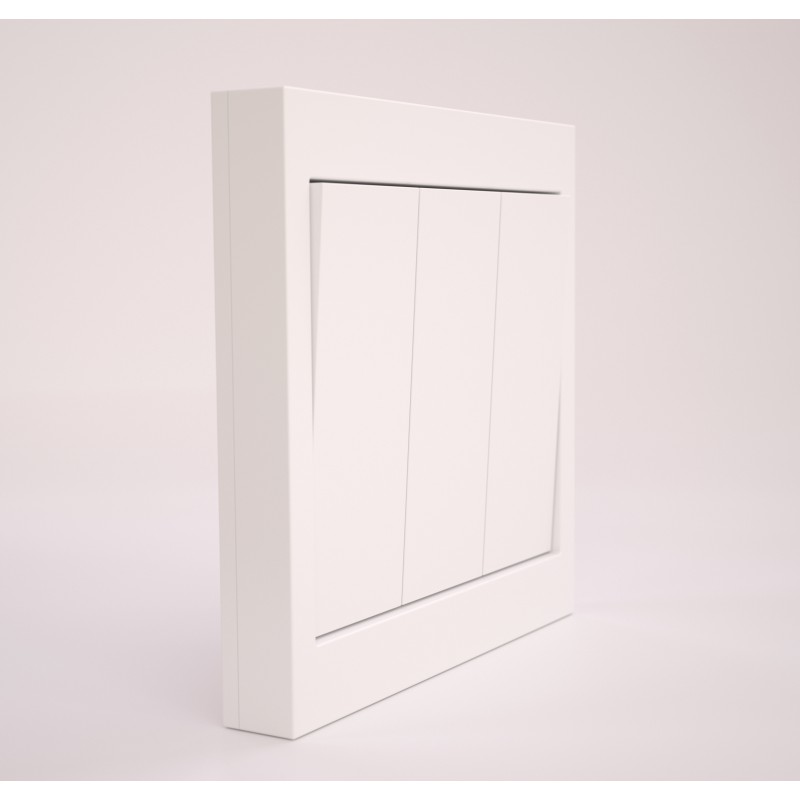

Radio wall switch 3-button.

F&Wave is a family of wireless devices controlled by radio with a range of up to 100 meters*. The receivers are available in either a DIN-rail mounting version (housing 1S) or a √ė60 flush-mounted version. The transmitters are available as handheld remote controllers or as a flush-mounted version. The receivers relay control signals. The device that receives a control signal from the transmitter will automatically send it forward, which allows to increase the range of the remote control.


Features of the module
* 3-button remote control transmitter;
* works with F&Wave remote control receivers;
* ability to control any number of receivers;
* on/off (bi-stable switch) with receivers: FW-R1P, FW-R1D, FW-R2P, FW-R2D, FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;
* raise/lower the roller blind with receivers FW-STR1P, FW-STR1D;
* dim/brighten the lighting with receivers FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;
* ability to change the configuration of the first button to the ON function - always switch on the paired receivers and/or lift the roller blind;
* ability to change the configuration of the third button to the OFF function - always switch off the paired receivers and/or lower the roller blind;
* installation does not require a flush-mounted box.

Operating range
In an open space without any interfering factors the range of the devices controlled by radio fluctuates within the limits of 100 m. The range can be improved by direct retransmission of modules located in mutual coverage area.

F&Wave system devices

Transmitters Receivers √ė60 box
 DIN rail
flush-mounted Single relay      FW-R1P      FW-R1D
     FW-RC4-AC, FW-RC5 Double relay      FW-R2P      FW-R2D
remote controls Uniwersal dimmer      FW-D1P      FW-D1D
     FW-RC4, FW-RC10 Roller blind controller      FW-STR1P      FW-STR1D
wall buttons Dual-channel LED controller      FW-LED2P      FW-LED2D
     FW-WS1, FW-WS2, FW-WS3



Power supply voltage 3 V
Function transmitter
Radio frequency 868 MHz
Battery type 2032 (lithium)
Working temperature 5√∑50¬įC
Dimensions 86 mm x 86 mm x 15 mm

FW-WS3 manual (284.88k)
