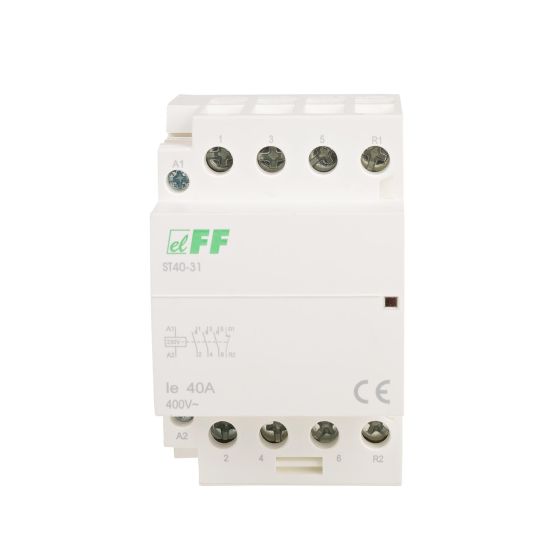

Modular contactor ST40-31
ST40-31 40 A modular contactor with a 230 V AC coil and a contact configuration of 3×NO + 1×NC.
- Main circuit current: 40 A
- Coil supply voltage: 230 V AC
- Contacts: 3×NO + 1×NC
- Mounting: 35 mm rail
ST40-31 – 40 A contactor with a 3NO+1NC configuration
The ST40-31 has three normally open contacts and one normally closed contact. Applying voltage to the coil causes all four circuits to change state simultaneously.
The 3NO+1NC configuration allows the contactor to be used in more complex control systems.
Check out the variant
ST25-31 – 25 A and 3×NO + 1×NC configuration.
ST63-31 – 63 A and 3×NO + 1×NC configuration.
ST40-22 – 40 A and 2×NO + 2×NC configuration.
- Coil supply voltage
- 230 V AC
- Contact configuration
- 3×NO+1×NC
- Main track current
- 40 A
- Switching power cat. AC1 (230V)
- 16 kW
- Switching power cat. AC3 (230V)
- 5,5 kW
- Module
- 3
- Standard number
- IEC 61095
- Electrical connection life
- 1x10⁵
- Mechanical connecting durability
- 1x10⁶
- Weight
- 241 g
- Screw terminals
- 16 mm²
- Isolation voltage
- 4 kV
- Power consumption
- 6,4 W
- Working temperature
- -25 ÷ 50 °C
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
