Modular contactor ST25-11
ST25-11 25 A modular contactor with a 230 V AC coil, one NO contact and one NC contact.
- Main circuit current: 25 A
- Coil supply voltage: 230 V AC
- Contacts: 1×NO + 1×NC
- Mounting: 35 mm rail
ST25-11 – 25 A contactor with one NO contact and one NC contact
The ST25-11 has one normally open contact and one normally closed contact. When the coil is energised, the NO contact closes and the NC contact opens.
The NO+NC configuration allows the contactor to be used in circuits requiring the simultaneous change of state of two different circuits.
Check the variant
- ST25-11 24 V DC – the same 1×NO + 1×NC configuration with a 24 V DC coil.
- ST25-20 – 25 A, 230 V AC coil and 2×NO.
- ST25-22 – 25 A, 230 V AC coil and 2×NO + 2×NC.

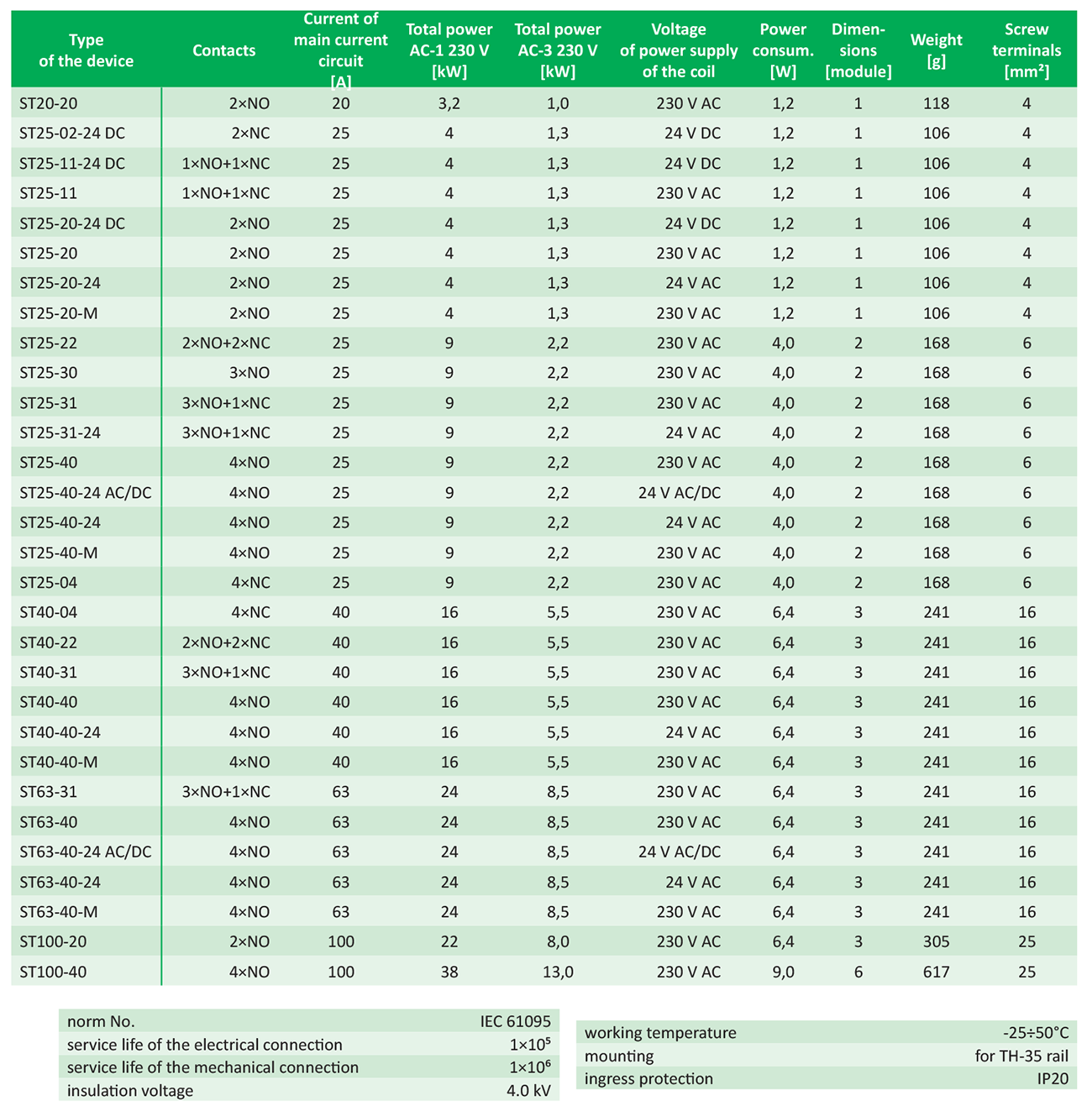

- Coil supply voltage
- 230 V AC
- Contact configuration
- 1×NO+1×NC
- Main track current
- 25 A
- Switching power cat. AC1 (230V)
- 4 kW
- Switching power cat. AC3 (230V)
- 1,3 kW
- Module
- 1
- Standard number
- IEC 61095
- Electrical connection life
- 1x10⁵
- Mechanical connecting durability
- 1x10⁶
- Weight
- 106 g
- Screw terminals
- 4 mm²
- Isolation voltage
- 4 kV
- Power consumption
- 1,2 W
- Working temperature
- -25 ÷ 50 °C
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
