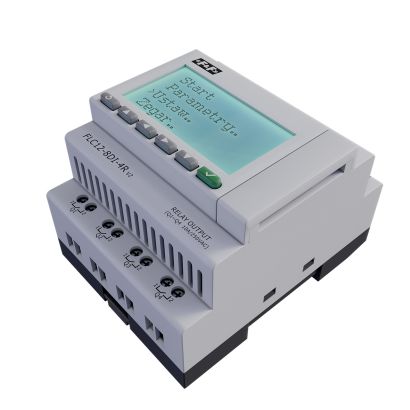

FLC12-8DI-4R v.2 Universal Programmable Relay

Description

FLC12-8DI-4R v.2 controller( ) is a universal, programmable logic relay capable of operating household appliances and controlling electrical installations (stairwell lighting, pavement and driveway lighting, control of awnings, roller blinds and curtains, shop window lighting, and control of simple machines).

Key features of theFLC12-8DI-4R v.2 controller

• Ethernet interface – the controller can be programmed without the need for additional programmers;

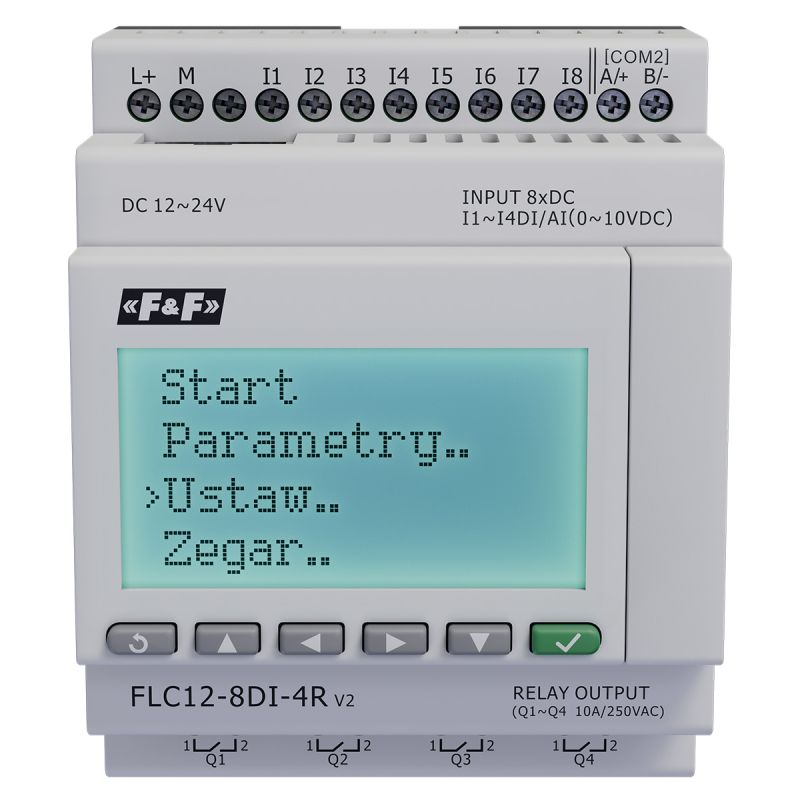

• Backlit, configurable LCD display and buttons – the ability to create simple HMI interfaces;

• Built-in RS485 communication interface;

• 8 digital inputs;

• 4 analogue inputs (shared with the digital inputs);

• 4 relay outputs;

• Capability to connect up to three expansion modules;

• Built-in real-time clock (RTC);

• 12–24 V DC power supply;

• DIN rail mounting (4S);

• Programming in the FBD standard;

• Free software in Polish;

• A detailed Polish user manual, enriched with numerous examples.

To configure the FLC12-8DI-4R v.2 controller, you can use the free FLC LogicSoft v.2 software (link to the programme), designed for Windows systems. The software is available in Polish, together with a comprehensive Polish user manual and in-program context-sensitive help. Controller programmes are created graphically using function block diagrams (FBDs); an Ethernet cable is all that is required to upload the programme to the controller (no additional programmers are needed).

Screenshot of the application

Example of a help screen in the programme

The controller is compatible with the following expansion modules:

• FLC18E-8DI-8TN (link) – 8 digital inputs and 8 transistor outputs,

• FLC18E-8DI-8R (link) – 8 digital inputs and 8 relay outputs,

• FLC18E-4AI-I (link) – 4 analogue current inputs 0–20 mA,

• FLC18E-2AQ-VI (link) – 2 analogue voltage outputs 0–10 V and 2 analogue current outputs 0–20 mA,

• FLC18E-3PT100 (link) – 2 inputs for PT-100 temperature sensors

• FLC18E-RS485 (link) – RS485 communication port

A maximum of 3 expansion modules can be connected to the FLC12-8DI-4R v.2 controller.
