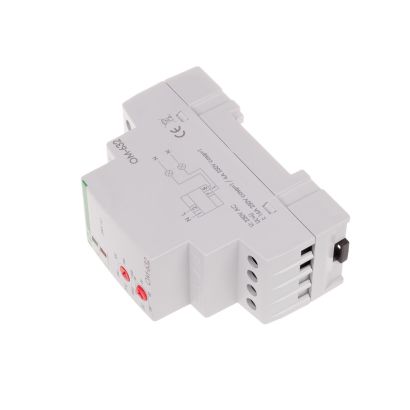

Power consumption limiters OM-632

Power consumption limiters OM-632

OM-632

Adjustable operating power 200-2000 VA. For circuit with converters.
Power consumption limiters are devised for the automatic disconnection of power from the circuit of single-phase wiring systems once the rated power consumption of the receivers incorporated into the system is exceeded.

Attention!
Limiter adapted for the protection of circuits with converters, e.g. fluorescent lamps, transformers.


Functioning
The limiter enables the user to supply power to the circuit if the total consumed power applied to the receivers constituting the system is lower than the preset value on the limiter's scale. Once the rated power consumption threshold in the controlled circuit is exceeded, the element is automatically disconnected from the power source. The supply is reinstated automatically once the preset time lapses. If the value of power consumption remains over the rated input, the power supply to the circuit is cut off again.





Power supply voltage230 V AC
Maximum AC-1 load current16 A
Maximum AC-3 load current4:00 AM
The executive elementrelay
Contact configuration1 ├Ś NO
Separation of the contactNO
Delay of operation1├Ě2 s
Power limitation200├Ě2000 VA
Power recovery time10├Ě100 s
Power return hysteresis2%
terminalscrew terminals 4,0 mm┬▓
Tightening torque0,5 Nm
Power consumption0,8 W
Working temperature-25 ├Ě 50 ┬░C
dimensions2 modules (35 mm)
Assemblyon rail 35 mm
Level of securityIP20
