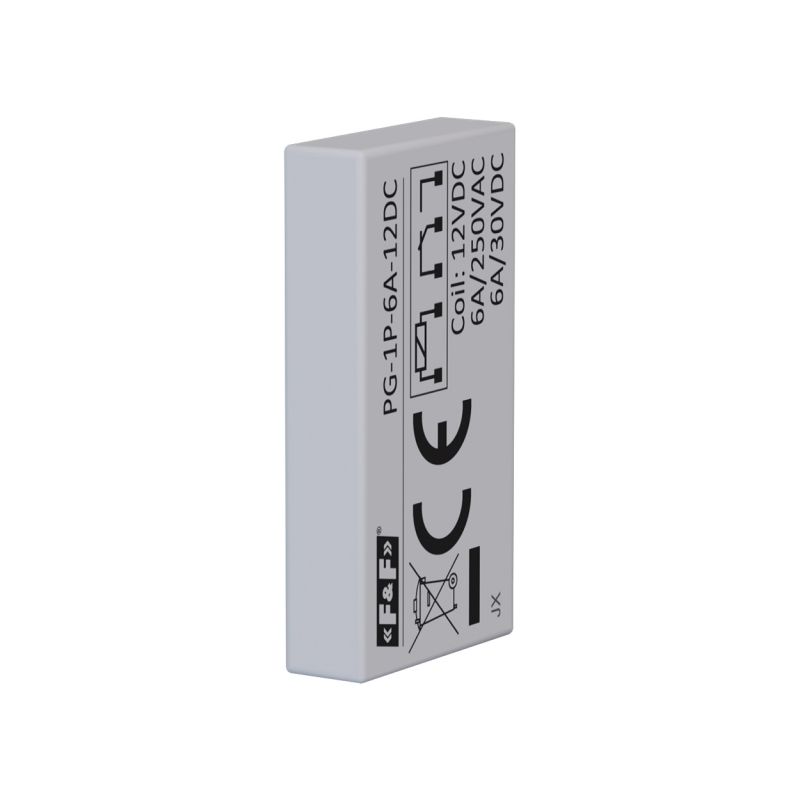

PG-1P-6A-12DC interface relay
Interface relay with one contact (1P), 12 V DC coil and 6 A load capacity. The compact design (5.2 mm wide) and AgSnO₂ contact material ensure reliable operation in automation systems. Works with the GN-1P-24 socket.
Interface relays, also known as coupling, isolation or signal relays, provide a reliable solution for galvanic separation and signal alignment between different control and load levels. With their compact design, wide coil voltage range and a variety of contact configurations, they facilitate the design of modern automation systems. They provide high noise immunity and safe operation in even the most demanding industrial applications. They are a key element for stable and flexible communication between devices.
Compliance with standards:
PN-EN 60999-1:2002
PN-EN 61810-1:2015-09
PN-EN IEC 60947-1:2021-07
- Application
- GN-1P-24
- Current carrying capacity [A]
- 6
- Dimensions (W x H x D) [mm].
- 5,2x28,1x19,2
- Number and type of contacts
- 1P
- Contact material
- AgSnO2
- Maximum inrush current
- 80
- Rated coil voltage
- 12 V DC
- Maximum switching voltage
- 277 V AC / 30 V DC
