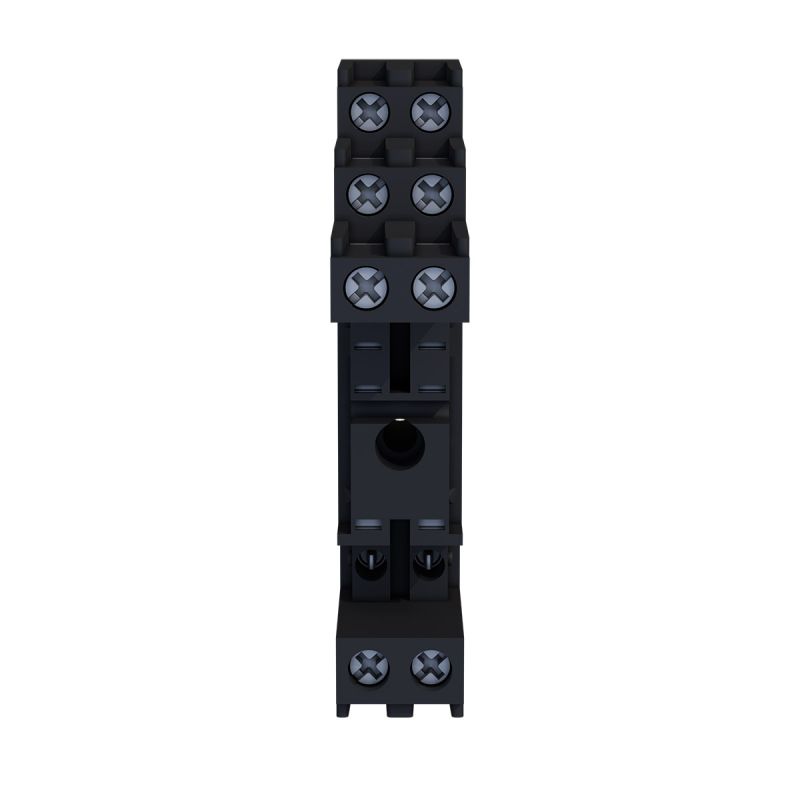

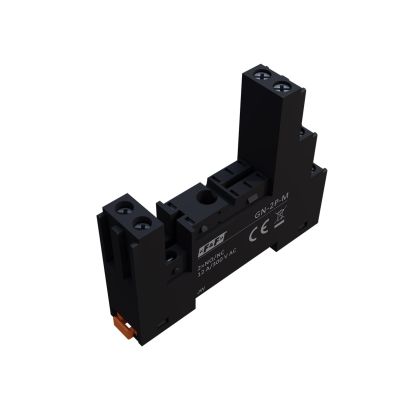

Relay socket GN-2P-M
Relay socket 2P (two NO/NC changeover contacts) on DIN rail TH-35 with load capacity up to 10 A. Designed for PG-2P relays supplied with 24 V DC or 230 V AC. It has an electrical strength of 2500 V.
GN relay sockets are reliable solutions for mounting interface relays on DIN rail TH-35. The current carrying capacity ranges from 7 to 10A depending on the model. All sockets have a high dielectric strength: 2500 V AC and a rated voltage of 300V.
Compliance with standards:
PN-EN 60999-1:2002
PN-EN 61810-1:2015-09
PN-EN 61984:2009
Accessories available for the sockets:
-
Extinguishers
-
Mounting brackets
-
Comb strips
- Housing material
- PA46-S250F6(V0)
- Application
- PG-2P-12A-24DC; PG-2P-12A-230AC
- Ingress Protection Marking
- IP20
- Current carrying capacity [A]
- 12
- Rated voltage [V]
- 300
- Electrical strength [V]
- 2500
- Temperature [°C]
- -40÷75°C
- Clamp material
- QSn6,5-0.1
- Mounting [DIN rail]
- TH-35
- Dimensions (W x H x D) [mm].
- 15,6x79x61
