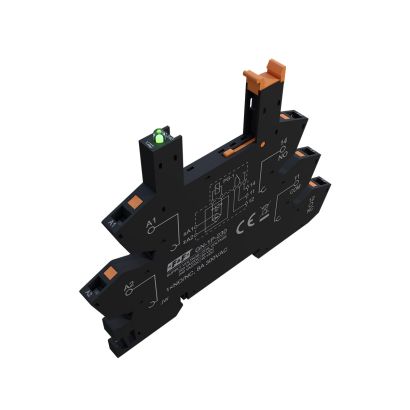

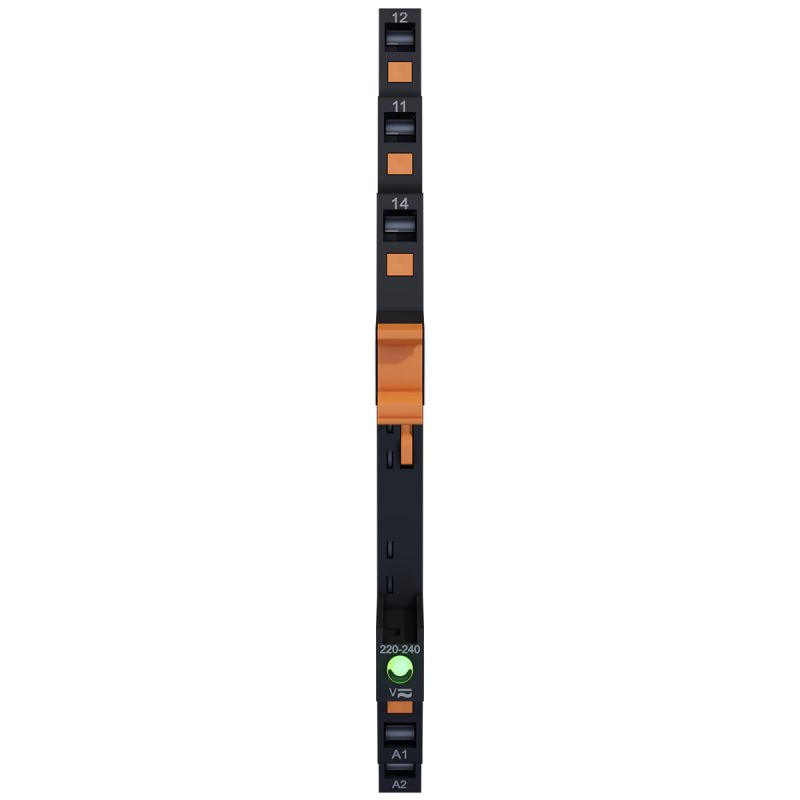

Relay socket GN-1P-230
Compact relay socket for DIN rail TH-35, supplied with 230V AC, designed for PG-1P series relays with a coil voltage of 60 V DC, one changeover contact (NO/NC) with a load capacity of up to 8 A, electrical resistance of 2500 V. The slim design (6.2 mm) saves space in control cabinets.
GN relay sockets are reliable solutions for mounting interface relays on DIN rail TH-35. The current carrying capacity ranges from 7 to 10A depending on the model. All sockets have a high dielectric strength: 2500 V AC and a rated voltage of 300V.
Compliance with standards:
PN-EN 60999-1:2002
PN-EN 61810-1:2015-09
PN-EN 61984:2009
Accessories available for the sockets:
-
Extinguishers
-
Mounting brackets
-
Comb strips
- Housing material
- PA46-V0
- Application
- PG-1P-6A-60DC
- Ingress Protection Marking
- IP20
- Current carrying capacity [A]
- 8
- Rated voltage [V]
- 300
- Electrical strength [V]
- 2500
- Temperature [°C]
- -40÷65°C
- Clamp material
- b.d.
- Mounting [DIN rail]
- TH-35
- Dimensions (W x H x D) [mm].
- 6,2x101x75
