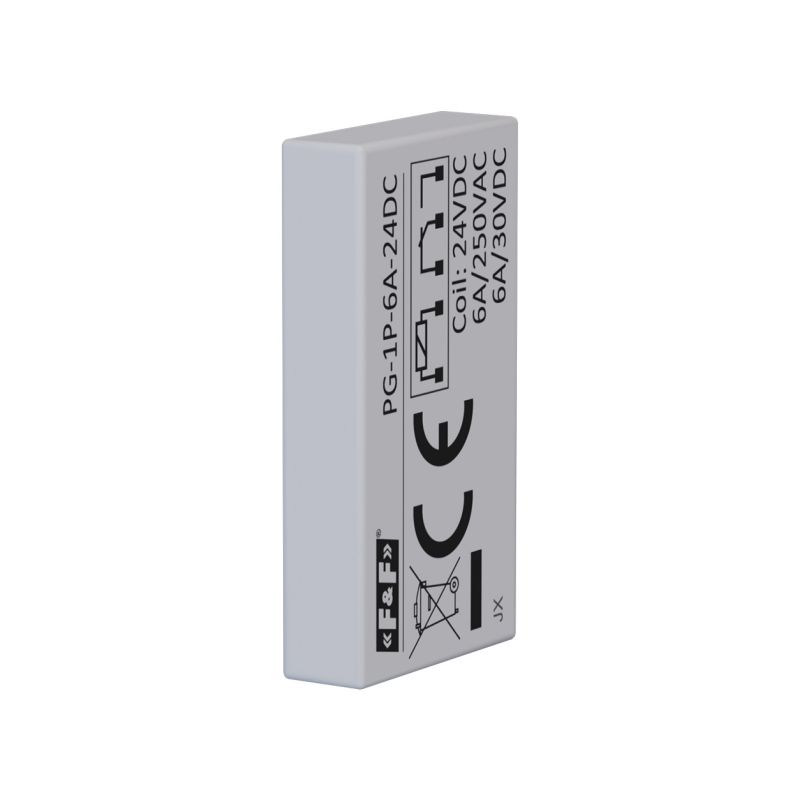

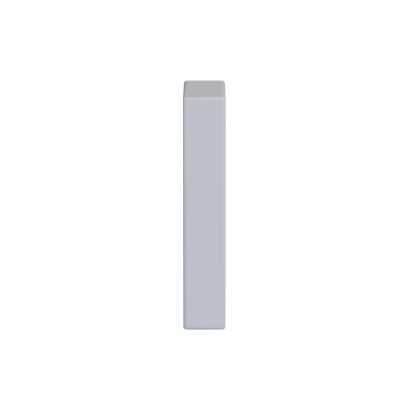

PG-1P-6A-24DC interface relay

PG-1P-6A-24DC, 5902431677743

Interface relay with one contact (1P), 24 V DC coil and 6 A load capacity. The compact design (5.2 mm wide) and AgSnO₂ contact material ensure reliable operation in automation systems. Works with the GN-1P-24 socket.

Interface relays, also known as coupling, isolation or signal relays, provide a reliable solution for galvanic separation and signal alignment between different control and load levels. With their compact design, wide coil voltage range and a variety of contact configurations, they facilitate the design of modern automation systems. They provide high noise immunity and safe operation in even the most demanding industrial applications. They are a key element for stable and flexible communication between devices.

Compliance with standards:
PN-EN 60999-1:2002
PN-EN 61810-1:2015-09
PN-EN IEC 60947-1:2021-07

PG-1P-6A-24DC
Maximum switching voltage
277 V AC / 30 V DC
Electrical durability
30 000 cykli
Mechanical durability
10 000 000 cykli
Insulation resistance
˃1000 MΩ 500 V DC
Application
GN-1P-24
Wilgotność względna
5÷85%
Current carrying capacity [A]
6
Dimensions (W x H x D) [mm].
5,2x28,1x19,2
Number and type of contacts
1P
Contact material
AgSnO2
Maximum inrush current
80
Rated coil voltage
24 V DC
Distance between the coil and the contacts [mm]
8
Rezystancja zestyku [mΩ]
≤100
Minimum contact current [mA]
10
Test voltage between the coil and the contacts [V/min]
5000/1
Contact gap test voltage [V/min]
1000/1
Maximum AC-1 switching capacity [VA]
1662
Maximum DC switching power [W]
180
Rated power consumption (coil) [W]
0,18
Response/recovery time (typical values) [ms/ms]
10/5
Vibration resistance [mm], DA (double amplitude) 10–55 Hz
1
Shock resistance [m/s²]
100
Ambient temperature
-40÷85°C
