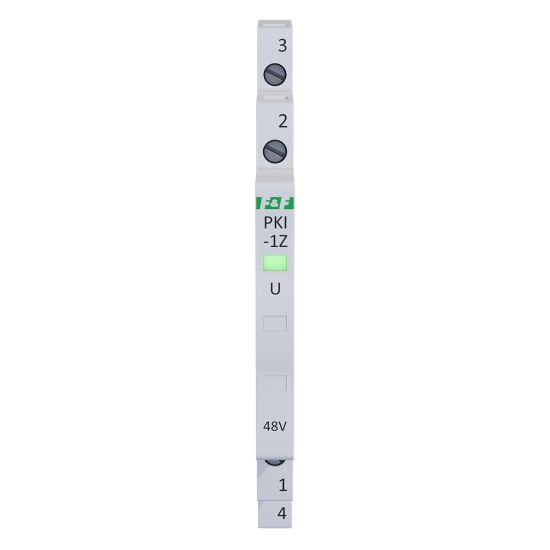

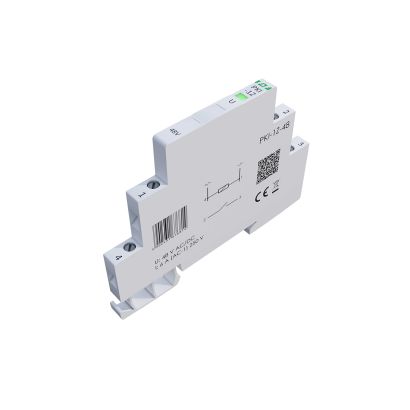

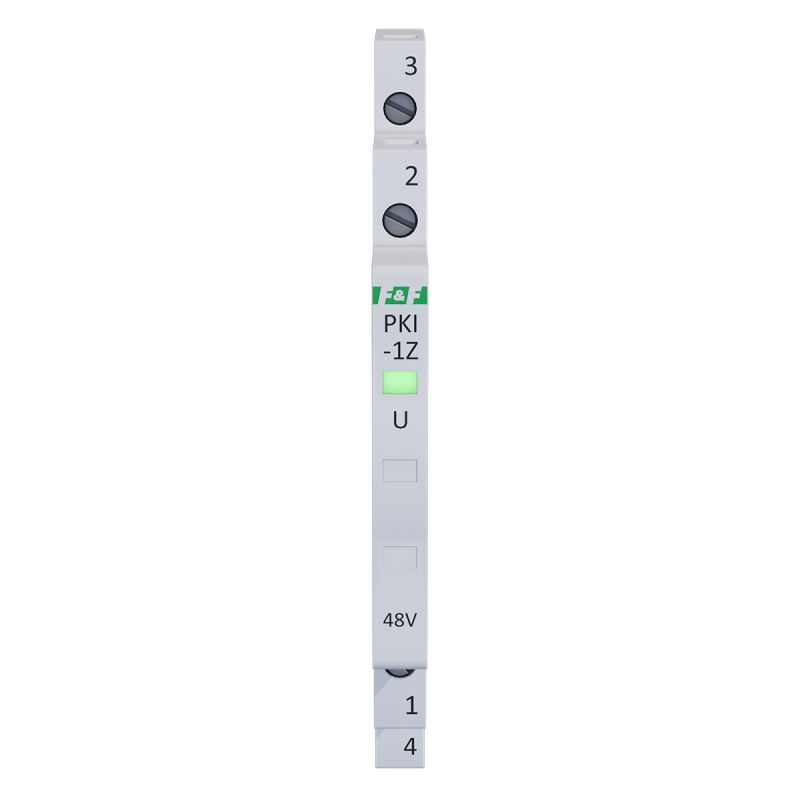

PKI-1Z-48V – interface relay, normally open contact, 48 V AC/DC, 1/3S, TH-35
PKI-1Z-48V interface relay with a 48 V AC/DC coil and a normally open (NO) contact. A built-in LED indicates the operating status.
The PKI-1Z-48V is an electromagnetic interface relay designed for use in control systems and industrial automation systems.
The device is equipped with a normally open (NO) contact and a coil powered by 48 V AC/DC, allowing it to be used in control systems employing higher control voltages.
When supply voltage is applied to the coil, the NO contact closes, enabling the controlled circuit to be switched on. The relay’s operating status is indicated by an LED, allowing for quick verification of the device’s operation.
The 6.2 mm wide housing (1/3 module) allows for the installation of multiple devices in a single control cabinet. The relay is designed for installation on a standard TH-35 DIN rail.
- Power supply voltage
- 48 V AC/DC
- Maximum AC-1 load current
- 6 A *
- Rated switching voltage
- 250 V AC/30 V DC
- Maximum switching voltage
- 400 V AC/125 V DC
- Surge voltages: contact – coil
- 4 kV
- Power consumption
- 0,4 W
less than 8 mA - Surge voltages: contact gap
- 1 kV
- Kategoria użytkowania
- AC-7a
- Electrical durability
- at least 1×10⁴ cycles
- Mechanical durability
- at least 5×10⁷ cycles
- Contact configuration
- 1 × NO
- Power indication
- LED green
- Turn-off time
- poniżej 20 ms
- Operating time
- less than 20 ms
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 1/3 module (6.2 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
