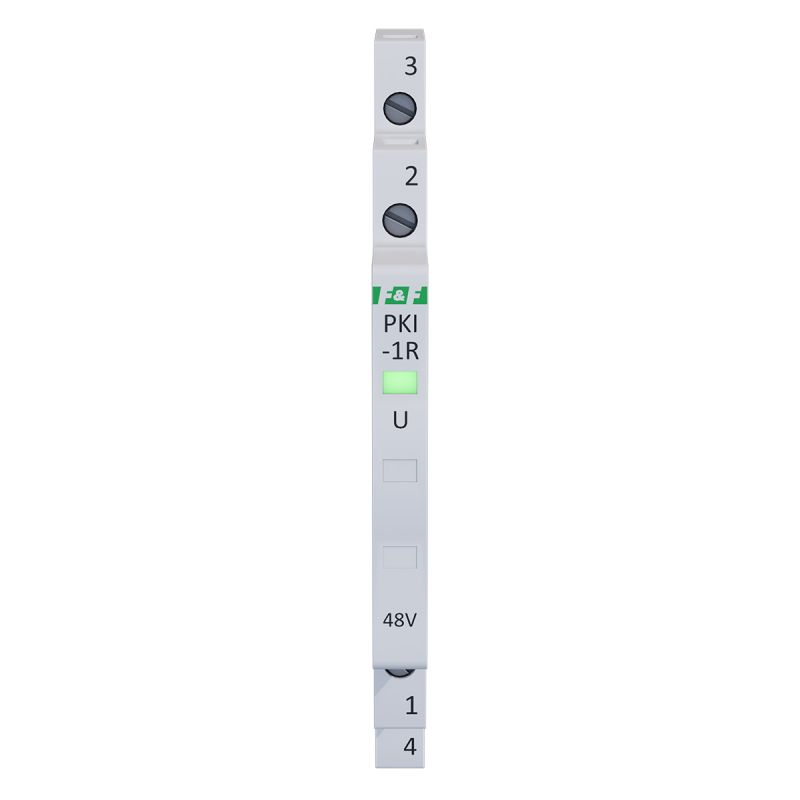

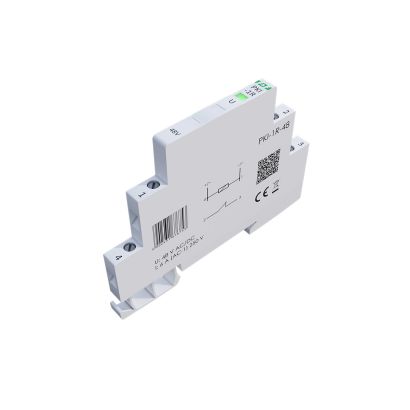

PKI-1R-48V – Interface relay, normally closed contact, 48 V AC/DC, 1/3S, TH-35
Interface relay with a 48 V AC/DC coil and a normally closed (NC) contact. Equipped with an LED to indicate operation.
The PKI-1R-48V is an interface relay designed for use in industrial automation systems and control installations.
The coil, powered by 48 V AC/DC, allows integration with the most commonly used control systems and PLCs.
When supply voltage is applied to the coil, the NC contact opens, and the active state of the relay is indicated by an LED.
The narrow 6.2 mm housing allows for the installation of multiple relays in a single control cabinet. The device is designed for mounting on a DIN TH-35 rail.
Application
-
industrial automation
-
PLC systems
-
machine control
-
electrical installations in switchgear
- Power supply voltage
- 48 V AC/DC
- Maximum AC-1 load current
- 6 A *
- Rated switching voltage
- 250 V AC/30 V DC
- Maximum switching voltage
- 400 V AC/125 V DC
- Surge voltages: contact – coil
- 4 kV
- Power consumption
- 0,4 W
less than 8 mA - Surge voltages: contact gap
- 1 kV
- Kategoria użytkowania
- AC-7a
- Electrical durability
- at least 1×10⁴ cycles
- Mechanical durability
- at least 5×10⁷ cycles

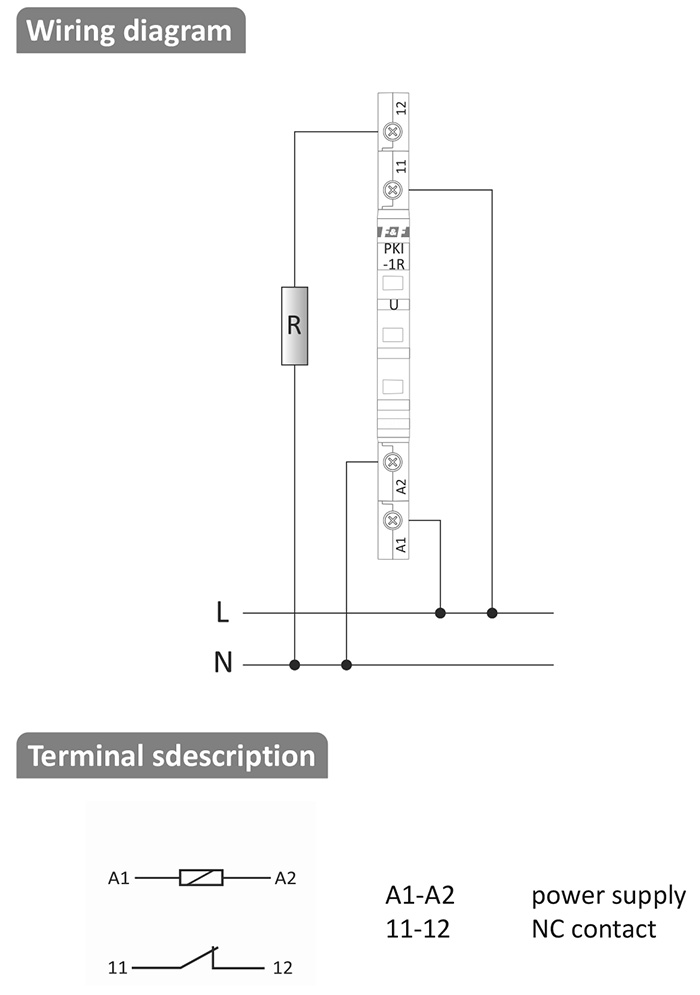

- Contact configuration
- 1×NC
- Power indication
- LED green
- Turn-off time
- poniżej 20 ms
- Operating time
- less than 20 ms
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 1/3 module (6.2 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
