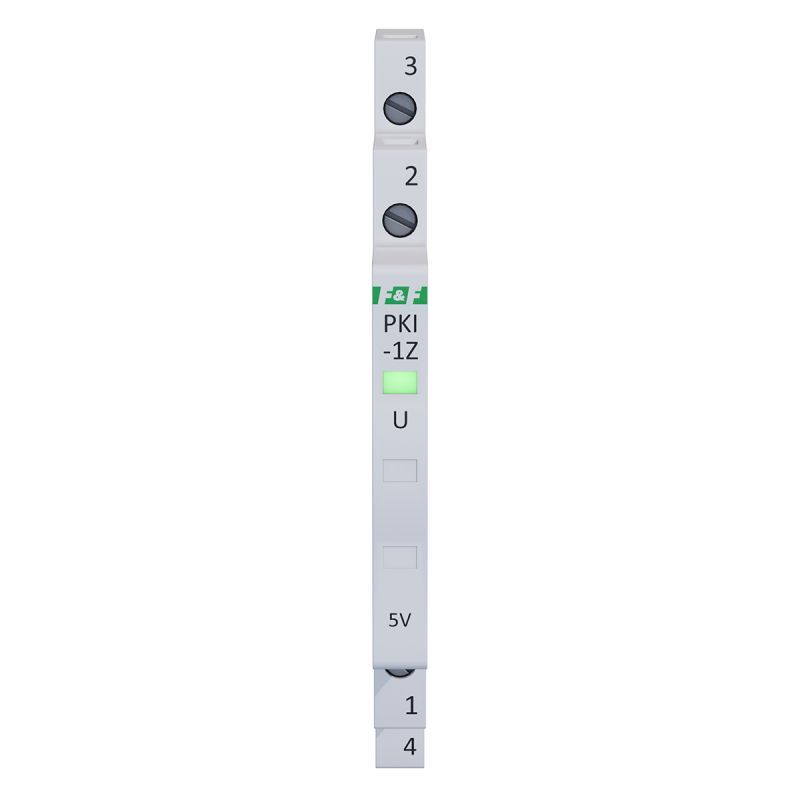

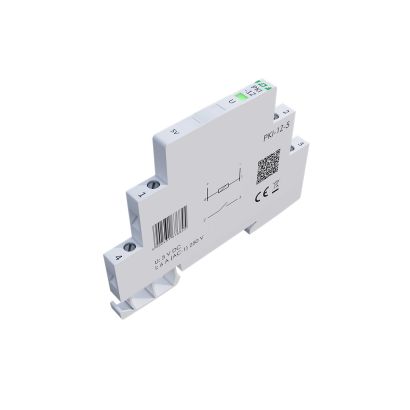

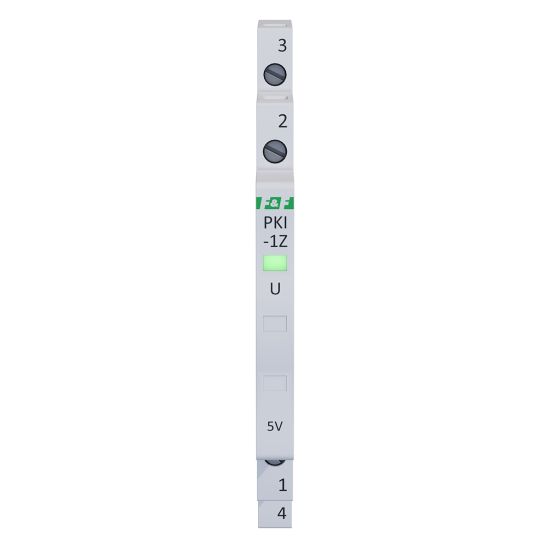

PKI-1Z-5V – interface relay, normally open contact, 5 V DC, 1/3S, TH-35
PKI-1Z-5V interface relay with a 5 V DC coil and a normally open (NO) contact. The device is fitted with an LED indicating its operating status
The PKI-1Z-5V is a compact interface relay designed for use in low-voltage control systems, electronic circuits and automation installations.
The relay features a normally open (NO) contact and a coil powered by 5 V DC, enabling it to work with microprocessor-based systems, PLCs and various types of control modules.
When voltage is applied to the relay coil, the NO contact closes, enabling the controlled circuit to be activated. The active operating state is indicated by an LED, which facilitates diagnostics and monitoring of the device’s operation.
Thanks to its narrow 6.2 mm housing, the relay saves space in control cabinets and switchboards. It is mounted directly onto a TH-35 DIN rail, ensuring quick and convenient installation.
Applications
-
industrial automation
-
PLC controllers
-
microprocessor systems
-
building automation
-
electrical installations in switchgear
- Power supply voltage
- 5 V DC
- Maximum AC-1 load current
- 6 A *
- Rated switching voltage
- 250 V AC/30 V DC
- Maximum switching voltage
- 400 V AC/125 V DC
- Surge voltages: contact – coil
- 4 kV
- Power consumption
- 0,4 W
less than 60 mA - Surge voltages: contact gap
- 1 kV
- Kategoria użytkowania
- AC-7a
- Electrical durability
- at least 1×10⁴ cycles
- Mechanical durability
- at least 5×10⁷ cycles
- Contact configuration
- 1 × NO
- Power indication
- LED green
- Turn-off time
- poniżej 20 ms
- Operating time
- less than 20 ms
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 1/3 module (6.2 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
