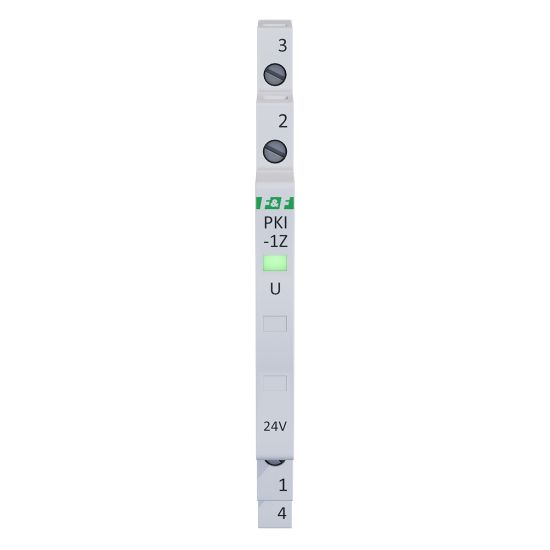

PKI-1Z-24V – interface relay, normally open contact, 24 V AC/DC, 1/3S, TH-35
Interface relay with a 24 V AC/DC coil and a normally open (NO) contact. LED indicating operating status.
The PKI-1Z-24V is an interface relay designed for use in industrial automation systems and control installations. Thanks to its 24 V AC/DC coil, the device is compatible with most common control systems and PLCs.
When voltage is applied to the relay coil, the NO normally open contact closes, enabling the control of actuator circuits. The relay’s active state is indicated by an LED, which facilitates diagnostics and monitoring of the system’s operation.
The compact 6.2 mm wide housing allows for the installation of multiple relays in a single switchboard or control cabinet. The relay is designed for direct mounting on a DIN TH-35 rail, ensuring quick and convenient installation.
Application
-
industrial automation
-
PLC systems
-
machine and equipment control
-
electrical installations in switchboards
-
building automation
- Power supply voltage
- 24 V AC/DC
- Maximum AC-1 load current
- 6 A *
- Rated switching voltage
- 250 V AC/30 V DC
- Maximum switching voltage
- 400 V AC/125 V DC
- Surge voltages: contact – coil
- 4 kV
- Power consumption
- 0,3 W
less than 12 mA - Surge voltages: contact gap
- 1 kV
- Kategoria użytkowania
- AC-7a
- Electrical durability
- at least 1×10⁴ cycles
- Mechanical durability
- at least 5×10⁷ cycles
- Contact configuration
- 1 × NO
- Power indication
- LED green
- Turn-off time
- poniżej 20 ms
- Operating time
- less than 20 ms
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 1/3 module (6.2 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
