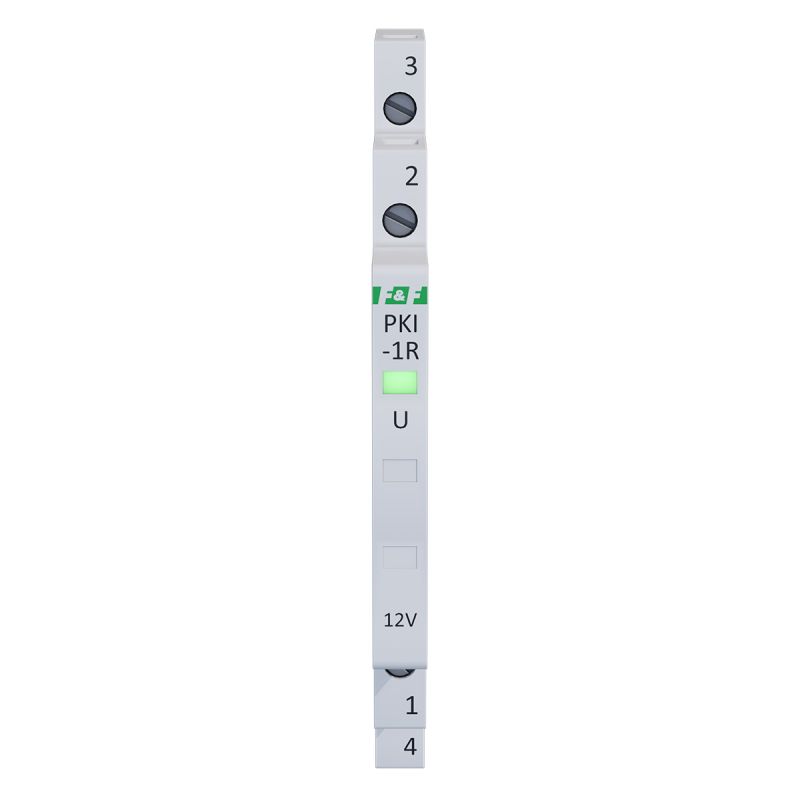

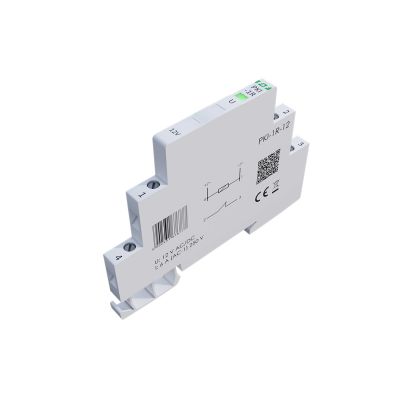

PKI-1R-12V – interface relay, normally closed contact, 12 V AC/DC, 1/3S, TH-35
PKI-1R-12V electromagnetic interface relay with a normally closed (NC) contact and a 12 V AC/DC coil. The relay is fitted with an LED to indicate its operation.
The PKI-1R-12V is a compact interface relay designed for use in industrial automation systems, electrical installations and control systems.
The device features a normally closed (NC) contact and a coil powered by 12 V AC/DC, allowing it to be used in a wide range of control systems.
When voltage is applied to the relay coil, the NC contact opens, and the operating status is indicated by an LED. When the voltage is removed, the contact returns to the closed state.
Thanks to its narrow 6.2 mm (1/3 module) housing, the relay saves space in control cabinets and switchgear. It is mounted directly onto a standard TH-35 DIN rail.
Application:
-
industrial automation
-
PLC control systems
-
electrical installations in switchgear
-
building automation systems
-
separation of control signals
- Power supply voltage
- 12 V AC/DC
- Maximum AC-1 load current
- 6 A *
- Rated switching voltage
- 250 V AC/30 V DC
- Maximum switching voltage
- 400 V AC/125 V DC
- Surge voltages: contact – coil
- 4 kV
- Power consumption
- 0,3 W
less than 22 mA - Surge voltages: contact gap
- 1 kV
- Kategoria użytkowania
- AC-7a
- Electrical durability
- at least 1×10⁴ cycles
- Mechanical durability
- at least 5×10⁷ cycles
- Contact configuration
- 1×NC
- Power indication
- LED green
- Turn-off time
- poniżej 20 ms
- Operating time
- less than 20 ms
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 1/3 module (6.2 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
