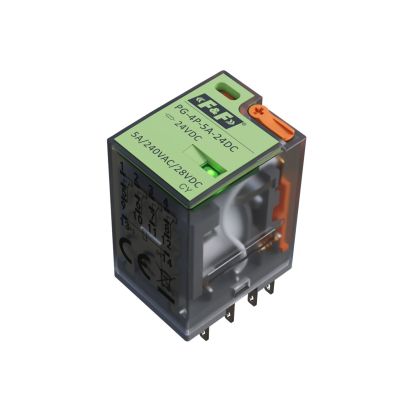

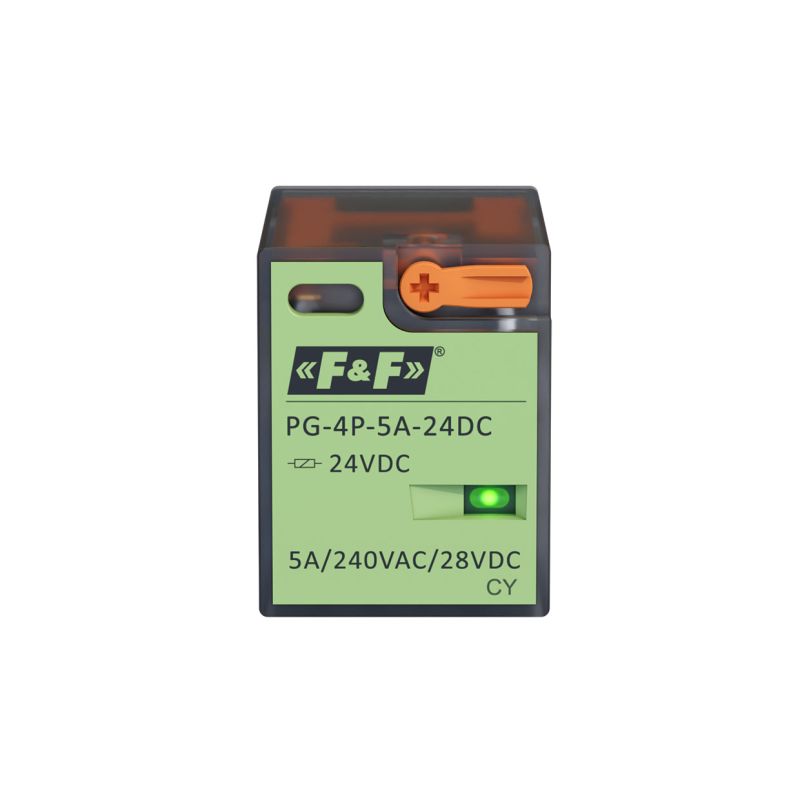

PG-4P-5A-24DC interface relay

PG-4P-5A-24DC, 5902431677781

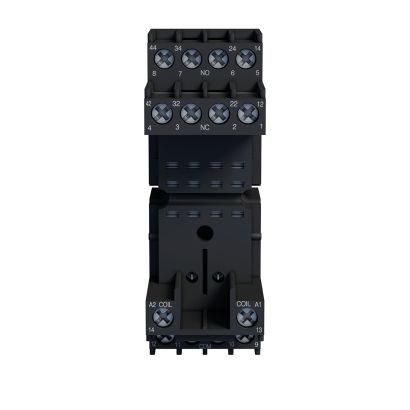

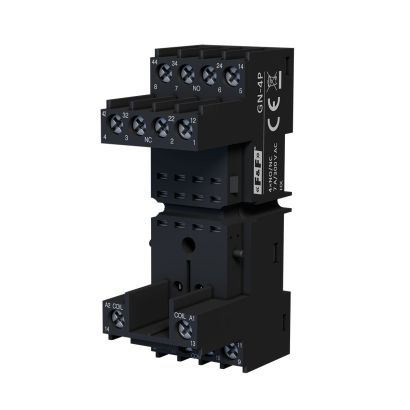

Interface relay with four contacts (4P), 24 V DC coil and 5 A load capacity. AgSnO₂ contact material ensures reliable operation in industrial applications. It is compatible with the GN-4P socket.

Interface relays, also known as coupling, isolation or signal relays, provide a reliable solution for galvanic separation and signal alignment between different control and load levels. With their compact design, wide coil voltage range and a variety of contact configurations, they facilitate the design of modern automation systems. They provide high noise immunity and safe operation in even the most demanding industrial applications. They are a key element for stable and flexible communication between devices.

Compliance with standards:
PN-EN 60999-1:2002
PN-EN 61810-1:2015-09
PN-EN IEC 60947-1:2021-07

PG-4P-5A-24DC
Maximum switching voltage
240 V AC / 28 V DC
Electrical durability
100 000 cykli
Mechanical durability
10 000 000 cykli
Insulation resistance
˃1000 MΩ 500 V DC
Application
GN-4P
Wilgotność względna
5÷85%
Current carrying capacity [A]
5
Dimensions (W x H x D) [mm].
21x27x43
Number and type of contacts
4P
Contact material
AgSnO2
Maximum inrush current
5
Rated coil voltage
24 V DC
Distance between the coil and the contacts [mm]
6
Rezystancja zestyku [mΩ]
≤100
Minimum contact current [mA]
10
Test voltage between the coil and the contacts [V/min]
5000/1
Contact gap test voltage [V/min]
1000/1
Maximum AC-1 switching capacity [VA]
3320
Maximum DC switching power [W]
360
Rated power consumption (coil) [W]
0,53
Response/recovery time (typical values) [ms/ms]
15/8
Vibration resistance [mm], DA (double amplitude) 10–55 Hz
1
Shock resistance [m/s²]
98
Ambient temperature
-40÷85°C
