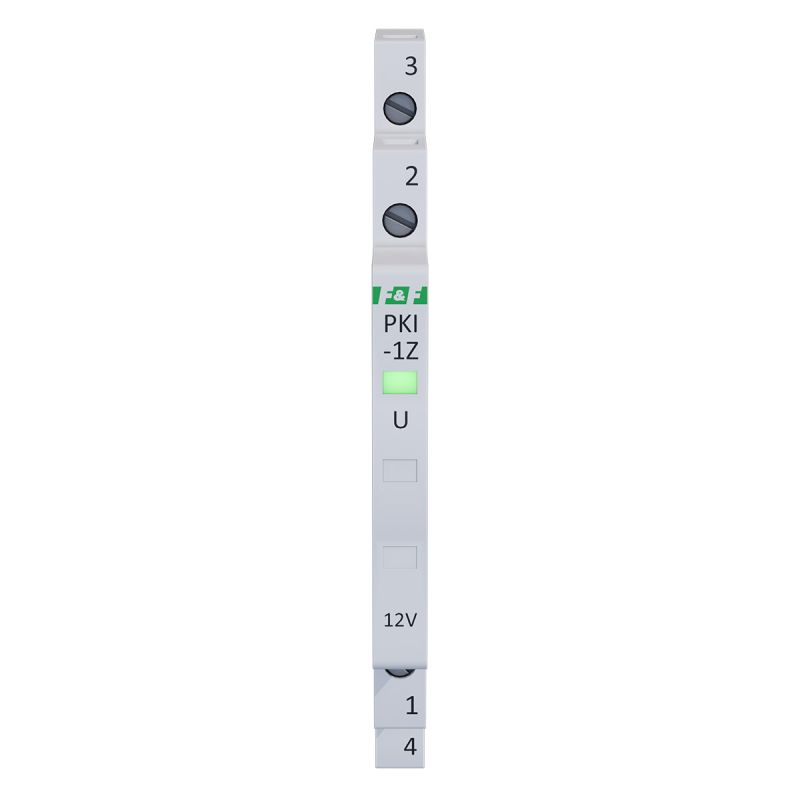

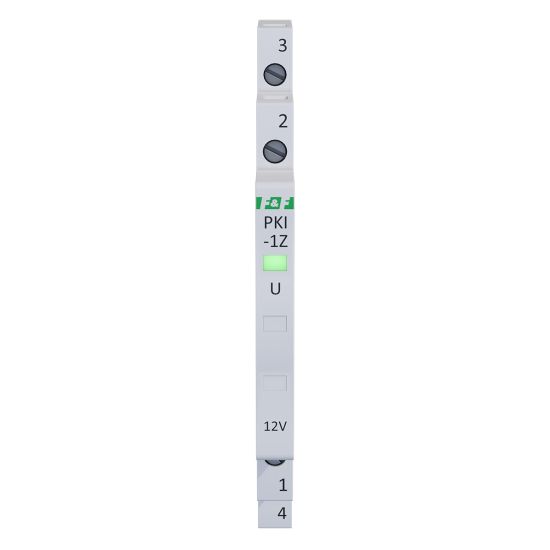

PKI-1Z-12V – interface relay, normally open contact, 12 V AC/DC, 1/3S, TH-35

The PKI-1Z-12V is an electromagnetic interface relay designed for use in industrial automation systems, electrical installations and control systems.

The device is equipped with a normally open (NO) contact and a coil powered by 12 V AC/DC, enabling it to work with a wide range of control systems and PLCs.

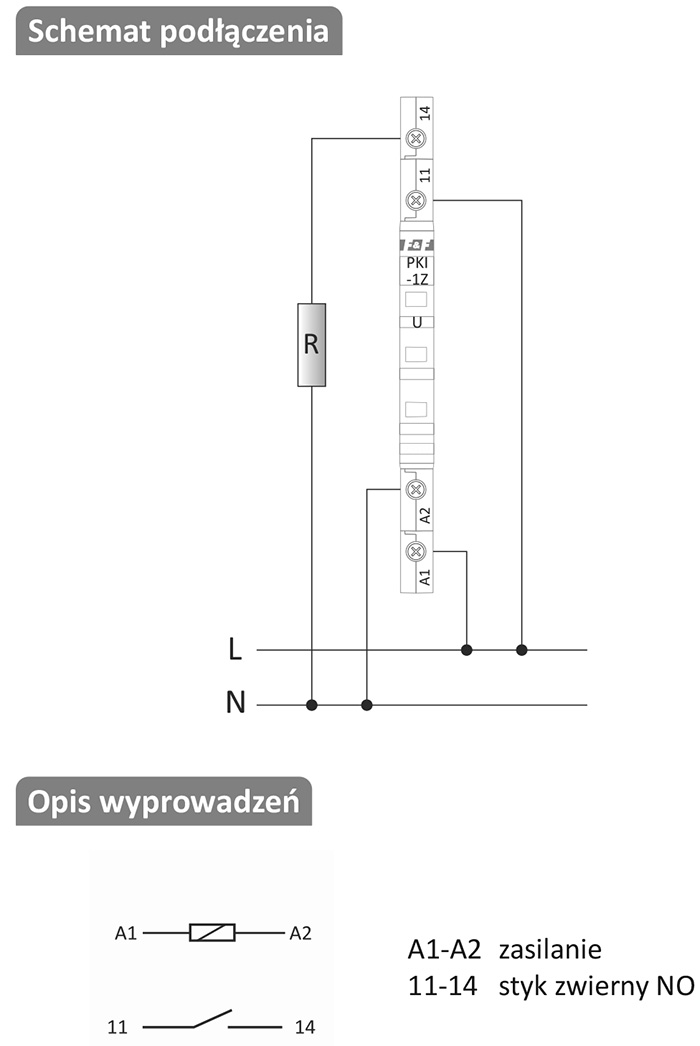

When voltage is applied to the relay coil, the NO contact closes, enabling the controlled circuit to be activated. The relay’s active operating state is indicated by an LED, which facilitates monitoring of the device’s operation within the installation. When the supply voltage is removed, the contact returns to the open state.

Thanks to its narrow 6.2 mm (1/3 module) housing, the relay allows for efficient use of space in switchboards and control cabinets. The device is mounted directly onto a standard TH-35 DIN rail.

Application

• industrial automation

• PLC control systems

• machine and equipment control

• electrical installations in control cabinets

• building automation

• separation of control signals
