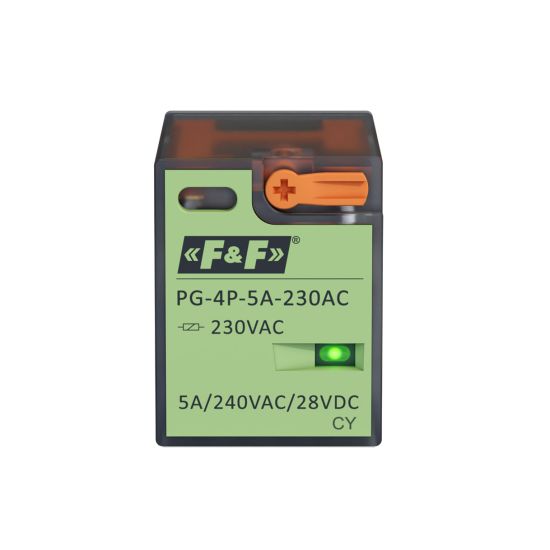

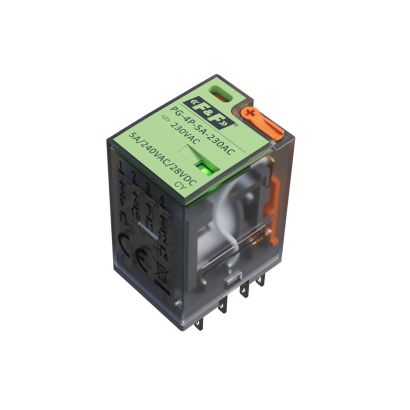

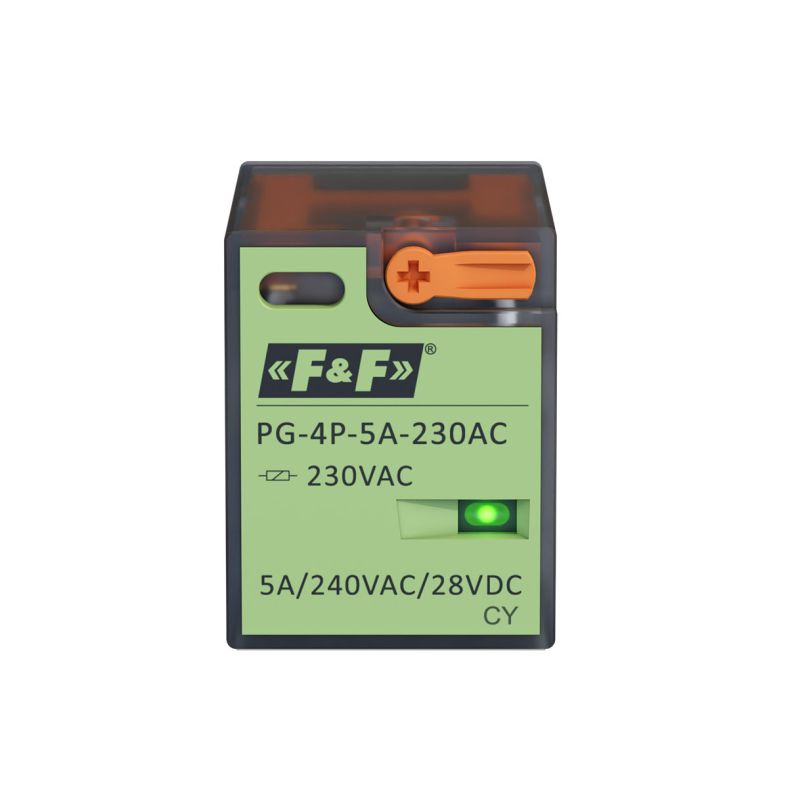

PG-4P-5A-230AC interface relay
Interface relay with four contacts (4P), 230 V AC coil and 5 A load capacity. The contact material AgSnO₂ ensures reliable operation in industrial applications. Works with GN-4P socket outlet.
Interface relays, also known as coupling, isolation or signal relays, provide a reliable solution for galvanic separation and signal alignment between different control and load levels. With their compact design, wide coil voltage range and a variety of contact configurations, they facilitate the design of modern automation systems. They provide high noise immunity and safe operation in even the most demanding industrial applications. They are a key element for stable and flexible communication between devices.
Compliance with standards:
PN-EN 60999-1:2002
PN-EN 61810-1:2015-09
PN-EN IEC 60947-1:2021-07
- Application
- GN-4P
- Current carrying capacity [A]
- 5
- Dimensions (W x H x D) [mm].
- 21x27x43
- Number and type of contacts
- 4P
- Contact material
- AgSnO2
- Maximum inrush current
- 5
- Rated coil voltage
- 230 V DC
- Maximum switching voltage
- 240 V AC / 28 V DC
