Roller blind controller STR-R (Rain detector)

Roller blind controller STR-R (Rain detector)

STR-R, 5908312597773

Product description

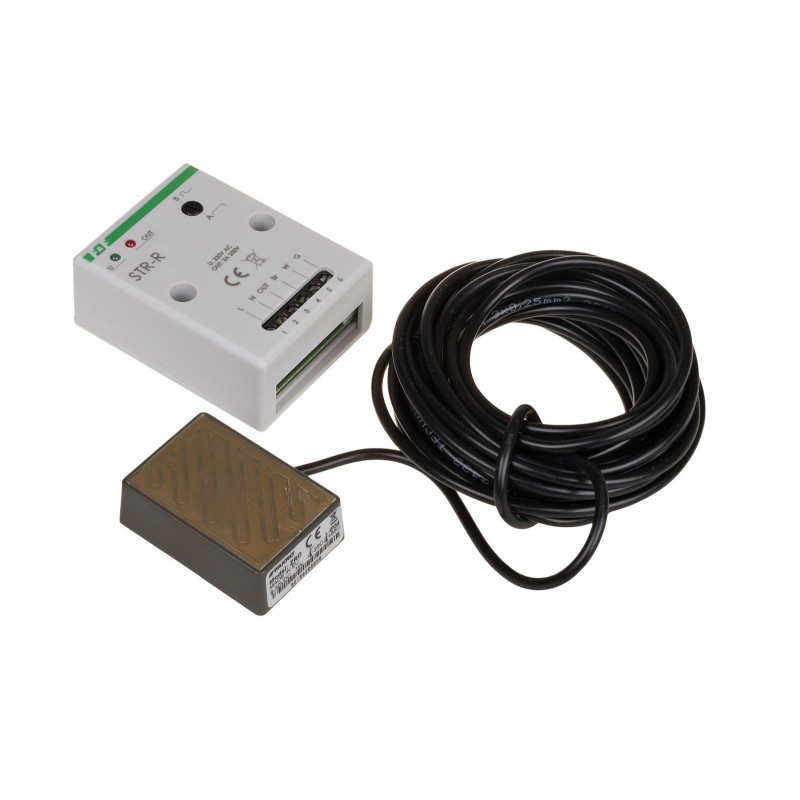

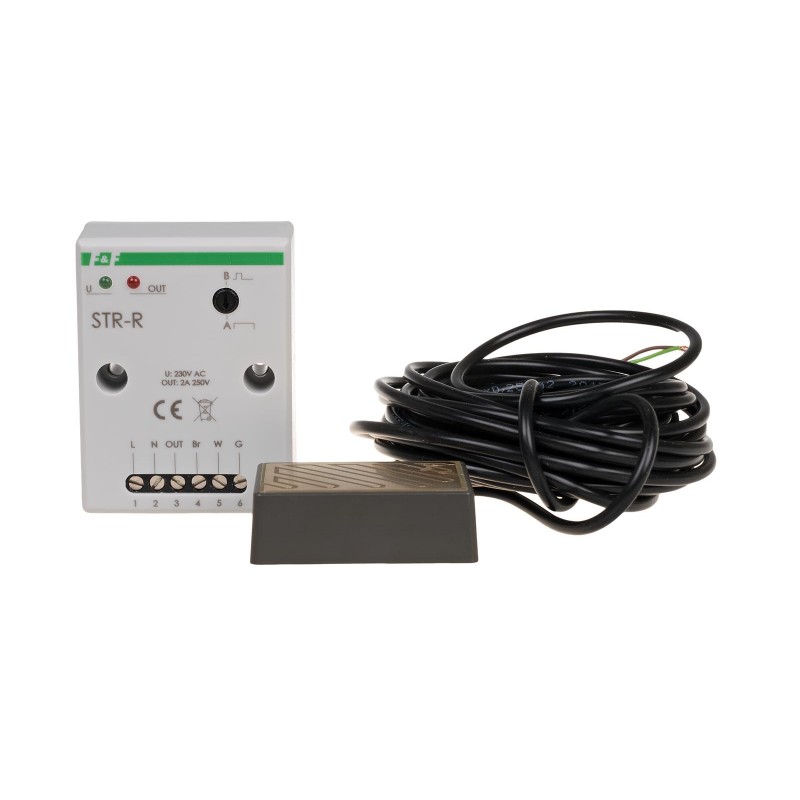

STR-R controller along with external rainfall sensor is designed to detect rainfall. Combined with STR-3 or STR-4 roller blind controller it allows to build a system that in the case of rain closes window roller blinds or retracts awnings.

Functioning
The controller operates in two modes:

Continuous
With the start of a rainfall the internal contact relay closes and remains closed for the entire duration
of rainfall. Combined with STR-3 and STR-4 roller blind controllers the continuous mode ensures closing of roller blinds at a time of rainfall and locking them in closed position until the end of rainfall.

Pulse
With the start of a rainfall the internal contact relay closes for approx. 1.5 second, passing to roller blind's controllers a single command of closing. Combined with STR-3 and STR-4 roller blind controllers  the pulse mode ensures closing of roller blinds at the time of rainfall, but then the user has the ability to raise the roller blinds at any time.

Selection of the operating mode is performed using the knob on the housing of the controller.


Power supply voltage100÷265 V AC
Dimensions of the precipitation sensor55×50×13 mm
Degree of protection for the rain sensorIP65
Terminalpluggable terminal blocks 2,5 mm²
Power consumption waking / working0,2 W / 0,6 W
Working temperature-15 ÷ 50°C
Dimensions51×67×26 mm (± 1 mm)
Assemblyon wall
Ingress Protection MarkingIP20


Connection diagram 230V





Connection diagram 24V
