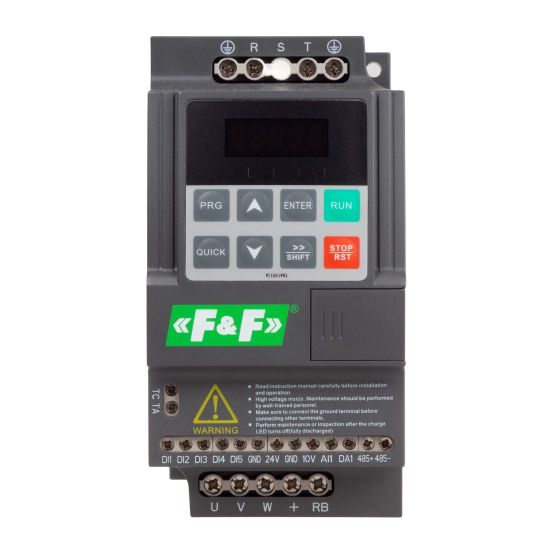

FA-3HS-022 vector inventer
Miniature inverter for three-phase asynchronous motors.
Input voltage 3 x 400 V
Output voltage 3 x 400 V
Maximum power 2.2 kW
Inverters are electronic frequency converters designed for the smooth start-up, stopping and speed control of three-phase asynchronous motors.
Types
|
Type inverter |
Input voltage |
Input current |
Output voltage |
Output current |
Maximum motor power |
Length L |
Width W |
Height H |
|
V |
A |
V |
A |
kW |
mm |
mm |
mm |
|
|
FA-1LS-004 |
1 x 230 |
5.4 |
3 x 230 |
2.5 |
0.4 |
138 |
72 |
123.5 |
|
FA-1LS-007 |
1 x 230 |
8.2 |
3 x 230 |
4.0 |
0.7 |
|||
|
FA-1LS-015 |
1 x 230 |
14.0 |
3 x 230 |
7.0 |
1.5 |
|||
|
FA-1LS-022 |
1 x 230 |
23.0 |
3 x 230 |
10.0 |
2.2 |
185 |
134 |
|
|
FA-3HS-007 |
3 x 400 |
4.3 |
3 x 400 |
2.5 |
0.7 |
138 |
123.5 |
|
|
FA-3HS-015 |
3 x 400 |
5.0 |
3 x 400 |
3.8 |
1.5 |
|||
|
FA-3HS-022 |
3 x 400 |
5.8 |
3 x 400 |
5.1 |
2.2 |
|||
|
FA-3HS-040 |
3 x 400 |
10.5 |
3 x 400 |
9.0 |
4.0 |
185 |
134 |
|
|
FA-3HS-055 |
3 x 400 |
14.6 |
3 x 400 |
13.0 |
5.5 |
- Input voltage
- 3 x 400 V
- Output current
- 5,1 A
5,8 A - Maximum engine power
- 2,2 kW
- Output voltage
- 3 x 400 V
- Communication interface
- RS-485 (MODBUS RTU)
- Number of digital inputs
- 5
- Number of analog inputs
- 1
- Analogue inputs - voltage
- 1
- Analogue inputs - current
- 1
- Number of analog outputs
- 1
- Analogue outputs - current
- 1
- Analogue outputs - voltage
- 1
- Number of relay outputs
- 1
- Length L
- 138 mm
- Width W
- 72 mm
- Height H
- 123,5 mm
- Working temperature
- -10÷40°C
Panel czołowy falownika
