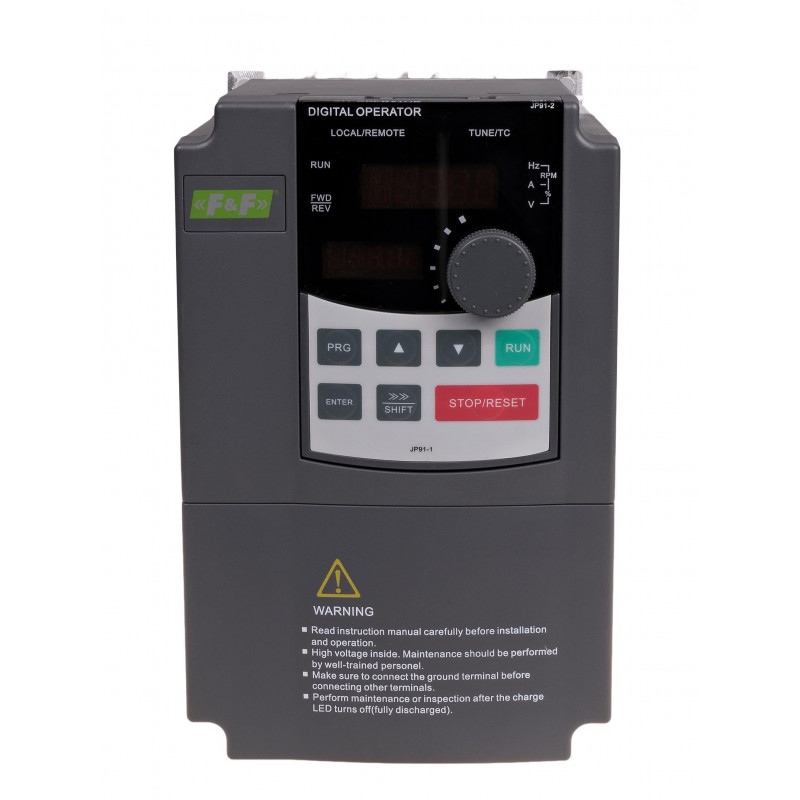

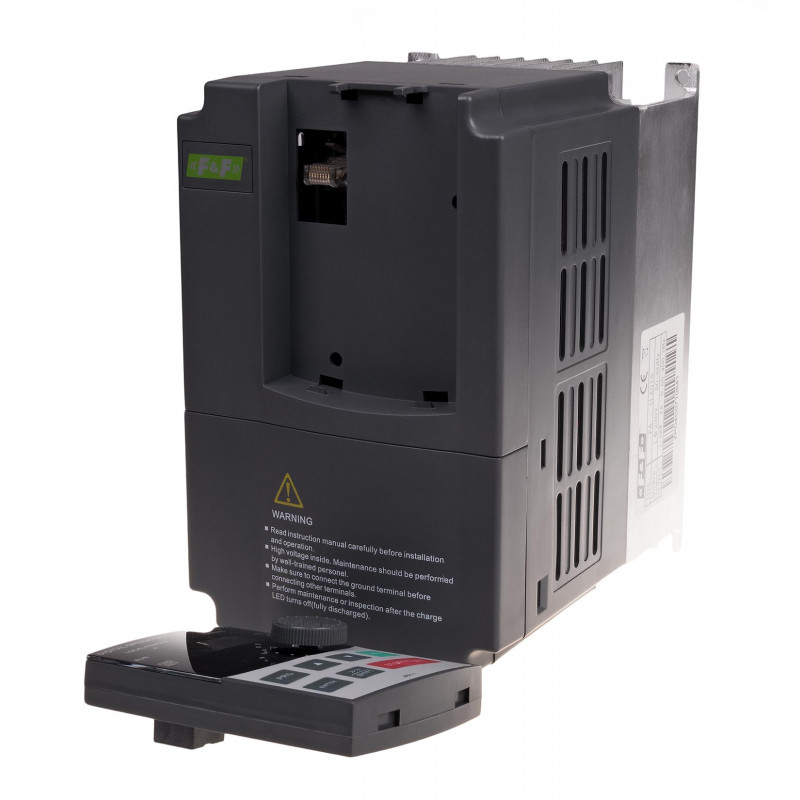

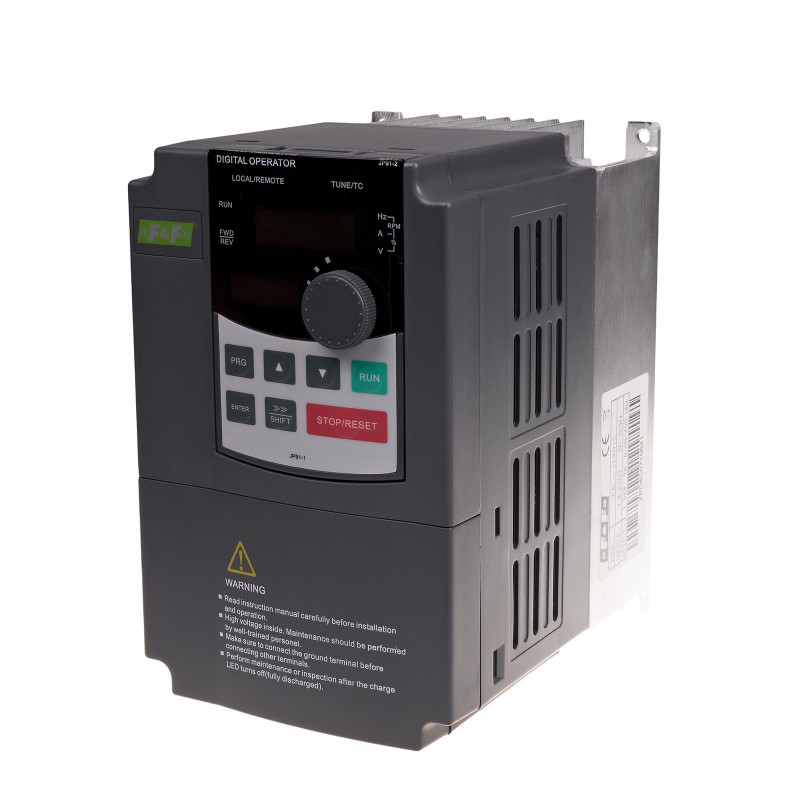

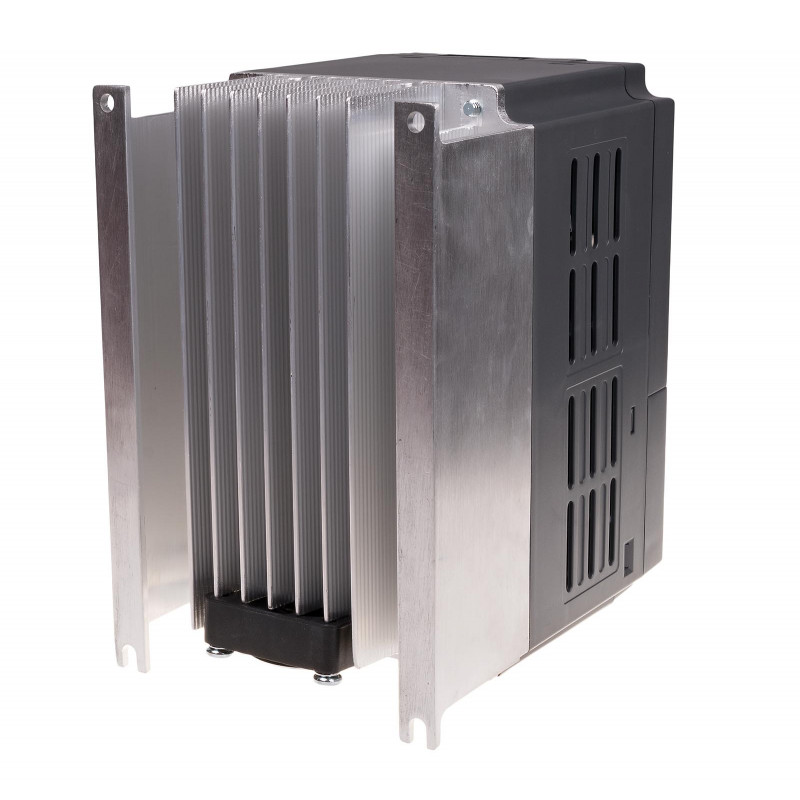

FA-1LX007 inverter

FA-1LX007 inverter


Product description

Single phase inverter.

Input voltage 1 x 230 V
The output voltage is 3 x 230 V
Maximum power 0.75 Kw.





Input voltage1 x 230 V
Output current8,2 A
Output voltage3 x 230 V
Output current4:00 AM
Maximum engine power0,75 kW
Number of digital inputs6
Inputs - controluniversal
Number of analog inputs2
Analogue inputs - voltage2
Analogue inputs - current2
Number of analog outputs2
Analogue outputs - current2
Analogue outputs - voltage2
Number of relay outputs1
Number of transistor outputs2
Length L185 mm
Width W120 mm
Height H165 mm
Working temperature-10÷40°C
