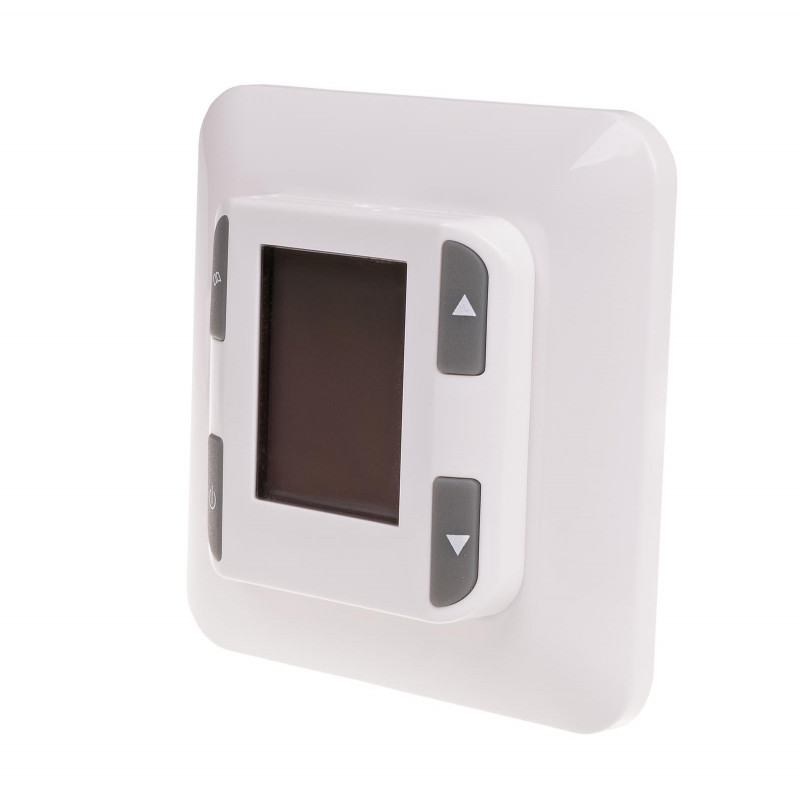

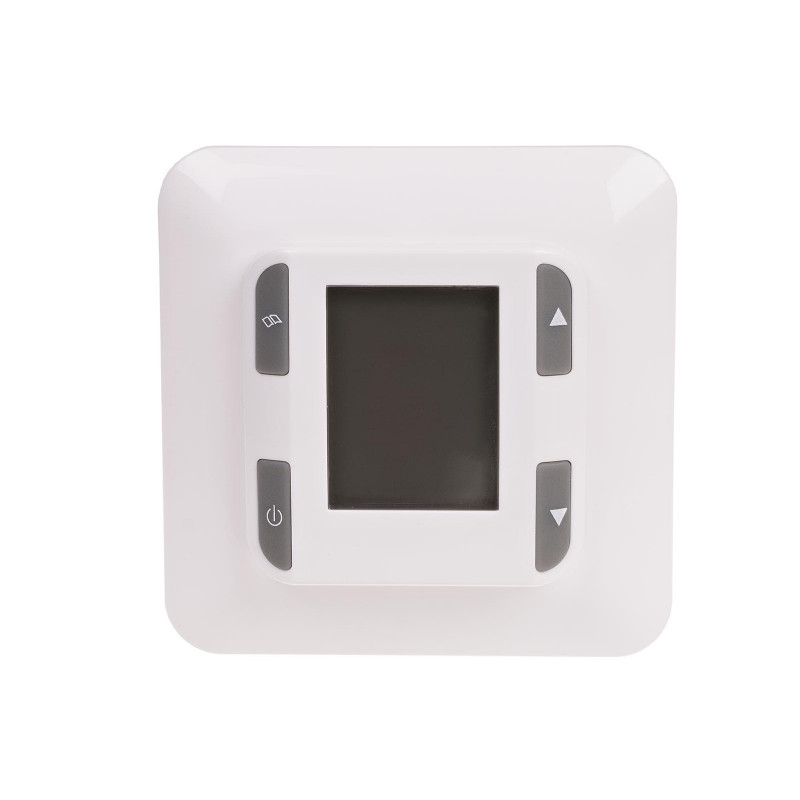

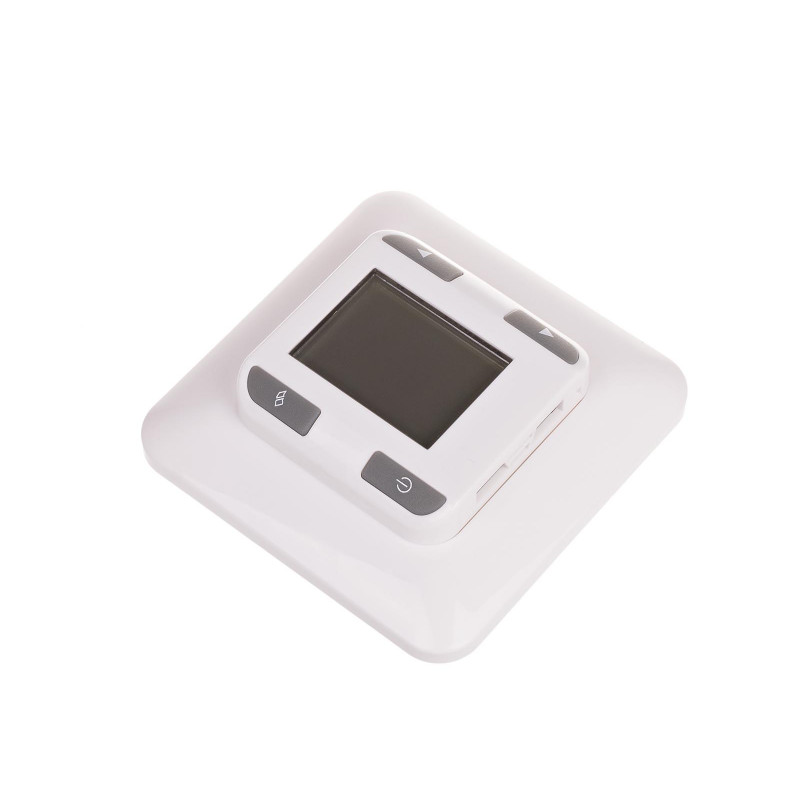

Temperature regulator RT-825

Temperature regulator RT-825

RT-825

Weekly programmer. Temperature range: 5÷60ºC.
RT-825  temperature regulator is designed for direct control of heating devices fed by a voltage of 230V, maximum current of less than 16A.

Functions
* the control panel enables programming and monitoring the device operation
* the breaker switch located on the front panel enables switching off the power supply of the whole heating system
* maintaining a preset temperature in accordance with programmed hours and days of the week
* possibility of programming 4 intervals of a required temperature per 24 hours
* 12 program entries: 4 entries concerning the required temperature for working days (Pn-Pt: Monday through Friday); 4 entries concerning the required temperature for Saturday (So: Saturday) and 4 entries concerning the required temperature for Sunday (Nd: Sunday)
* possibility of a quick, manual correction of the currently maintained temperature
* adjustable hysteresis
* 2 temperature sensors: an internal one and an external one
* 3 operation modes of the regulator: operation with the internal temperature sensor; operation with the external temperature sensor; operation with two temperature sensors
* in the mode of operation with two temperature sensors, the external sensor is the limiting one with an adjustable temperature within the range of 15÷50°C


Attention!

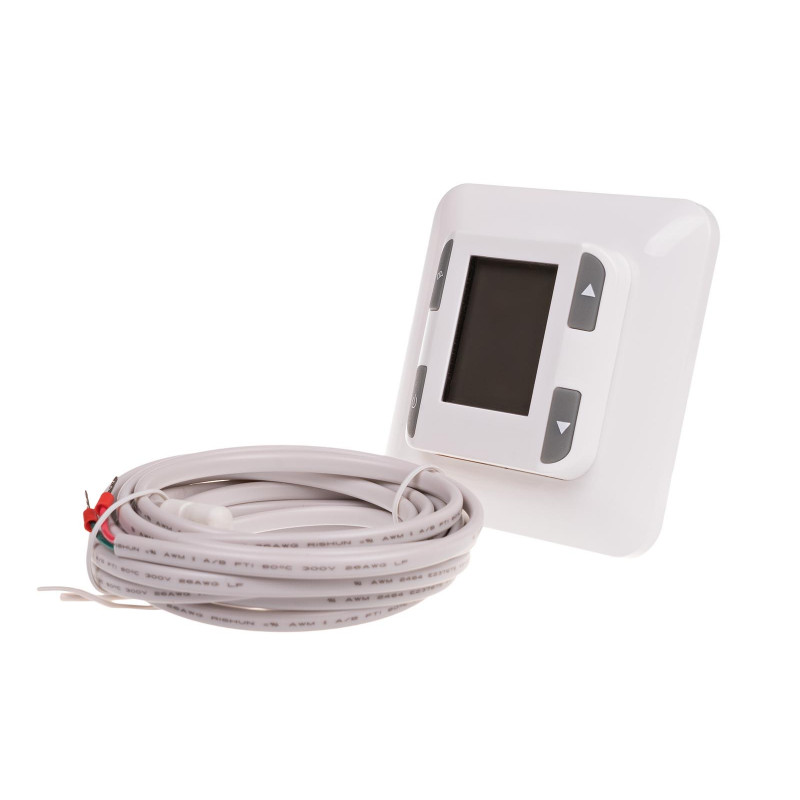

The probe is in set with temperature regulator.



Power supply voltage230 V AC
The executive elementrelay
Maximum load current16 A
Contact configuration1 × NO
Separation of the contactNO
Temperature regulation range5÷60°C
Hysteresis1°C
Accuracy of setting1°C
Accuracy of measurement±1°C
Time of clock operation1 h
Temperature probeRT45
Reading accuracy0,1°C
Internal temperature sensorNTC
terminalscrew terminals 1,5 mm²
Tightening torque0,4 Nm
Power consumption0,8 W
Working temperature-10÷50°C
dimensions front: 86×86 mm; gł.22 mm, tył: Ø60; gł.27,5 mm
Assemblyin a flush-mounted box Ø60
Level of securityIP20
