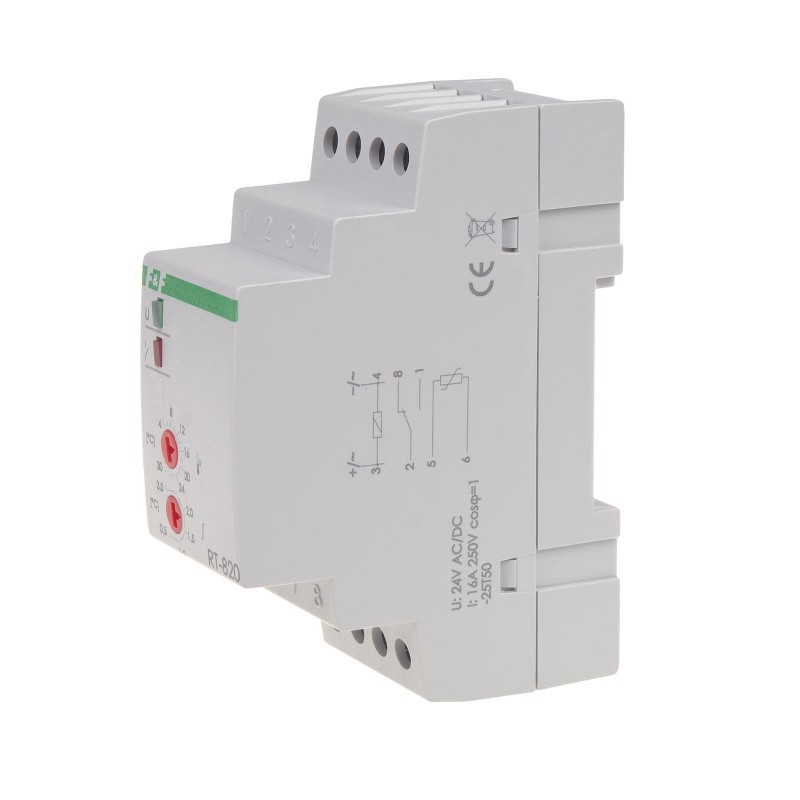

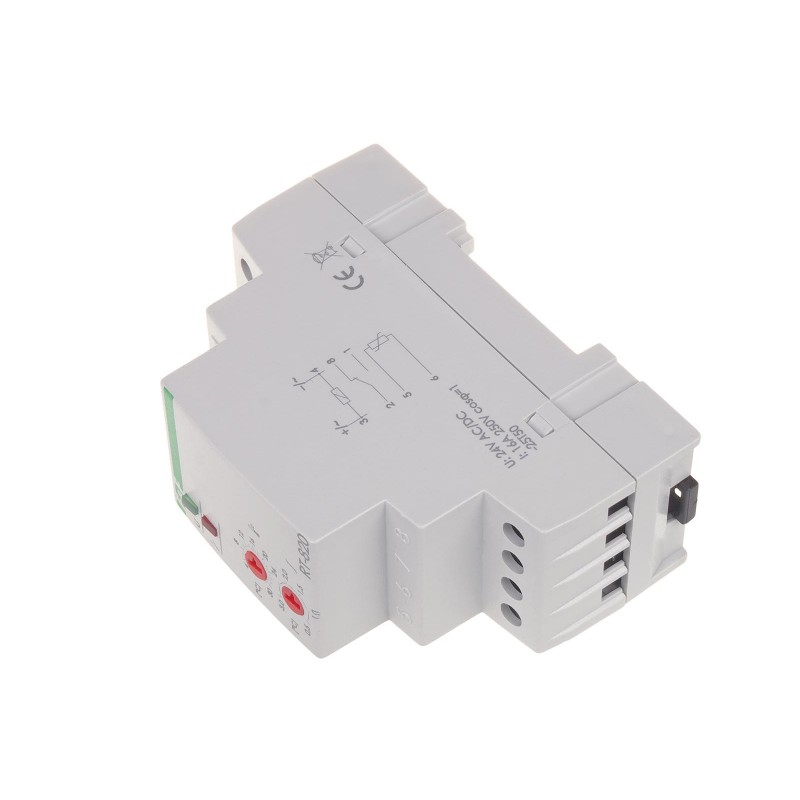

Temperature regulator RT-820

Reference: RT-820, EAN13: 5908312595700

Product description

For general use. Temperature range 4÷30 °C.
Temperature regulators may be used for equipment control in anti-freeze systems which prevent the freezing of gutters, the accumulation of ice on stairs, vehicles, etc.

Functioning
The power supply to the generator is indicated by the green LED. Until the required ambient temperature is achieved, the contact of the regulator remains in position 2-1 and the heating device is active. Once the set value is achieved, the contact shifts into position 2-8 and the heating or ventilation device is turned off. Any drop in temperature by the hysteresis value will activate the heating device again (contacts 2-1 closed) until the set temperature value is achieved.

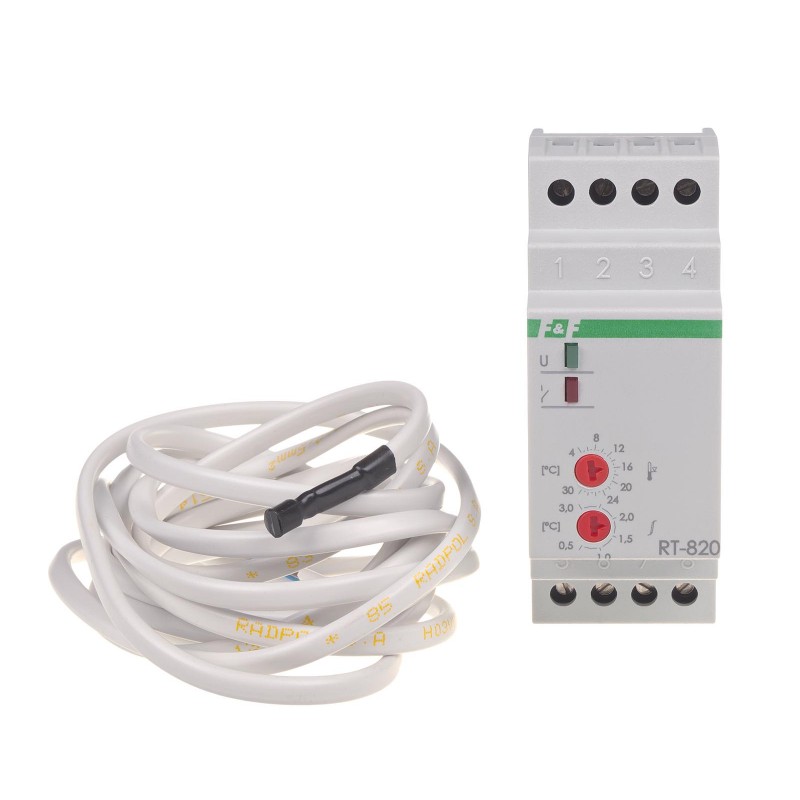

RT probe
design for	RT-820, RT-821, RT-822
temperature sensor	KTY 10-6
probe dimensions	Ø5; h=20mm
sensor silolation	thermoshrinkable shirt
cable	OMY 2×0,34mm²; l=2,5m

RT823 probe
design for	RT-823
temperature sensor	KTY 10-6
probe dimensions	Ø8; h=40mm
sensor silolation	brass muff
cable	SIHF 2×0,5mm²; l=2,5m heatresist

Power supply voltage	230 V AC
The executive element	relay
Maximum load current	16 A
Contact configuration	1 × NO/NC
Separation of the contact	YES
Temperature regulation range	4÷30°C
Hysteresis - adjustable	0,5÷3°C
Accuracy of setting	1°C
Accuracy of measurement	±1°C
Temperature probe	RT/RT2
Terminal	pluggable terminal blocks 4,0 mm²
Tightening torque	0,5 Nm
Power consumption	1,1 W
Working temperature	-25 ÷ 50 °C
Dimensions	2 modules (35 mm)
Assembly	on rail 35 mm
Ingress Protection Marking	IP20
