Timing relays PCS-516 DC

Timing relays PCS-516 DC

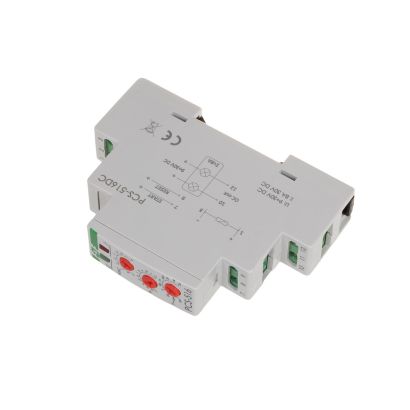

PCS-516DC

Timing relays are devised to time the control of industrial and domestic automatic control engineering systems (e.g. ventilation, heating, lighting, signalling, etc.).
10 functions with START and RESET control input.

Functioning
The relay realizes the selected function of work in accordance with the set time regime. The selection of a specific time range and the function of the relay operation consists in setting the appropriate combination of rotary coding switches.

Features of relays in the DC version:
* Semiconductor outputs (transistor in open OC collector system)
* No problems with the wear of the relay contacts - dedicated to work with a high switching frequency


Functions




DELAYED ON
After applying the supply voltage (U green LED is on), the output remains open and the set operating time "t" is measured. After measuring the time "t", the output switches on (red LED is on). Re-execution of the relay operation mode is possible after disconnecting the supply voltage and switching it on again.





DELAYED OFF
Until the relay is switched on, the output remains open. After applying the supply voltage (green LED is lit) the output will be closed
and the set operating time "t" is measured (red LED illuminated). Re-execution of the relay operation mode is possible after disconnecting the supply voltage and switching it on again.



FF PCS-516 diag C.gif

DELAYED ON - CYCLIC
The mode of operation of the delayed switching is carried out cyclically at equal intervals of the set working time and break.



FF PCS-516 diag D.gif

DELAYED OFF - CYCLIC
The mode of operation of the delayed switching off is carried out cyclically at equal intervals of the set working time and break.



FF PCS-516 diag E.gif

a pulse of 0.5 s after a set time "t".




FF PCS-516 diag F.gif

Generation of a single pulse with time "t" on the rising edge of the START signal. During the timing, the system does not respond to START pulses.



FF PCS-516 diag G.gif

Generation of a single pulse with time "t" on the falling edge of the START signal. During the timing, the system does not respond to START pulses.



FF PCS-516 diag H.gif

Delay on switching off with the possibility of sustaining. The rising edge of the START signal causes the relay to be activated, while the falling edge causes the timing to start. Entering the START signal during timing causes the cycle to be extended by another time "t" with a falling edge.



FF PCS-516 diag I.gif

Generation of a single pulse 0.5 s after the time "t" triggered by the falling edge of the START signal.



FF PCS-516 diag K.gif

Turning off the relay for a specific time "t" with the rising edge of the START signal. During the timing, the system does not respond to the START signal.

Attention!
* Providing the RESET voltage during the function execution causes:
   - for the functions A, B, C, D, F, the implementation of the operating mode from the beginning.
   - for the F, G, H, I functions, return of the relay to the initial state and waiting for the START signal.
   - for K function, permanent contact of the relay in position 11-12.
* Setting the rotary switch of the time range in position:
* When the power is turned on, the system does not react to changing the time range settings.
* Work with the newly set time range occurs after switching off and restarting the power supply.
* With the power supply switched on within the set time range, it is possible to smoothly adjust the time in the range of the time setting value.


Power supply voltage9├Ě30 V DC
Operating modemultifunctional
The executive elementtransistor
Maximum load current8 A DC
Delay of operation50 ms
Control pulse currentless than 1 mA
Contact status indicationLED red
Operating time - adjustable0,1 s ├Ě 576 godz.
Power indicationLED green
terminalscrew terminals 2,5 mm┬▓
Tightening torque0,4 Nm
Power consumption0,8 W
Working temperature-25 ├Ě 50 ┬░C
dimensions1 module (18 mm)
Assemblyon rail 35 mm
Level of securityIP20
