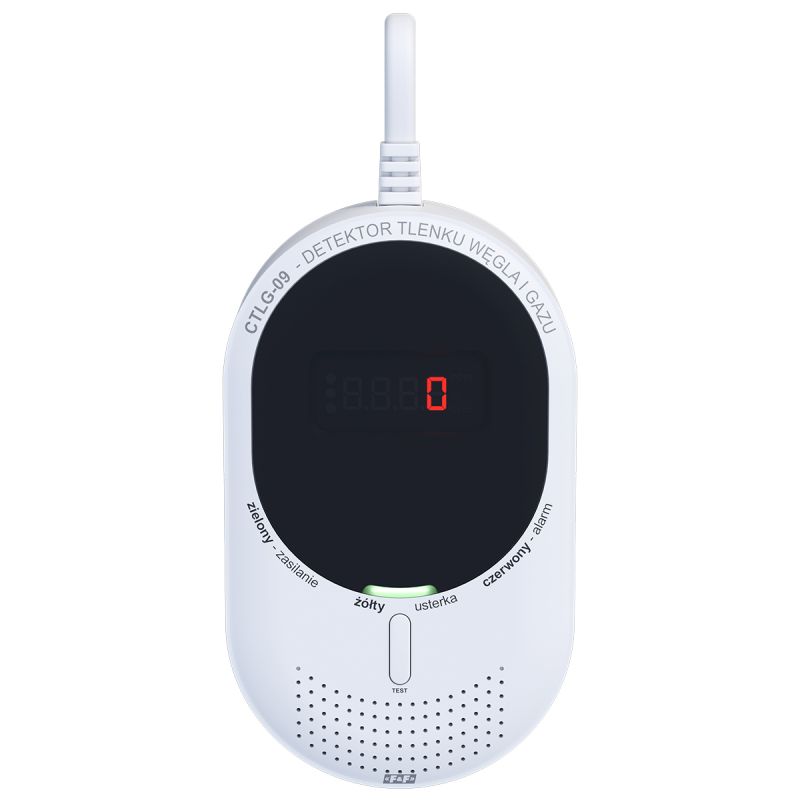

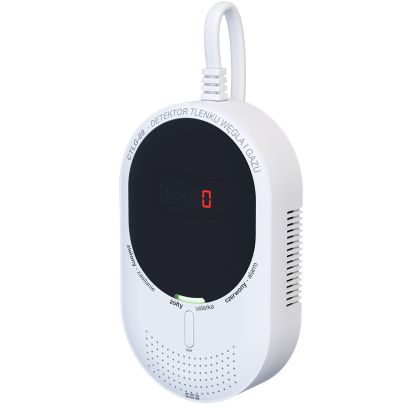

Carbon monoxide and gas detector CTLG-09

Purpose

The CTLG-09 sensor enables accurate measurement of carbon monoxide and methane levels in the environment. At the moment of detecting concentrations dangerous to health or posing a risk of explosion, the device activates the audible and visual signalling. The CTLG-09 is not designed for the detection of smoke or gases other than natural gas (methane CH4). The modern electronic construction of the sensor ensures high operational reliability and low energy consumption, which allows long-term use. The mechanical construction of the sensor protects against unauthorised access.

Product characteristics

The CTLG-09 detector is designed for continuous monitoring of the level of carbon monoxide (Chad) and natural gas (methane) in interiors. It does not identify smoke or gases other than methane(it is not dedicated to the detection of LPG (propane-butane) gas from cylinders!). An audible and visual alarm is activated when a hazard is detected.

• Audible alarm: ≥85 dB from a distance of 3 m

• Alarm threshold for methane: >8.0% LEL (4000 ppm)

• Alarm thresholds for carbon monoxide: 30 ppm (alarm in 120 min), 50 ppm (alarm in 60-90 min), 100 ppm (alarm in 10-40 min), 300 ppm (alarm in 0-3 min)

• Main power supply: 100÷240 V AC, 50 Hz

• Emergency power supply: 3.6 V battery (18650 model)

• Sensor lifetime: 5 years

• The sensor's mechanical design protects it from unauthorised access.

• The device independently verifies its operation and informs of any abnormalities.

• The high class of the product is confirmed by the certificate of conformity to EN 50291-1:2018+AC:2021-01, EN 50194-1:2009.

• SGS certification
• Tested in Poland
