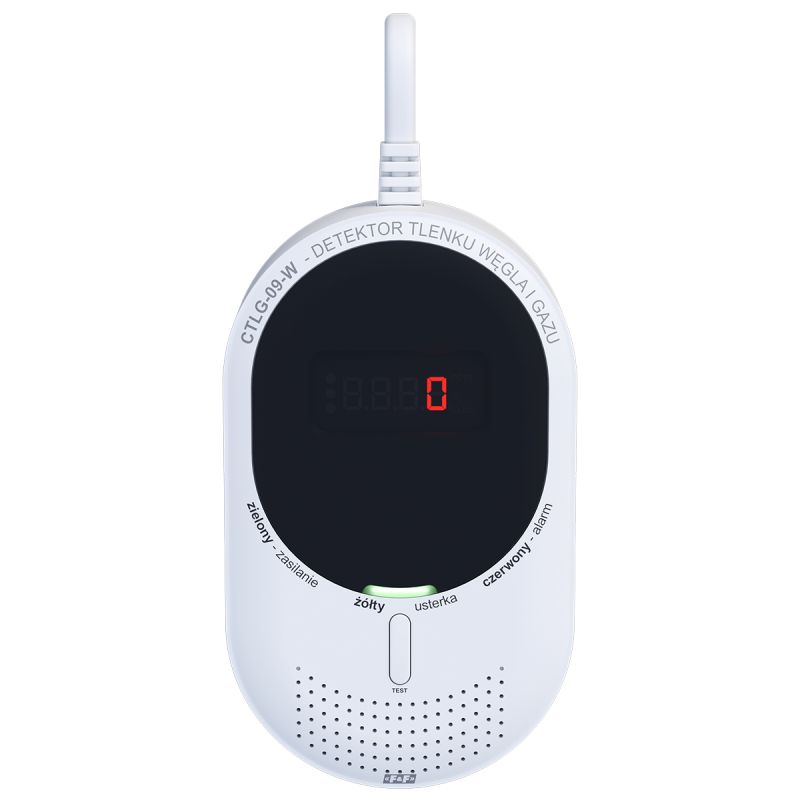

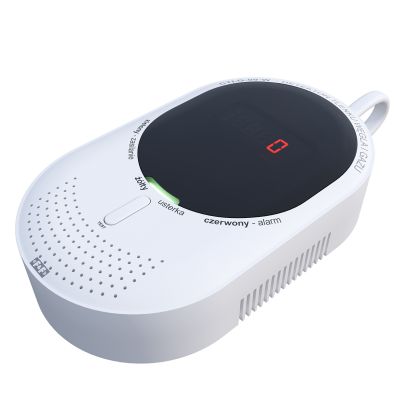

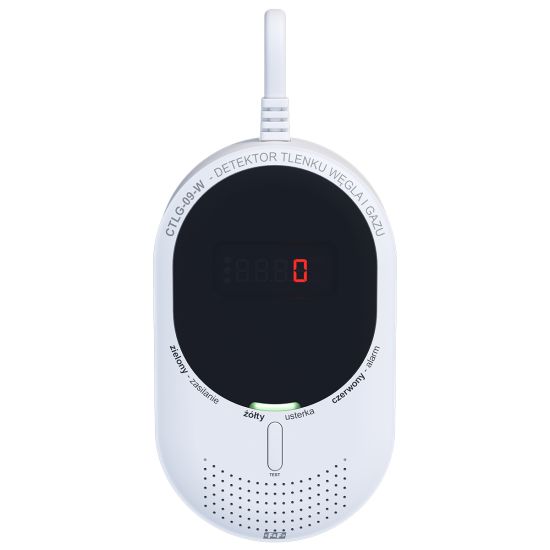

Carbon monoxide and gas detector CTLG-09-W

Purpose

The detector allows accurate measurement of carbon monoxide and methane in the air. Upon detection of health-threatening or explosion-threatening concentrations, the device activates audible and visual signalling. Integration with the Tuya Smart app via Wi-Fi allows remote monitoring and alarm notifications to be received on the phone. The device does not detect smoke or gases other than natural gas (methane). Its state-of-the-art electronic design guarantees reliability and low power consumption, ensuring years of service.

Operation

The CTLG-09-W monitors the level of carbon monoxide (carbon black) and natural gas (methane) in enclosed spaces. Smoke and gases other than methane are notdetected (LPG (propane-butane) gas from cylinders is not detected!). An audible and visual alarm is activated when a hazard is detected.

• Audible alarm: ≥85 dB from a distance of 3 m

• Alarm threshold for methane: >8.0% LEL (4000 ppm)

• Alarm thresholds for carbon monoxide: 30 ppm (alarm in 120 min), 50 ppm (alarm in 60-90 min), 100 ppm (alarm in 10-40 min), 300 ppm (alarm in 0-3 min)

• Wifi communication
• Integration with TUYA app

• Main power supply: 100÷240 V AC, 50 Hz

• Back-up power supply: 3.6 V battery (18650 model)

• Sensor lifetime: 5 years

• Protection factor IP 40.

• The mechanical design of the sensor protects against unauthorised access.

• The device independently verifies its operation and informs of any abnormalities.

• The high class of the product is confirmed by the certificate of conformity to EN 50291-1:2018+AC:2021-01, EN 50194-1:2009.

• SGS certification
• Tested in Poland

Remote access configuration

The CTLG-09-W detector provides remote access and control using the Tuya Smart app. The application can be downloaded directly from the shops:
