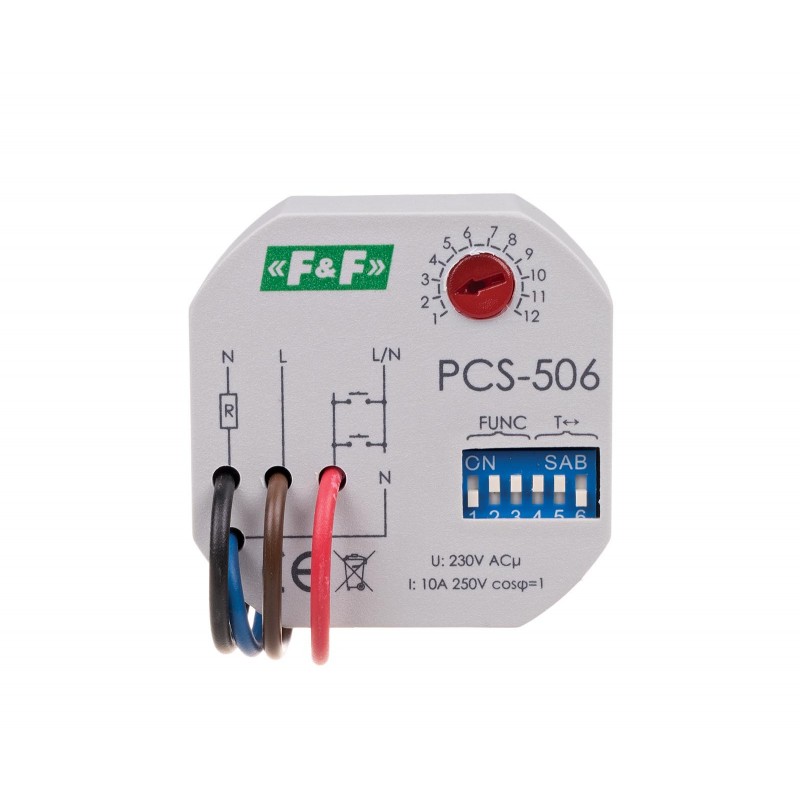

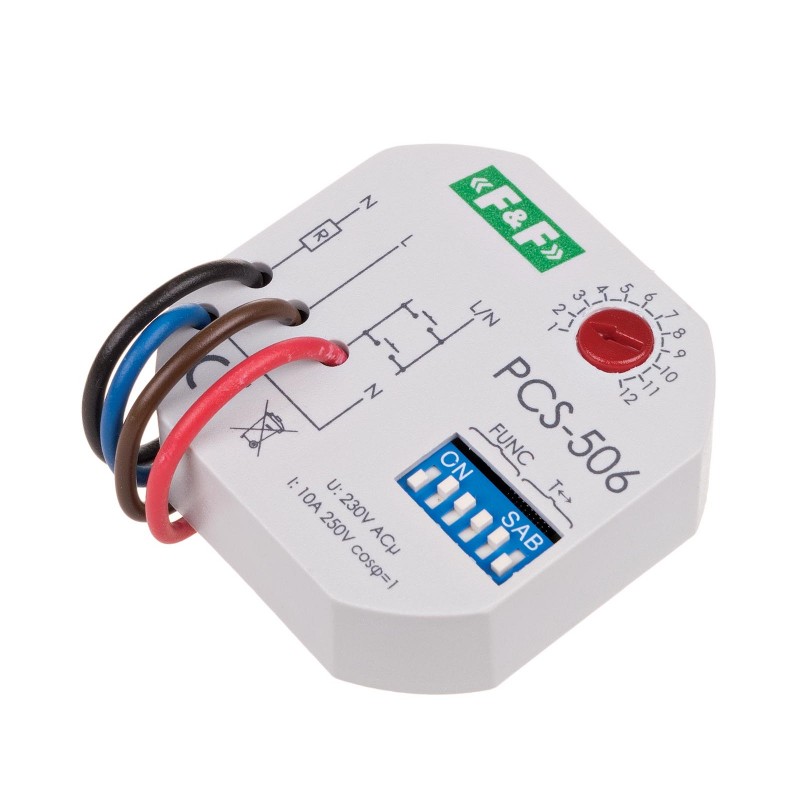

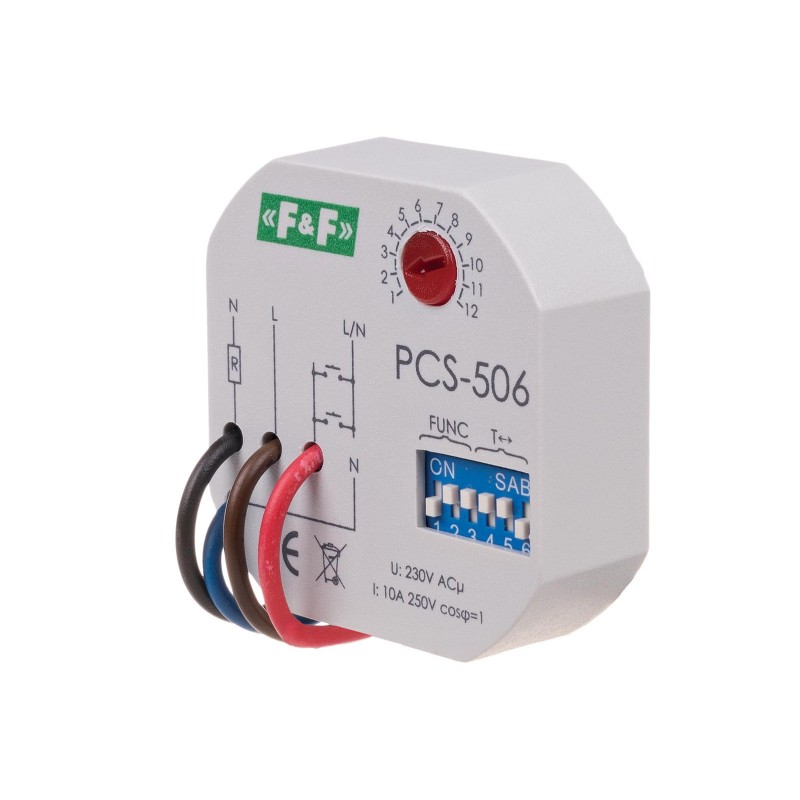

Timing relays PCS-506
Timing relays PCS-506
PCS-506, 5908312595380
Product description
Timing relays are devised to time the control of industrial and domestic automatic control engineering systems (e.g. ventilation, heating, lighting, signalling, etc.).8 functions with START control input.
Functioning
The required time range and the operation mode of the relay is selected by choosing the proper combination of the switches (black field in the diagram stands for the switch position).
Attention!
Setting the wheel regulator in the:
* ON position with power supply activated causes the contact to be permanently opened.
* OFF position with power supply activated causes the contact to be permanently closed.
* With the power supply on, the system does not respond to time range setting modifications.
* The newly set time range is active after the power supply has been turned off and on.
* With the power supply on, it is possible to regulate the preset time freely within the selected time range.
| Power supply voltage | 230 V AC |
| Operating mode | multifunctional |
| The executive element | relay |
| Maximum load current | 10 A |
| Contact configuration | 1 × NO |
| Separation of the contact | NO |
| Delay of operation | 50 ms |
| Control pulse current | less than 1 mA |
| Operating time - adjustable | 0,1s÷24h |
| Terminal | 4×DY 1mm²; length: 10 cm |
| Power consumption | 0,8 W |
| Working temperature | -25 ÷ 50 °C |
| Dimensions | Ø 55 mm; height: 13 mm |
| Assembly | in a flush-mounted box Ø60 |
| Ingress Protection Marking | IP20 |
PCS-506 manual (725.8k)
PCS-506 Bedienungsanleitung (731.36k)
Working mode:
