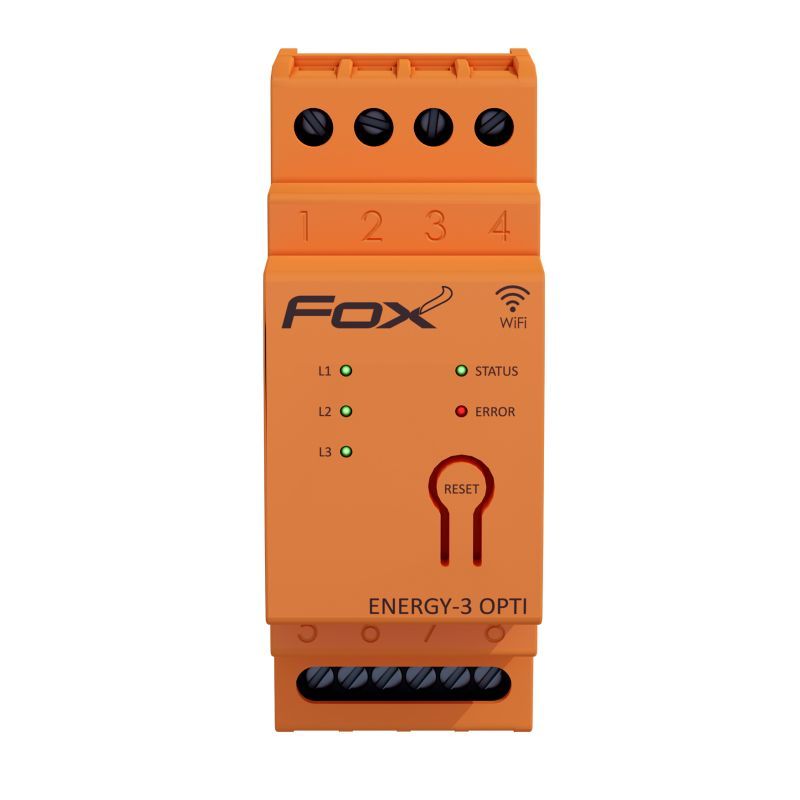

3-phase energy consumption monitor wi-fi - Energy-3-OPTI-40

3-phase energy consumption monitor wi-fi - Energy-3-OPTI-40

Wi-MEF-3-OPT-40, 5902431676234

Product description

With internal antenna.
Measuring range up to 40 A.
With 40 A transformers.
3-phase, 2-way, 4-quadrant electricity consumption monitor.
Perfect for monitoring photovoltaic installations, among other things

Fox - sterowanie Wi-Fi logo
Energy-3-OPTI-40 allows you to record electricity consumption and monitor important network parameters - voltage, current, power, energy consumption. Access to the data is possible directly from the application or via a web browser.

Ikony funkcje systemu FOX
Access to data using the application or via a web browser
Ikony funkcje systemu FOX
Remote access via Wi-Fi and F&F Cloud
Ikony funkcje systemu FOX
Monitoring of electrical network parameters


Application

  • Monitoring of energy consumption in domestic installations;
  • Ongoing measurement of power consumption and values of currents and voltages;
  • Use of recorded measurements to detect exceedances in voltage levels or power consumption;
  • Controlling energy production in photovoltaic installations;
  • Metering of heat pumps.
Energy 3 - monitor parametrów sieci elektrycznej


Properties

  • 3-phase, 2-way, 4-quadrant electricity consumption monitor, perfect for monitoring photovoltaic installations, among other things;
  • Monitoring of all relevant electrical network parameters;
  • Recording of average, minimum and maximum values;
  • Non-invasive installation using miniature (26×26×40 mm) current transformers;
  • Measuring range up to 40 A, suitable for domestic installations;
  • High measurement accuracy;
  • Access to measurement history via app or web browser;
  • Communication via home Wi-Fi network and remote access via the F&F Polish cloud;
  • Free mobile apps for Android and iOS;
  • Fully Polish solution focused on security and user privacy;
  • No hidden running costs and guaranteed long-term product support;
  • Mounting in a distribution box (DIN rail);
  • Including 3 current transformers.

Miniature, open-ended current transformers are supplied with the unit. No interference with the current leads is required to clip them onto the measured leads, but special attention must be paid to the way the lead is passed through the transformer and to the connection of the secondary side of the transformer to the device.



Przekładnik do Energy 3
Miniature current transformer to be fastened on the measured conductors.




Energy 3 - ekrany z pomiarem

Aplikacja FOX - pomiary
Aplikacja FOX - pomiary

Aplikacja FOX - pomiary
Aplikacja FOX - pomiary

FOX - Wi-Fi control system

Easy to install and rich in possibilities, wireless home automation system.


Application for Android devices
App for iOS devices



Power supply voltage3× 230/400 V AC (-25%÷15%)
Frequency50÷60 Hz
Installation3-phase, 4-wire
Accuracy - meter1%
Accuracy - measuring transformers0,5%
Transformer parameters - primary current40 A
Transformer parameters - secondary current30 mA
Transformer parameters - cable diameter≤10 mm
Meter constant1000 imp/kWh
Humidity (non-condensing)≤ 90%
Radio frequency2,4 GHz
TransmissionWI-FI
Radio power (IEEE 802.11n)≤ 20 dBm
Receiver sensitivity-98 dBm
Terminal2.5 mm² screw terminals (cord); 4.0 mm² screw terminals (wire)
Tightening torque0,5 Nm
Power consumption≤ 2 W
Working temperature-20÷50°C
Dimensions2 modules (35 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20
