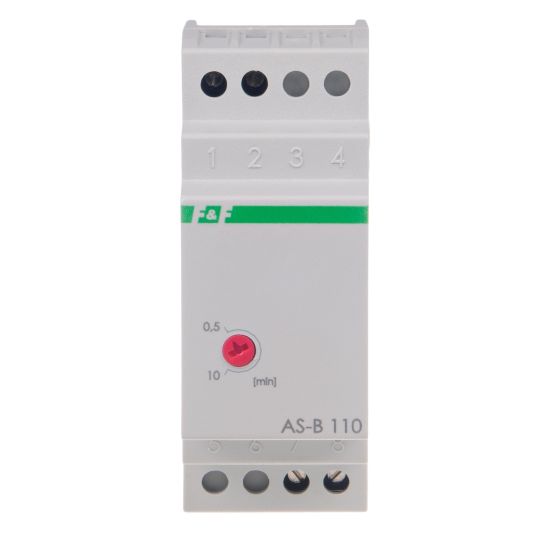

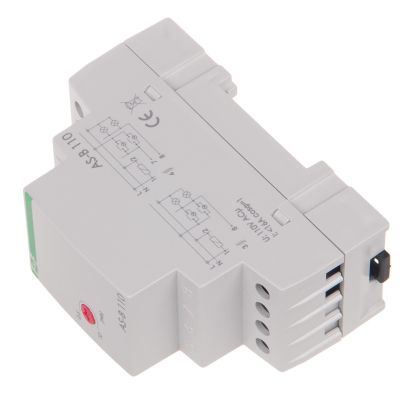

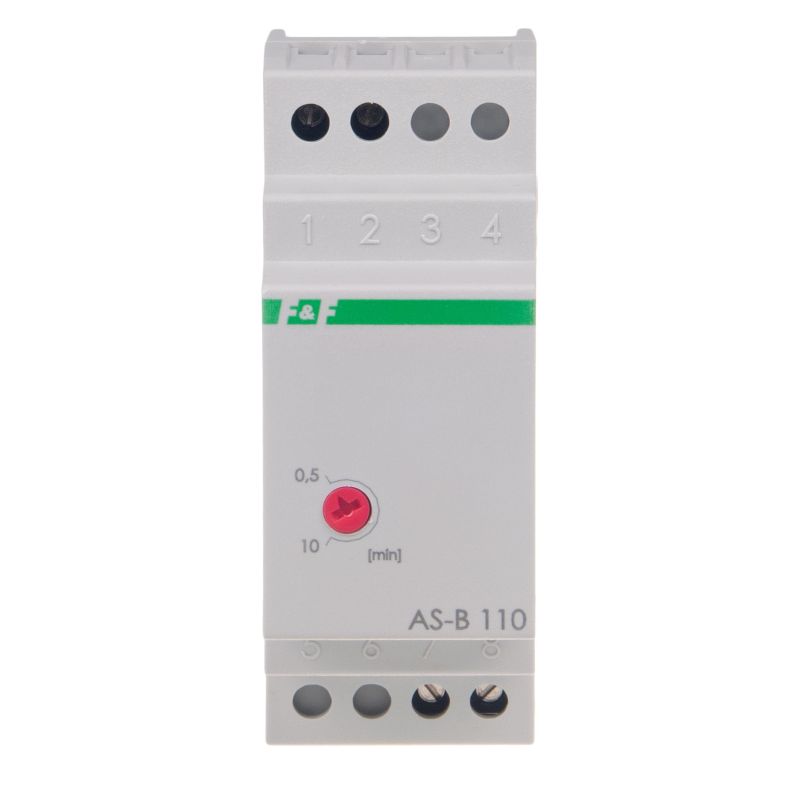

Staircase timer AS-B 110 110 V
For 35mm rail. 16A.
The automatic staircase switch (timer) is used to keep the lighting in corridors, staircases or other objects on for a specific period of time, after which the lighting will be switched off automatically.
Operation
When activated by a momentary (bell) switch, the automatic staircase lighting device maintains the lighting for the time set by the potentiometer (from 0.5 min. to 10 min.). After the preset time has elapsed, the lighting is switched off automatically.
After the lighting is switched off, it can be switched on again.
ATTENTION!
The AS-B 220 can be used with illuminated switches.
ATTENTION!
AS-B 24 cannot be used with illuminated switches.
ATTENTION!
Special versions of the automatic staircase control for voltages other than those given in the technical data table are possible, e.g. 12V, 48V, 110V AC/DC or others.
Power table
The above data are indicative and will largely depend on the construction of a specific receiver (especially concerning LED bulbs, energy-saving lamps, electronic transformers and impulse power supplies), frequency of switching and operating conditions.
- Power supply voltage
- 110 V AC
- Maximum load current
- 10 A
- Delay of operation
- less than 1 s
- Switch off delay - adjustable
- 0,5 ÷ 10 min
- Terminal
- pluggable terminal blocks 2,5 mm²
- Power consumption
- 1,2 W
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 2 modules (35 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
