Staircase timer ASO-220 230 V

View larger

Display all pictures

Product
Data sheet
Scheme
Tips
Download

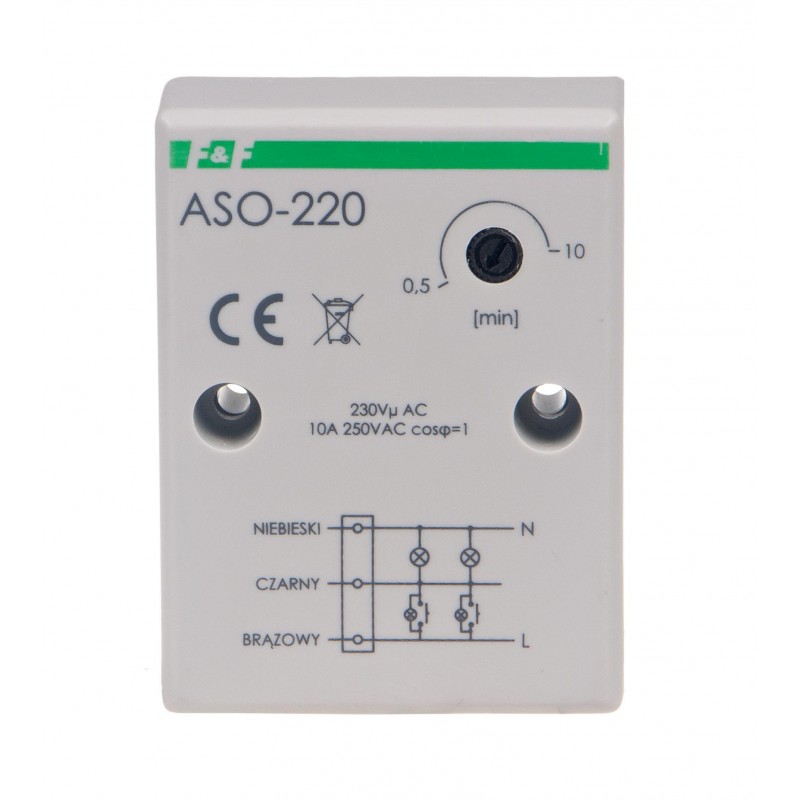

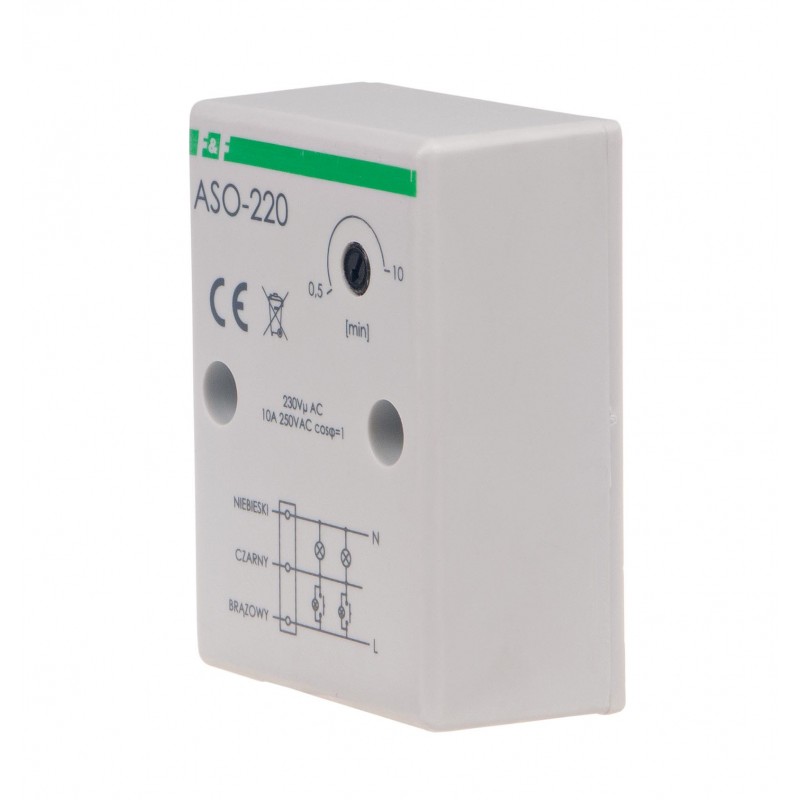

Staircase timer ASO-220 230 V

Reference: ASO-220, EAN13: 5908312592013

Product description

Staircase timer serves to keep switched-ON lighting of staircase, corridor, or any other object for the set time and to switch-OFF this lighting automatically, upon elapse of this set time.
Supply 230V AC. With cable connection. 10 A.

Functioning
Turned ON staircase timer supports the lighting during set time by potentiometer (from 0,5 min. to 10 min.). After passage of set time timer will switch OFF the lighting automatically. After switching OFF the lighting there is possibility to switch it ON again.

Attention!
ASO-220 is adapted to co-operate with pushbuttons equipped with neon lamp..

Attention!
ASO-24 is not compatible with pushbuttons equipped with neon lamp.

Attention!
There is possibility of a special implementation of automatic voltage zmierzchowych other than those indicated in the table of technical data, such as 12 V, 24 V, 48 V and 110 V AC / DC and others.

Power supply voltage	230 V AC
Maximum AC-1 load current	10 A
The executive element	relay
Contact configuration	1 × NO
Separation of the contact	NO
Delay of operation	less than 1 s
Switch off delay - adjustable	0,5 ÷ 10 min
the anti-blockade	NO
Switching off indication	NO
Cooperation with illuminated buttons	YES

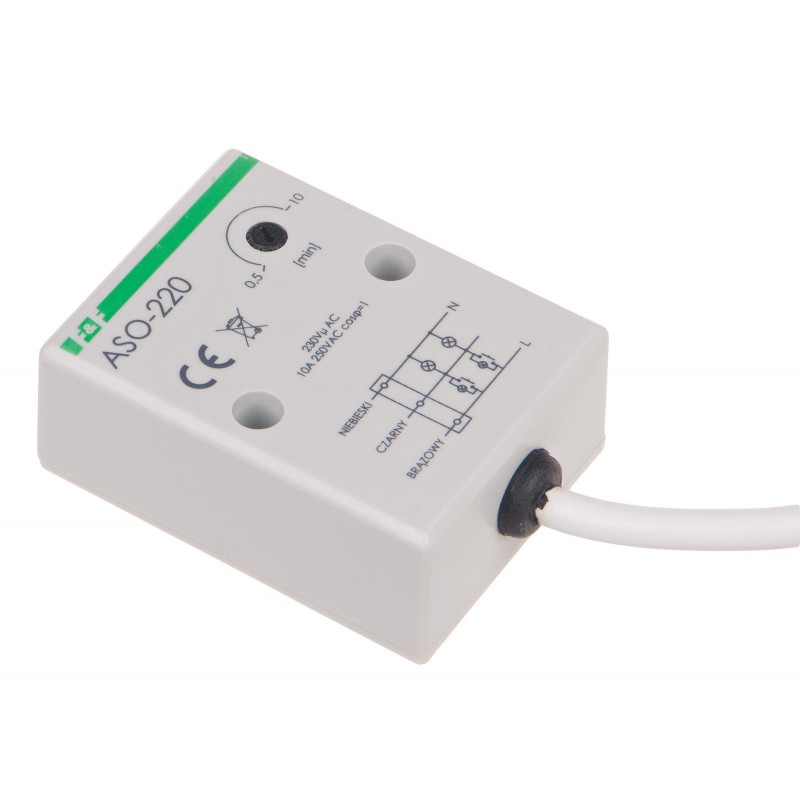

Terminal	OMY 3×0,75 mm², length: 0,45 m
Power consumption	0,56 W
Working temperature	-25 ÷ 50 °C
Dimensions	51×67×26 mm (± 1 mm)
Assembly	on wall
Ingress Protection Marking	IP40

ASO-220 manual (622.98k)

ASO-220 - outline dxf (89.44k)

AS ASO declaration CE 2024 (179.33k)

ASO-220 Bedienungsanleitung (632.31k)

Przyciski podświetlane
W przypadku podłączenia zbyt dużej ilości przycisków podświetlanych może dochodzić do samoistnego załączania oświetlenia lub załączenia oświetlenia na stałe.

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.

Źródła światła LED
W przypadku zastosowania źródeł światła LED i przycisków podświetlanych może wystąpić zjawisko niecałkowitego wyłączenia (np. żarzenie, miganie).

Przeciwblokada
Automat nie posiada funkcji przeciwblokady, a więc zablokowanie przycisku (np. zapałką) spowoduje załączenie oświetlenia na stałe (do momentu usunięcia zapałki).
