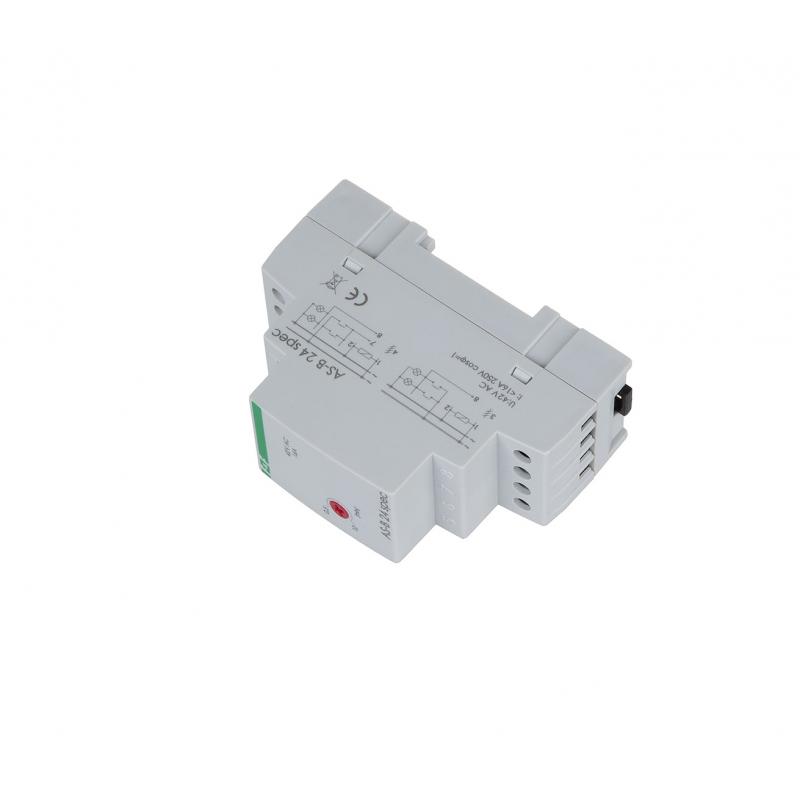

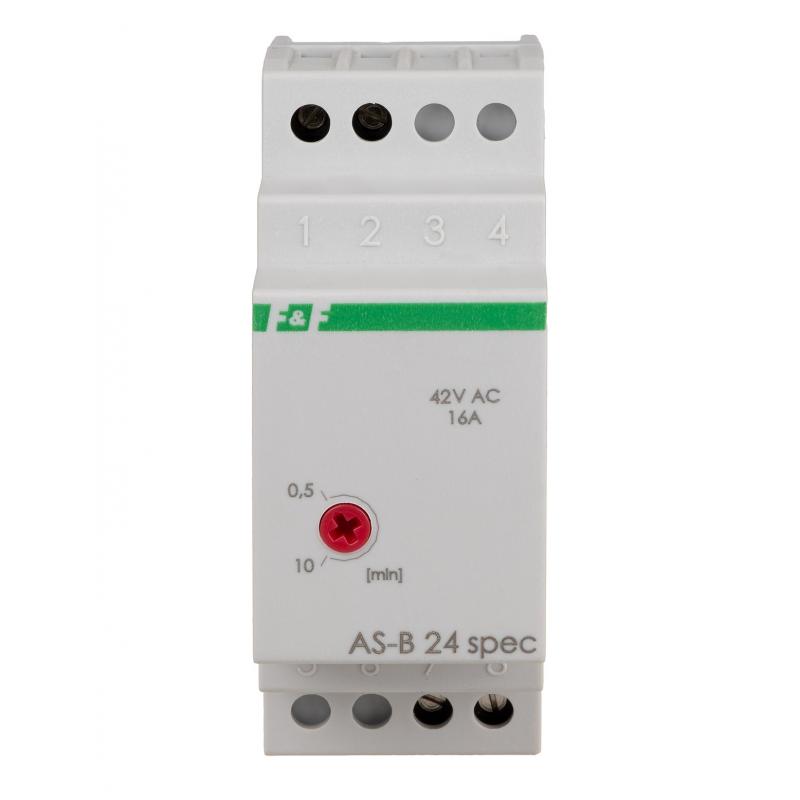

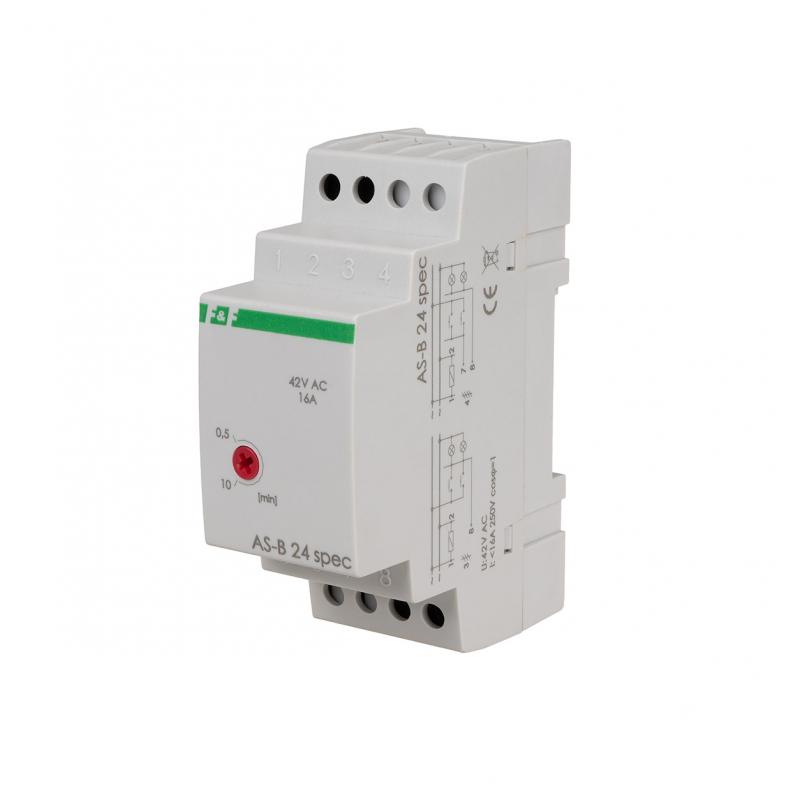

Staircase timer AS-B 42 42 V

Staircase timer AS-B 42 42 V View larger
Previous Next

Staircase timer AS-B 42 42 V

AS-B42, 5908312590095

Product description

Staircase timer serves to keep switched-ON lighting of staircase, corridor, or any other object for the set time and to switch-OFF this lighting automatically, upon elapse of this set time.
Supply 42 V AC. On rail 35 mm. 16 A.

Functioning
Turned ON staircase timer supports the lighting during set time by potentiometer (from 0,5min. to 10min.). After passage of set time timer will switch OFF the lighting automatically. After switching OFF the lighting there is possibility to switch it ON again.


Attention!
AS-B 42 is not compatible with pushbuttons equipped with neon lamp.

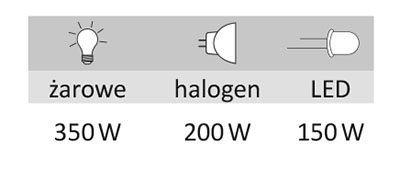

Power table

The above data are indicative and will heavily depend on the design of a specific receiver (that is especially important for LED bulbs, energy-saving lamps, electronic transformers and pulse power supply units), switching frequency and operating conditions.

Power supply voltage38÷46 V AC
Maximum AC-1 load current16 A
Delay of operationless than 1 s
Switch off delay - adjustable0,5 ÷ 10 min
Terminalpluggable terminal blocks 2,5 mm²
Power consumption1,2 W
Working temperature-25 ÷ 50 °C
Dimensions2 modules (35 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20

AS ASO declaration CE 2023 (179.33k)

AS-B 42 manual (650.13k)
