Staircase timer ASO-203 24 V

View larger

Display all pictures

Product
Data sheet
Scheme
Tips
Download

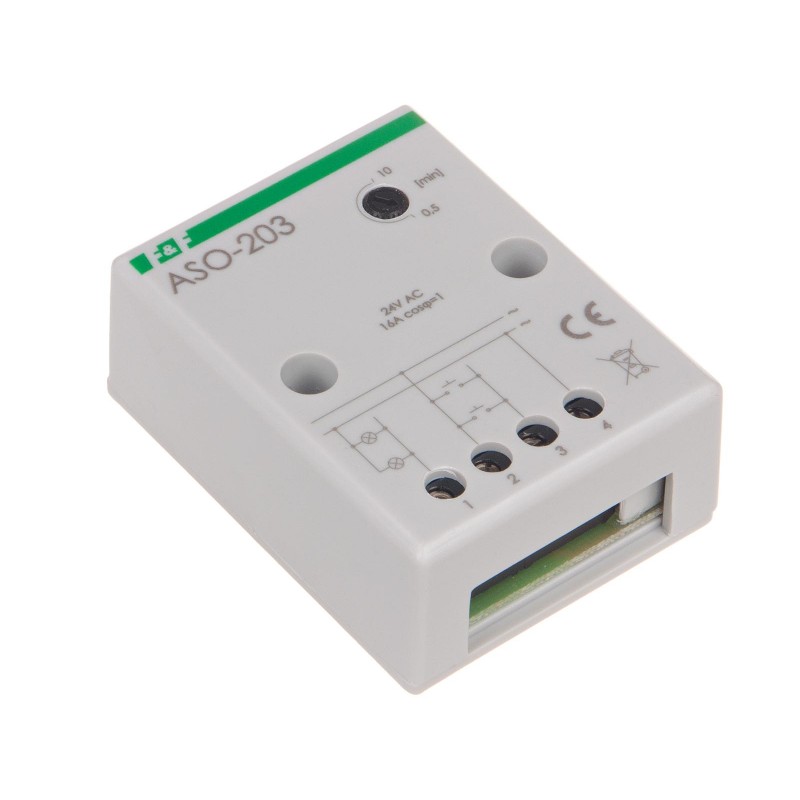

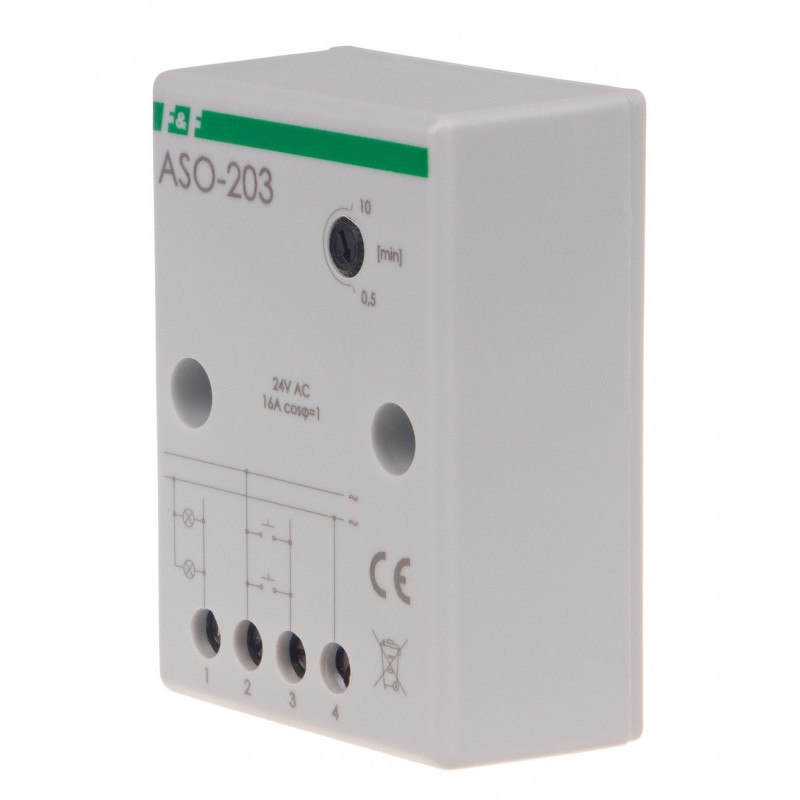

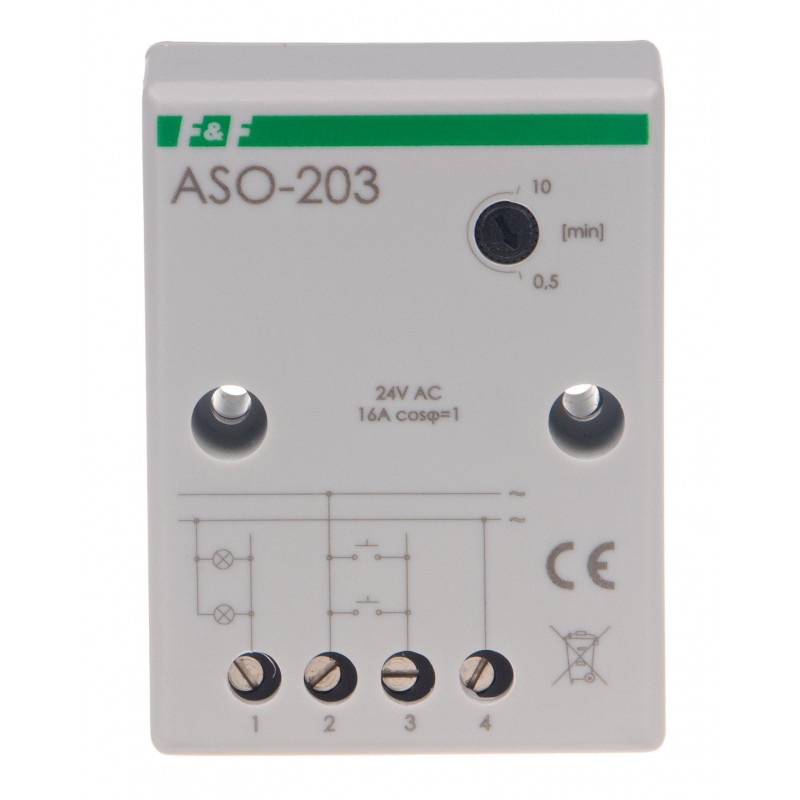

Staircase timer ASO-203 24 V

Reference: ASO-203, EAN13: 5908312592174

Product description

Staircase timer serves to keep switched-ON lighting of staircase, corridor, or any other object for the set time and to switch-OFF this lighting automatically, upon elapse of this set time.
With anti-blocking function. Supply 24 V AC. To substrate. 16 A.

Functioning
Turned ON staircase timer supports the lighting during set time by potentiometer (from 0,5min. to 10min.). After passage of set time timer will switch OFF the lighting automatically. After switching OFF the lighting there is possibility to switch it ON again.

Counter-blockade function does not allow for continuous illumination lighting, after blocking the switch, (eg by using the match). Appliance will measure the desired time and turns off the lighting. Re-attach the lighting can be made after the removal of the lock.

Attention!
ASO-202 is adapted to co-operate with pushbuttons equipped with neon lamp.

Attention!
ASO-203 is not compatible with pushbuttons equipped with neon lamp.

Attention!
There is possibility of a special implementation of automatic voltage zmierzchowych other than those indicated in the table of technical data, such as 12 V, 24 V, 48 V and 110 V AC/DC and others.

Power supply voltage	24 V AC/DC
Maximum AC-1 load current	16 A
The executive element	relay
Contact configuration	1 × NO
Separation of the contact	NO
Delay of operation	less than 1 s
Switch off delay - adjustable	0,5 ÷ 10 min
the anti-blockade	YES
Switching off indication	NO
Cooperation with illuminated buttons	NO
Terminal	pluggable terminal blocks 4,0 mm²
Tightening torque	0,5 Nm
Power consumption	0,56 W
Working temperature	-25 ÷ 50 °C
Dimensions	51×67×26 mm (± 1 mm)
Assembly	on wall
Ingress Protection Marking	IP20

ASO-203 manual (48.36k)

ASO-203 - outline dxf (88.89k)

AS ASO declaration CE 2024 (179.33k)

Przyciski podświetlane
Z uwagi na niskie napięcie zasilania nie należy stosować przycisków podświetlanych.

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.

Funkcja przeciwblokady
Funkcja przeciwblokady nie pozwala na ciągłe świecenie oświetlenia po zablokowaniu wyłącznika schodowego, tzn. po zablokowaniu wyłącznika (np. zapałką) automat odmierzy zadany czas i wyłączy oświetlenie. Ponowne załączenie oświetlenia może nastąpić po usunięciu blokady.
