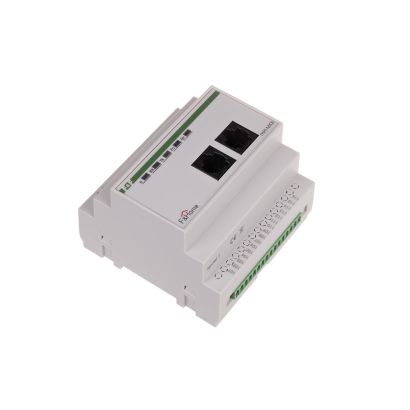

Sixteen-channel control module

Sixteen-channel control module

mH-MK

The mH-MK control module is a dedicated component of the F&Home system for the visualization of binary states on the mH-TS12 or mH-TS15 touch panel.

Signals applied to the input of the control module are displayed in the form of icons on touch panels in the following way: device on, device off, window open, window closed, etc.  The module is mounted in the switchgear (occupies a field of 5 modules) and is supplied with 24 V DC voltage. The module inputs are supplied with 24 V signals from sensors such as reed switches, inductive sensors, relays with a contact separated from the mains. The control is carried out fully on a 24 V low voltage line, which ensures full safety. The mH-MK module communicates with the system via the CAN line.


mH-MK manual (286.72k)
