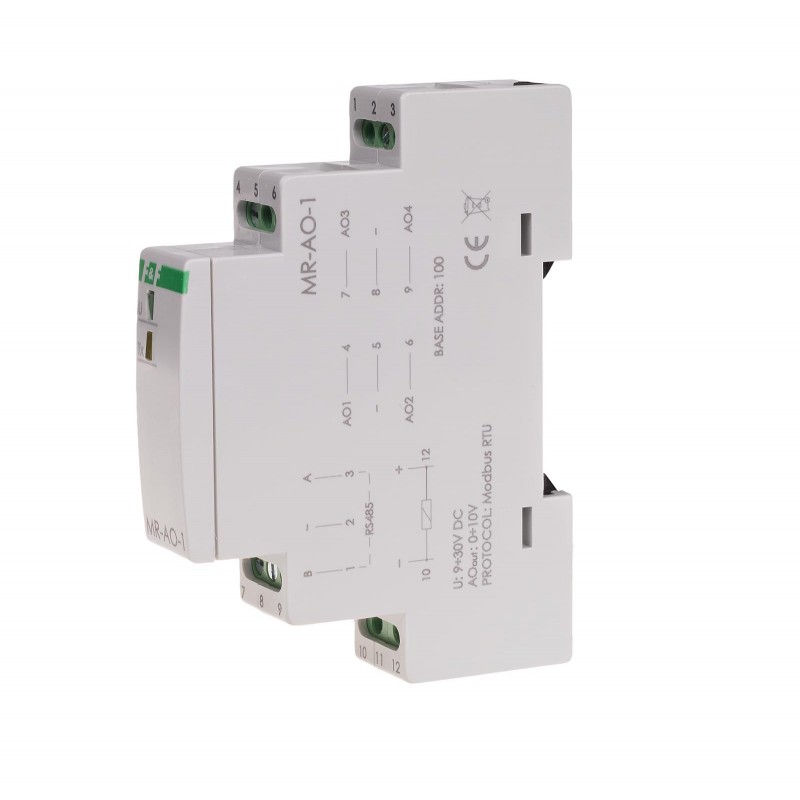

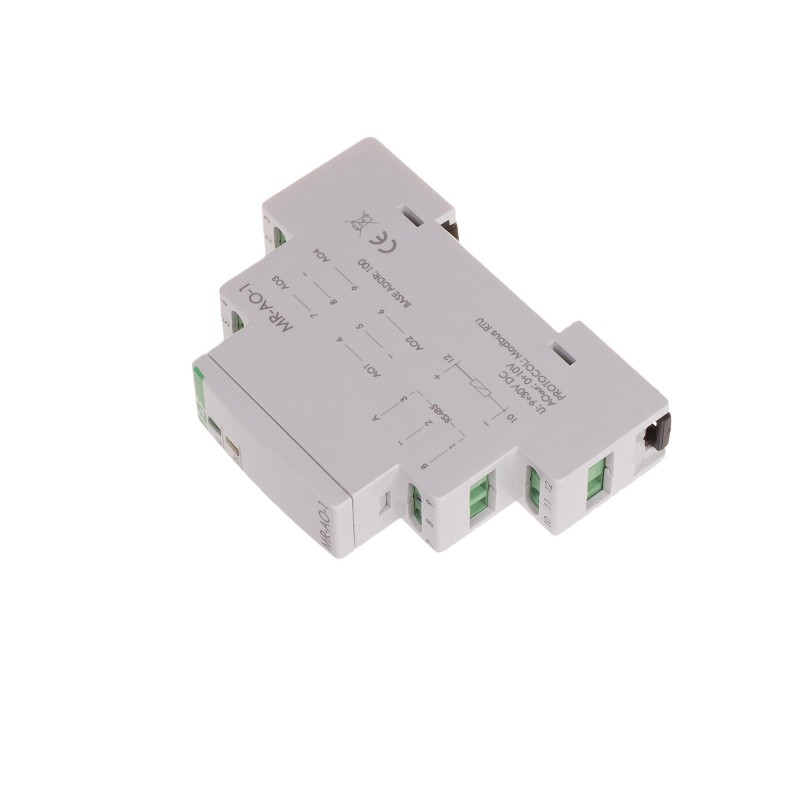

MR-AO-1 analogue output module

MAX-MR-AO-1, 5908312595236

A module with 4 analogue voltage outputs (0–10 V) featuring Modbus RTU communication.
4 independent 0–10 V voltage outputs.
Output value memory.
Communication interface: RS-485.

MR-AO-1 4-output analogue module, 0–10 V, Modbus RTU

Why choose the MR-AO-1?

The MR-AO-1 extends the system with four analogue voltage outputs controlled via RS-485 in accordance with the Modbus RTU protocol. The module is designed to expand the analogue outputs of PLCs or other compatible devices.

What does this mean in practice?

  • The module features 4 independent analogue voltage outputs.
  • The range of each output is 0–10 V.
  • The output values are set via Modbus RTU communication.
  • The module has a memory for output values.
  • The communication interface is RS-485.

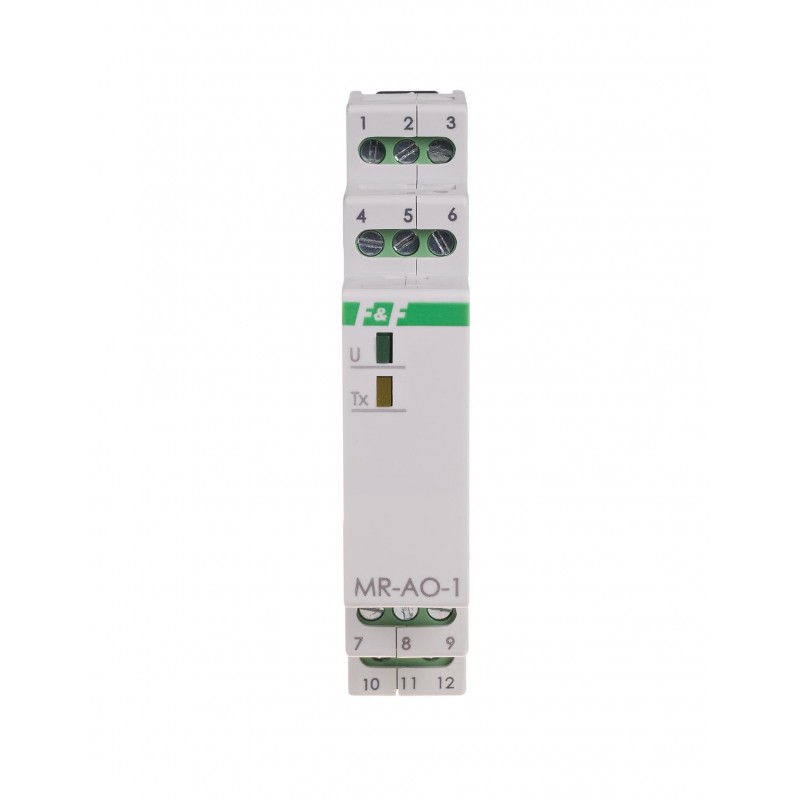

  • LEDs indicate power supply and data transmission.

Reset of communication settings
A DIP switch is located beneath the module’s front panel.
Details on resetting are available in the manual.

MB Config
The programme allows you to test-read values and configure the module’s communication and configuration parameters.



Communication between the module and a PC via theCN-USB-485 USB converter

The programme is free of charge.

MAX-MR-AO-1
output voltage setting accuracy
0,1 V
Maximum output current
40 mA
Power supply voltage
9÷30 V DC
Output voltage
0÷10 V

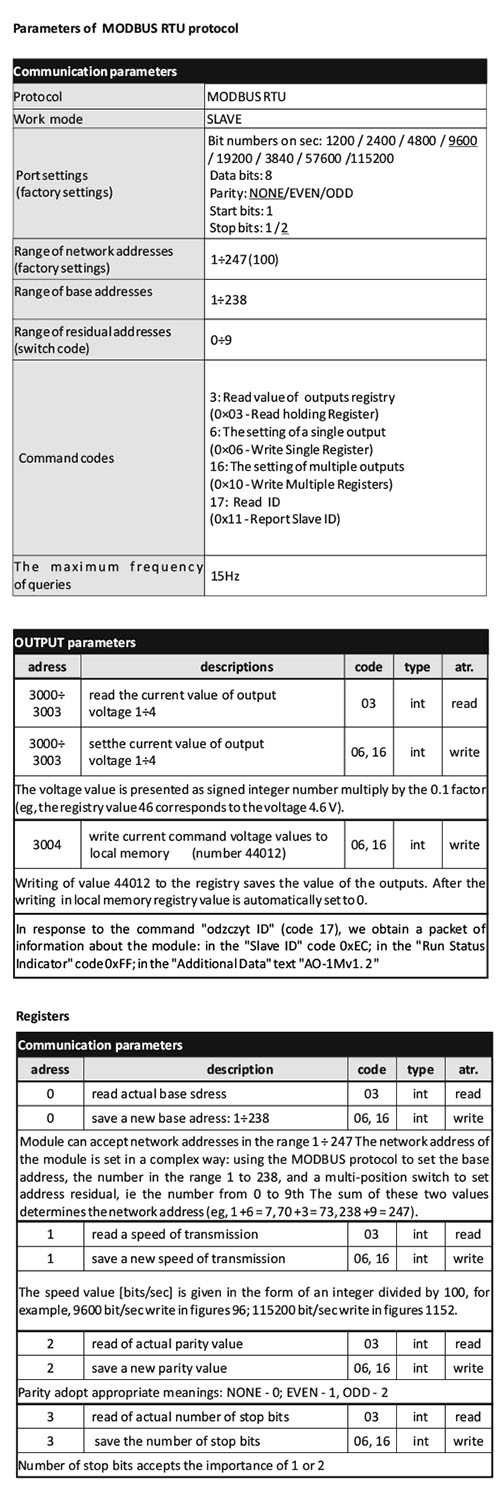

Communication protocol
MODBUS RTU
Stop bits
1/2
ports
RS-485
Baudrate
1200÷115200 bit/s
Data bits
8
Bits of parity
EVEN / ODD / NONE
Address
1÷247
Power consumption (max)
40 mA
Precision of the output signal
0,1 V
Output signal error
±0,02 V
Minimum load resistance
2 kΩ
Short-circuit current
40 mA
Number of analog outputs
4 (voltage)
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Working temperature
-20÷50°C
Dimensions
1 module (18 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
