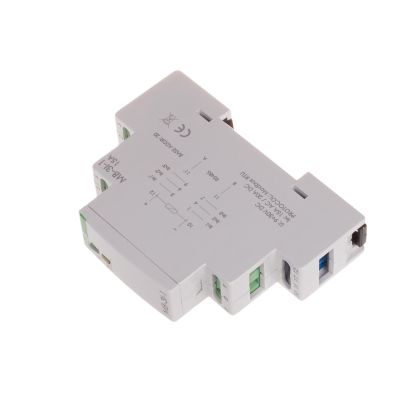

Current transducer MB-3I-1 15A
Three-channel AC/DC current transducer with Modbus RTU communication.
3 measurement inputs: 0–15 A AC / 0–20 A DC.
Direct measurement within the input range.
Compatible with current transformers with a secondary current of 15 A.
True RMS measurement for AC.
Communication interface: RS-485.
MB-3I-1 15A three-phase current transducer, Modbus RTU
Why choose the MB-3I-1 15A?
The MB-3I-1 15A enables current measurement across three channels and data exchange via RS-485 Modbus RTU. This version of the transducer is designed for direct measurement of 15 A AC / 20 A DC.
What does this mean in practice?
- The device has 3 independent current measurement channels.
- The range of each input is 0–15 A AC / 0–20 A DC.
- Direct measurement is possible within the input range.
- It is compatible with current transformers with a secondary current of 15 A.
- True RMS measurement is performed for AC current.
- Data from all channels is accessible via RS-485 Modbus RTU.
Reset communication settings
A DIP switch is located on the underside of the module.
Details on resetting are available in the manual.
MB Config
The programme allows you to test-read values and configure the transmitter’s communication and configuration parameters.
The module communicates with a PC via theCN-USB-485 USB converter.
The programme is free of charge.
- Power supply voltage
- 9÷30 V DC
- Communication protocol
- MODBUS RTU
- Stop bits
- 02-sty
- WE-WY breakthrough voltage
- 2,1 kV
- ports
- RS-485
- The type of work
- SLAVE
- Baudrate
- 1200÷115200 bit/s
- Data bits
- 8
- Bits of parity
- EVEN / ODD / NONE
- Address
- 1÷247
- Maximum measuring error
- ±0,5%
- Measurement range TrueRMS / maximum voltage
- 0÷15 A/285 V AC; 0÷20 A/400 V DC
- Power consumption (max)
- 50 mA
- Precision of reading the register
- 0,1 A
- Sampling frequency
- 10 Hz
- Relative air humidity (for 30
- 85%
- Terminal
- pluggable terminal blocks 2,5 mm²
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
Module in RS-485 network
Setting the network address
Reset communication settings
Communication parameters of MODBUS RTU protocol
