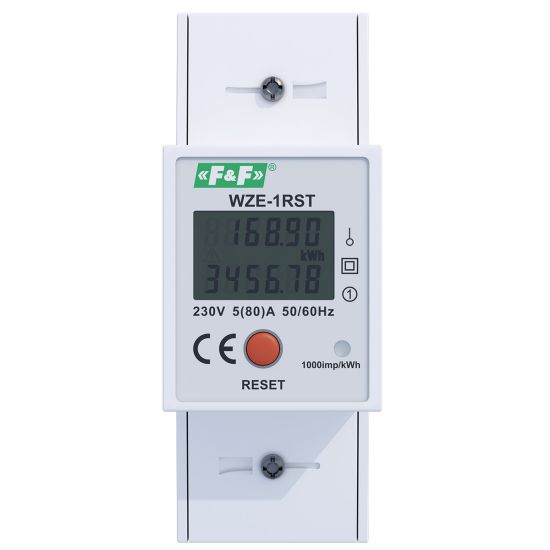

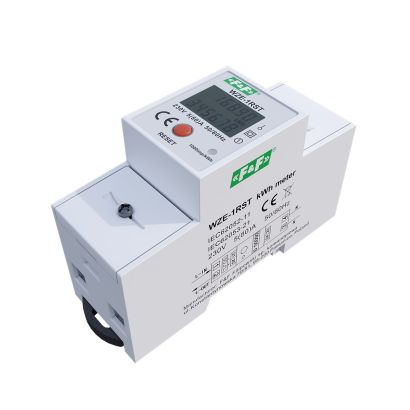

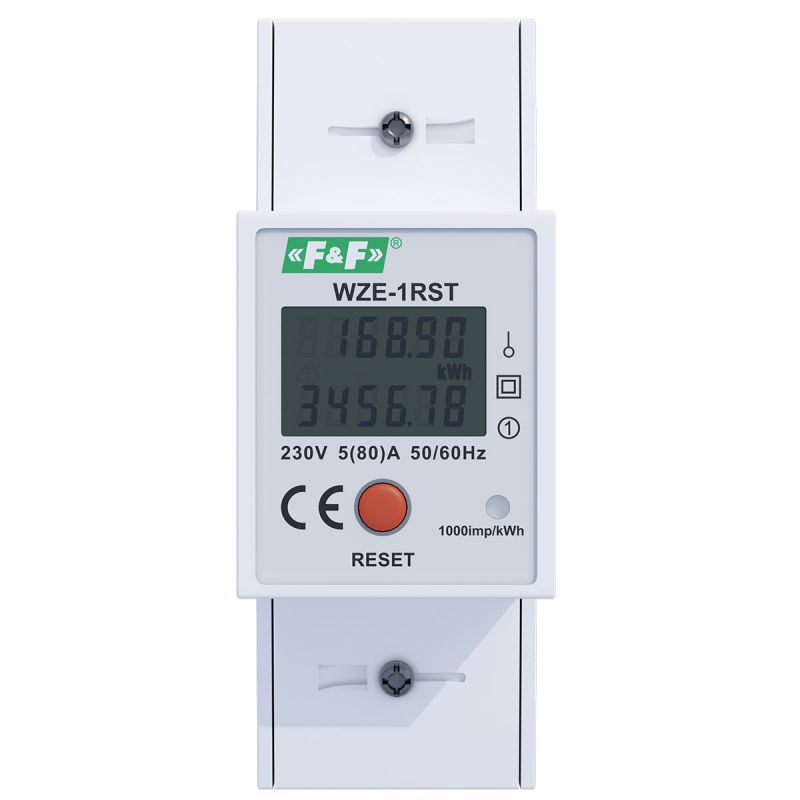

Electricity consumption meter 1-phase WZE-1RST
Single-phase electricity consumption meter with two energy consumption positions on the LCD display.
Option to reset the auxiliary meter status.
operationThe WZE-1 RST indicator is a static (electronic) device for measuring single-phase AC electricity consumption in a direct system. It is equipped with two simultaneously displayed energy consumption indicators. One shows the total energy consumption, and the other shows the energy consumption since the last meter reset.
A special electronic circuit, under the influence of the flowing current and applied voltage, generates pulses in proportion to the electricity consumed. The amount of energy consumed is shown on the meter display. In addition, energy consumption is signalled by a flashing red LED.
Resetting the auxiliary meter
The resettable active energy indicator can be reset by pressing and holding the "RESET" button located
on the front of the device for about 5 seconds. This will return the value displayed at the top of the LCD screen to its initial settings (00000.0) without changing the value of the main meter.
- Type
- single-phase
- Measurement
- Direct
- The minimum measured current
- 0,02 A
- Base current
- 5:00 AM
- Reference voltage
- 230 V AC, 50 Hz
- Maximum current
- 80 A
- Counter's own consumption
- 8 VA; 0,4 W
- Scope of indication of the abacus
- 0÷99999,9 kWh
- Counter constant
- 1000 imp/kWh
- Compatibility
- PN-EN 62052-11
- LCD backlight
- YES
- Reading signaling
- LED red
- Pulse output SO + SO-
- open collector
- Connection voltage SO + SO-
- maks. 27 V DC
- Connection current SO + SO-
- maks. 20 mA
- Pulse time SO + SO-
- 90 ms
- Accuracy class
- 1
- Cable length SO + SO-
- max. 20 m
- Terminal
- zaciski śrubowe 16 mm²
- Working temperature
- -25 ÷ 65°C
- Dimensions
- 2 modules (35 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- (wewnątrz pomieszczeń) IP51
- Measuring system
- single-phase
