Energy meter LE-03d CT400
Three-phase energy meter. To co-operation with a current transformers. Maximum current 100A.
LE-03 CT meters are intended for current transformers with a secondary current of 5A. Maximum measured current of the system is specified by the value of the primary current while using the current transformer.
LE-03 CT meters are intended for current transformers with a secondary current of 5A. Maximum measured current of the system is specified by the value of the primary current while using the current transformer.
In the case of transformers with dedicated operating parameters, the meters display the actual value of the power consumed by the system.
Functioning
A special arrangement under the influence of the electronic flow of current and applied voltage in each phase generates pulses in proportion to the amount of electricity charged in that phase. Consumption of energy in the phase is indicated by flashing the corresponding LED (L1, L2, L3). The sum of the three phases of pulses indicated by flashing LED (800imp/kWh) is converted to energy, taken in the entire three-phase system and its value is determined by the segment LCD display.
Attention!
Meters are equipped with SO+ -SO- pulse outputs. It enables the connection of other pulse device (SO), reading the pulses generated by the meter.
The connection of additional device is not required for the proper operation of a meter.
- Type
- three-phase
- Measurement
- Semi-direct
- The minimum measured current
- 0,04 A
- Base current
- 1,5 A
- Reference voltage
- 3×400 V+N
- Maximum current
- 3×5 A
- Counter's own consumption
- 10 VA; 2 W
- Scope of indication of the abacus
- 9999999 kWh
- Counter constant
- (3,33 Wh/imp) 300 imp/kWh
- Compatibility
- PN-EN 62052-11
- Communication protocol
- NONE
- Accuracy of measurement in accordance with IEC61036
- class 1
- LCD backlight
- NO
- Reading signaling
- LED red
- Pulse output SO + SO-
- open collector
- Connection voltage SO + SO-
- max. 30 V DC
- Connection current SO + SO-
- max. 27 mA
- Pulse time SO + SO-
- 35 ms
- Accuracy class
- 1
- Power consumption indication
- 3×LED red
- Transformer type
- 400/5 A
- Terminal
- pluggable terminal blocks 25 mm²
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 7 modules (122 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
- Measuring system
- 3-phase 4-wire
- 2-way energy measurement
- NO
| Produkt | Licznik 1-fazowy |
Licznik 3-fazowy |
Wskaźnik 1-fazowy |
Wskaźnik 3-fazowy |
MID | Pomiar pośredni |
Pomiar półpośredni |
2-kierunkowy | Pomiar dodatkowych parametrów | Komunikacja | Podświetlenie liczydła |
Kasowanie | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Energia czynna pobrana | Energia czynna oddana | Energia bierna | Energia bierna pobrana | Energia bierna oddana | Moc czynna, bierna, pozorna | Zapotrzebowanie na moc | Napięcie | Prąd | Częstotliwość | Współczynnik mocy | Ethernet | Modbus | M-Bus | |||||||||||
| LE-01 | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-01d | ● | – | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-01DC | ● | – | – | – | – | – | bocznik | ● | ● | ● | – | – | – | – | ● | ● | ● | – | – | – | ● | – | ● | – |

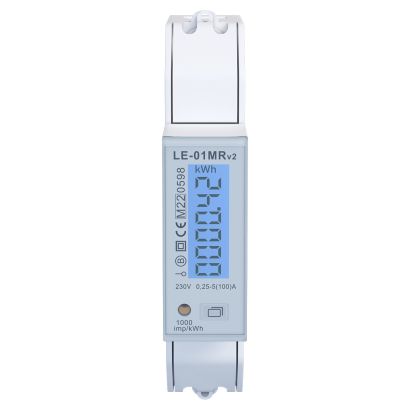

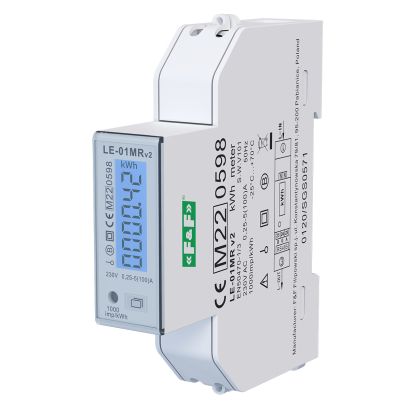

| LE-01M | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | ● | – | – | – |
