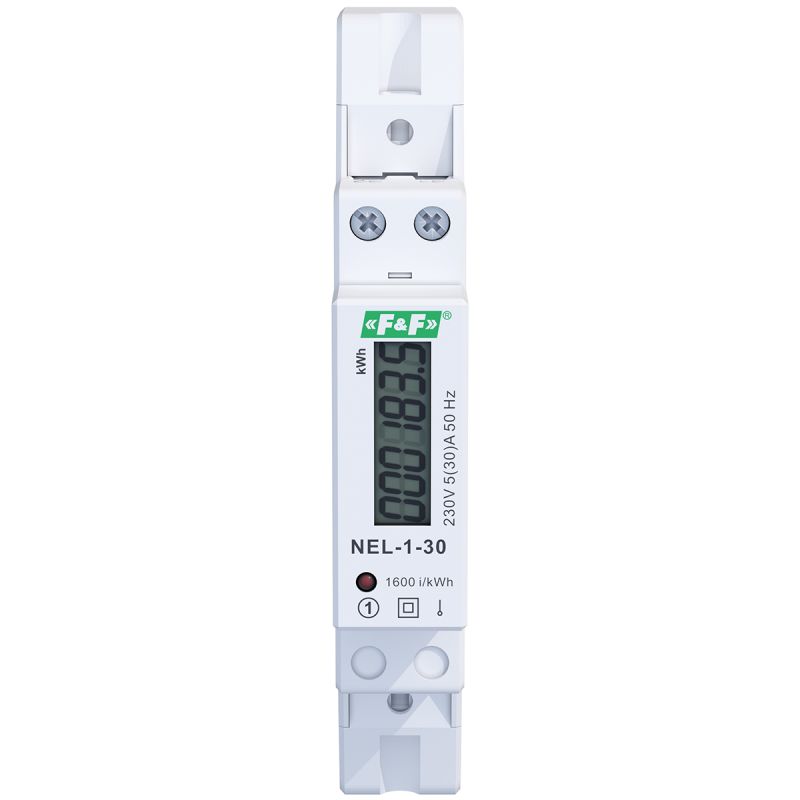

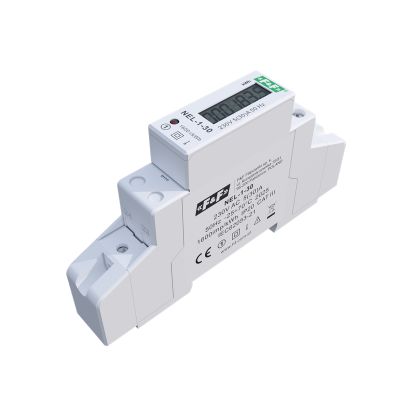

Energy consumption indicator NEL-01-30
The NEL-01-30 is a static (electronic), direct-acting single-phase AC electricity consumption indicator.
Operation
Under the influence of the flowing current and applied voltage, a special electronic circuit generates impulses in proportion to the amount of electricity consumed. Energy consumption is indicated by flashing LEDs. The number of pulses is converted into consumed energy and its value is indicated by a segmented LCD display. The digits after the decimal point represent tenths of a kWh (0.1 kWh).
- Type
- single-phase
- Measurement
- Direct
- Installation
- 1-fazowa, 2-przewodowa
- The minimum measured current
- 0,02 A
- Base current
- 5:00 AM
- Reference voltage
- 230 V AC, 50 Hz
- Maximum current
- 30 A
- Counter's own consumption
- 8 VA; 0,4 W
- Scope of indication of the abacus
- 0÷999999,9 kWh
- Counter constant
- (0,625 Wh/imp) 1600 imp/kWh
- Compatibility
- PN-EN 62052-11
- Accuracy of measurement in accordance with IEC62052-11, IEC62053-21
- class 1
- LCD backlight
- NO
- Reading signaling
- LED red
- Terminal
- pluggable terminal blocks 6,0 mm²
- Working temperature
- -25÷70°C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
- Measuring system
- single-phase
- 2-way energy measurement
- NO
