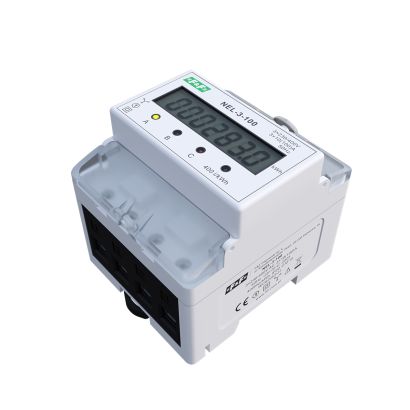

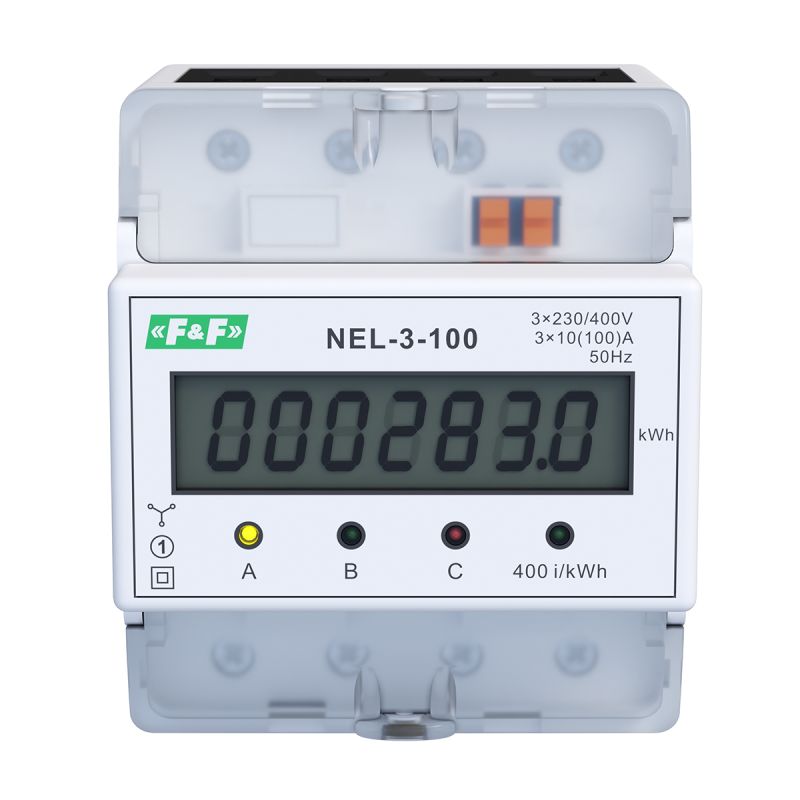

Energy consumption indicator NEL-03-100
The NEL-03-100 is a static (electronic), direct three-phase AC electricity consumption indicator.
Operation
Under the influence of the flowing current and applied voltage, a special electronic circuit generates pulses in proportion to the amount of electricity consumed. Energy consumption is indicated by flashing LEDs. The number of pulses is converted into consumed energy and its value is indicated by a segmented LCD display. The digits after the decimal point represent tenths of a kWh (0.1 kWh).
- Type
- three-phase
- Measurement
- Direct

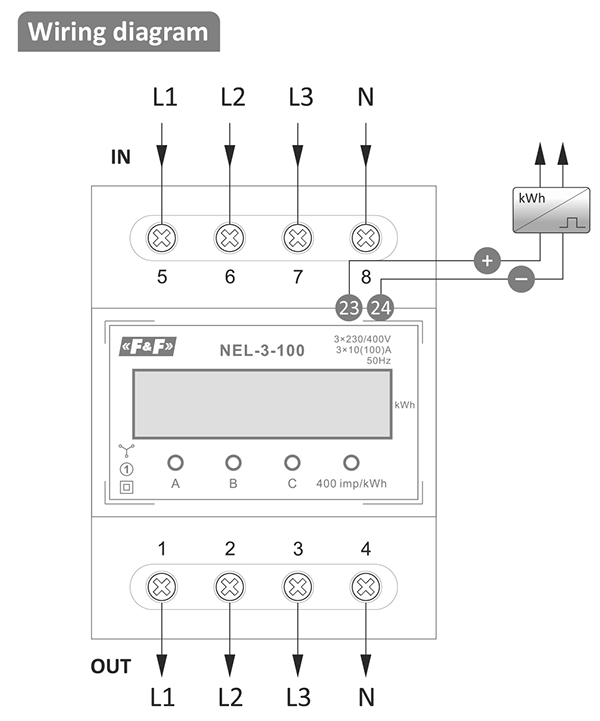

- Installation
- 3-phase, 4-wire
- The minimum measured current
- 0,04 A
- Base current
- 10:00 AM
- Reference voltage
- 3×230/400 V
- Maximum current
- 3×100 A
- Counter's own consumption
- 8 VA; 0,4 W
- Scope of indication of the abacus
- 0÷999999,9 kWh
- Counter constant
- 400 imp/kWh
- Compatibility
- PN-EN 62052-11
- Accuracy of measurement in accordance with IEC62052-11, IEC62053-21
- class 1
- LCD backlight
- NO
- Reading signaling
- LED red
- Terminal
- pluggable terminal blocks 25 mm²
- Working temperature
- -25÷70°C
- Dimensions
- 4,5 moduleu (75 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
- Measuring system
- 3-phase 4-wire
- 2-way energy measurement
- NO
