200 A current shunt

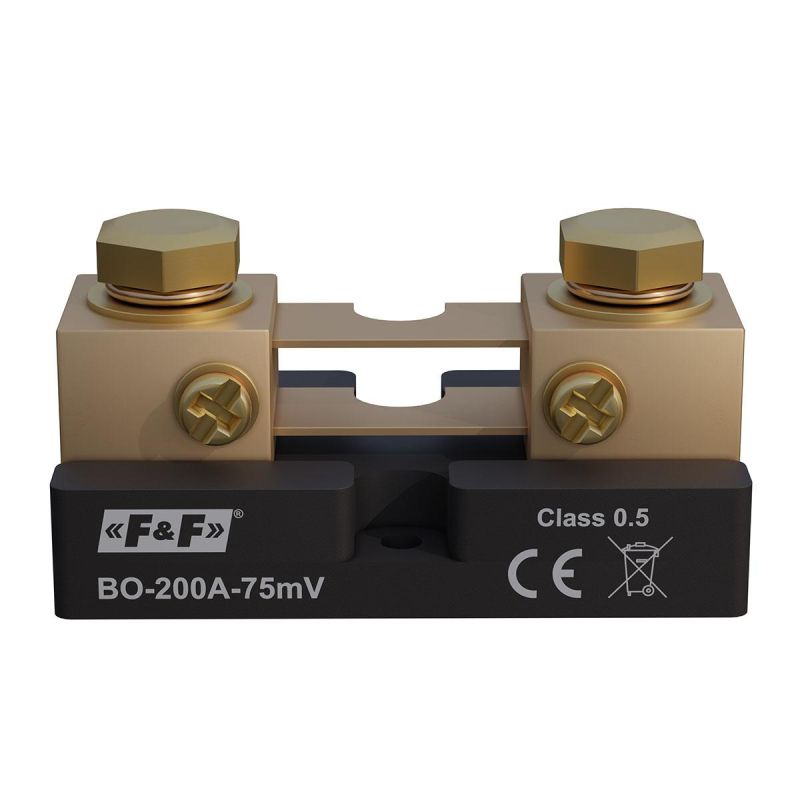

Current shunt.
The voltage drop across the shunt terminals is proportional to the current flowing through it. At the shunt’s rated current, the voltage drop is 75 mV. Shunts can be used in conjunction with dedicated energy meters (e.g. LE-01d) or other current meters (electronic or magnetoelectric).
- Output voltage
- 75 mV
- Accuracy class
- 0,5
- Rated current
- 100 A
- Screw terminals
- prądowe: 2× śruba M10×15; napięciowe: 2× śruba M5×8
- Napięcie probiercze
- 5 kV
- Dimensions
- 50×32×42 mm
- Assembly
- tablicowy, 2 wkręty 5 mm
- Ingress Protection Marking
- IP20
- Przeciążalność prądowa ciągła
- 120% In
- Przeciążalność prądowa krótkotrwała (5 s)
- 500% In
